WIRE CUT MACHINING SERVICES

Through us, we obtain precision and high-quality wire cutting machined parts. The advantage of wire cutting machining lies in its non-contact processing method, which can avoid mechanical stress on the workpiece, and can also process materials with extremely high hardness or brittleness, with high machining accuracy and good surface quality. ISO 9001:2015 certification
Start A New CNC Quote
All uploads are secure and confidential.
You are here: Home » Capabilities » Machining Services » Wire Edm

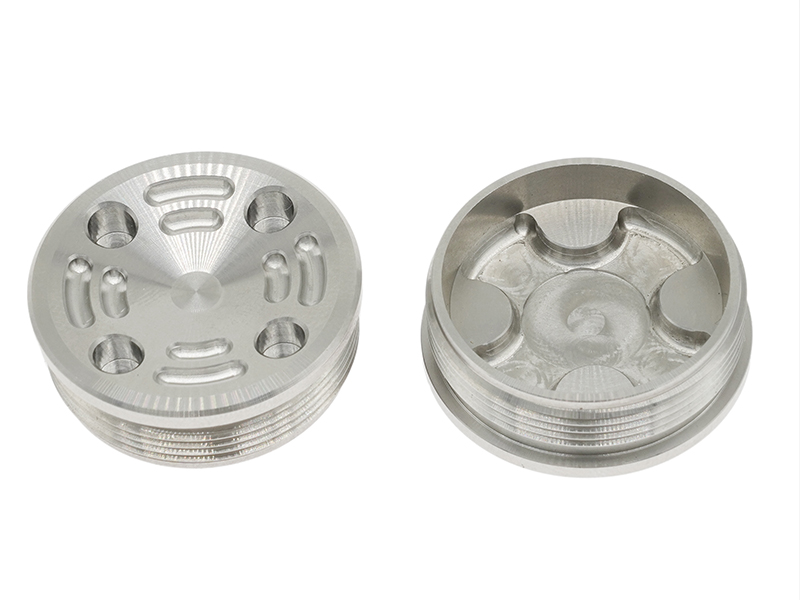

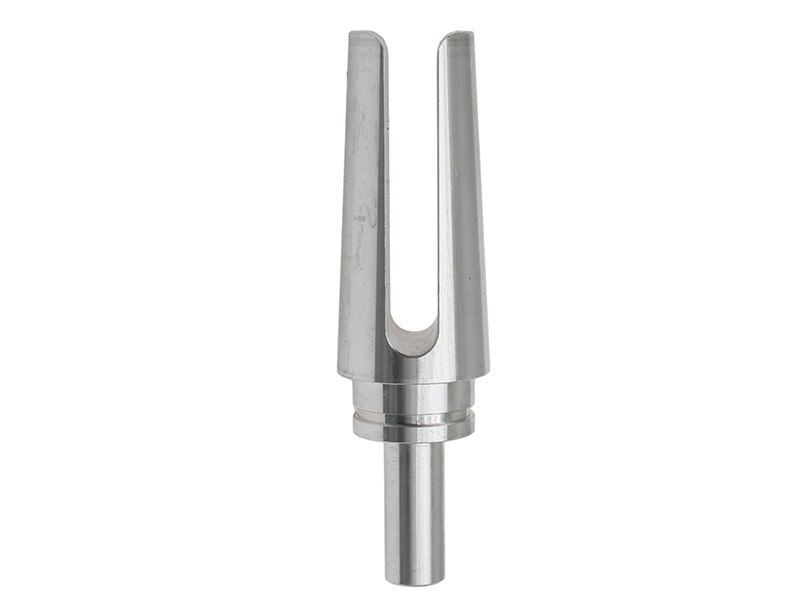

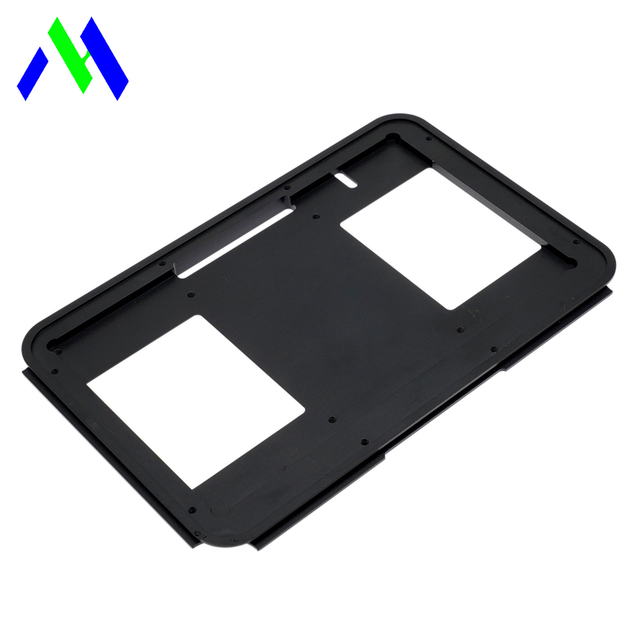

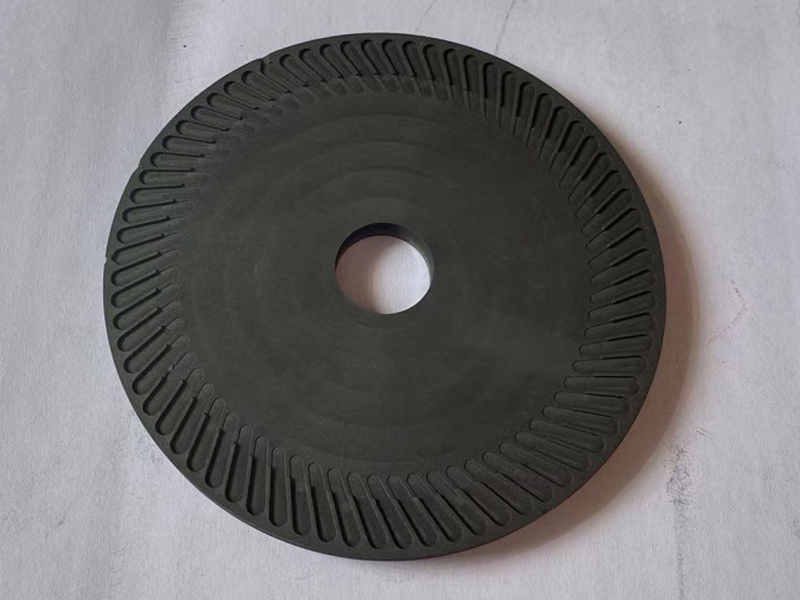

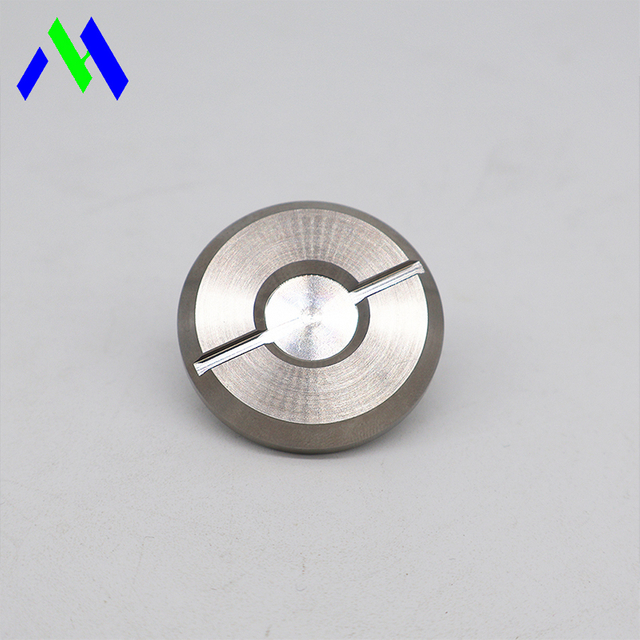

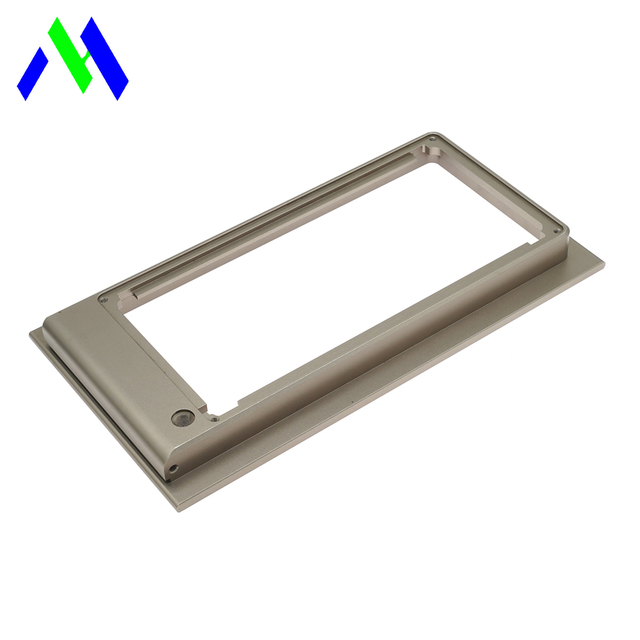

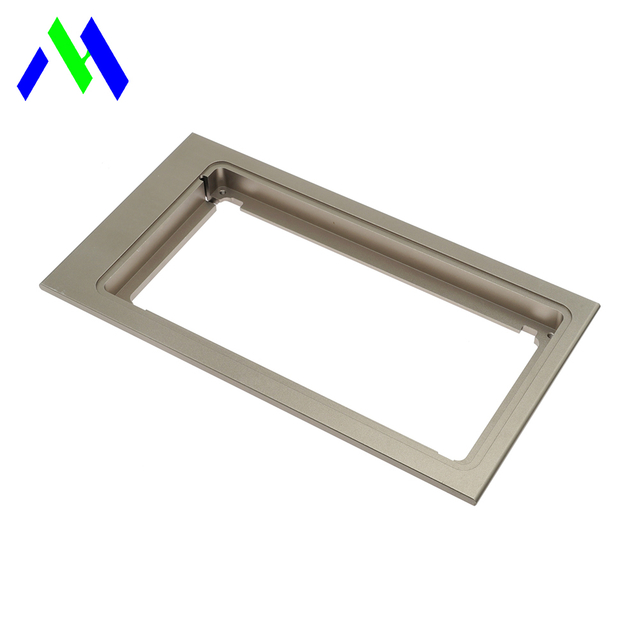

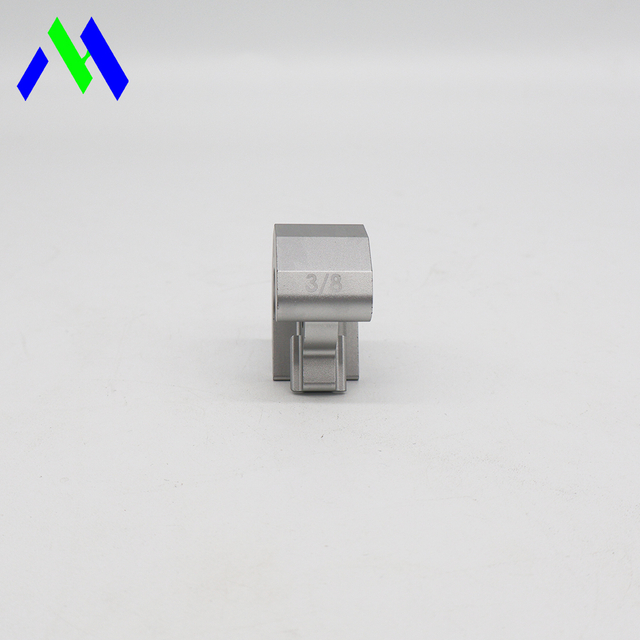

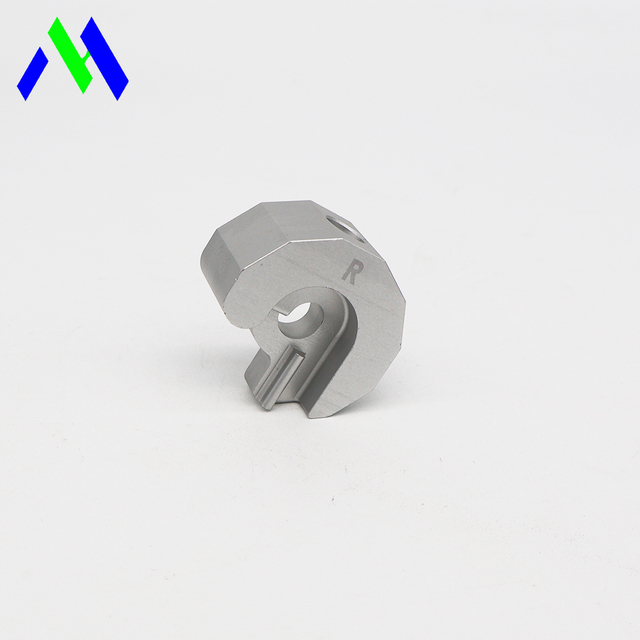

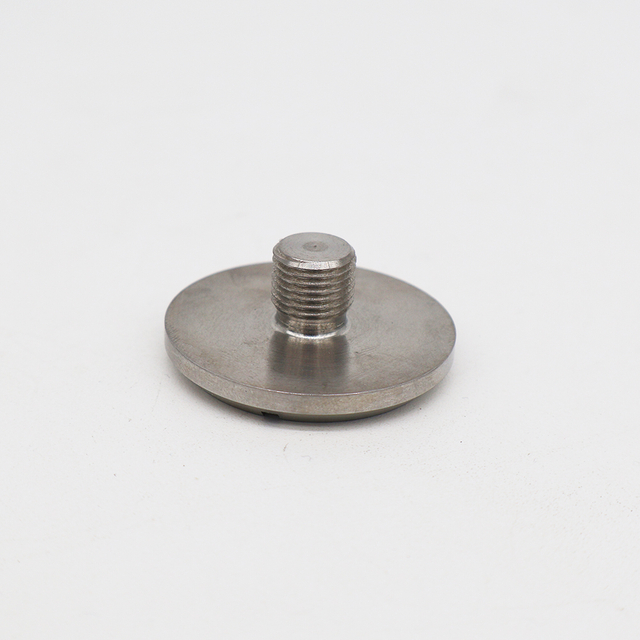

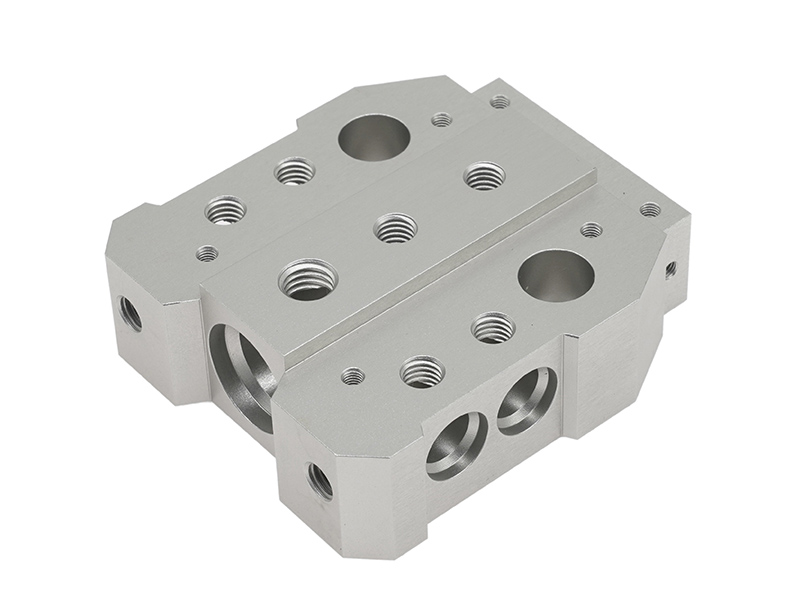

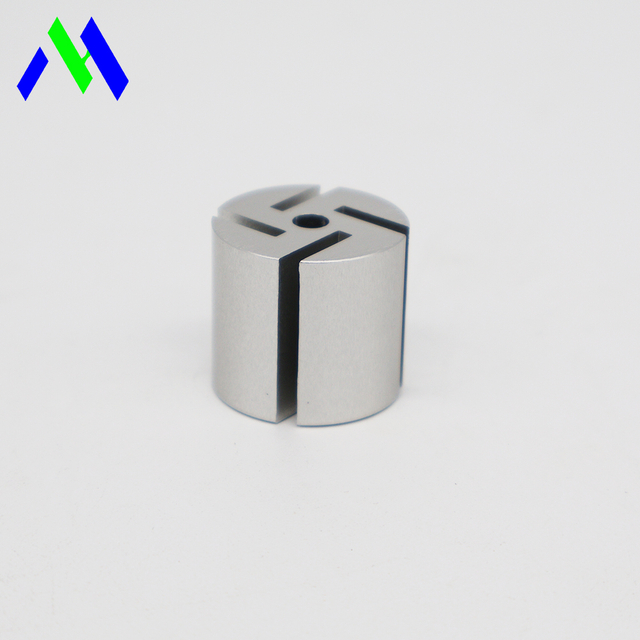

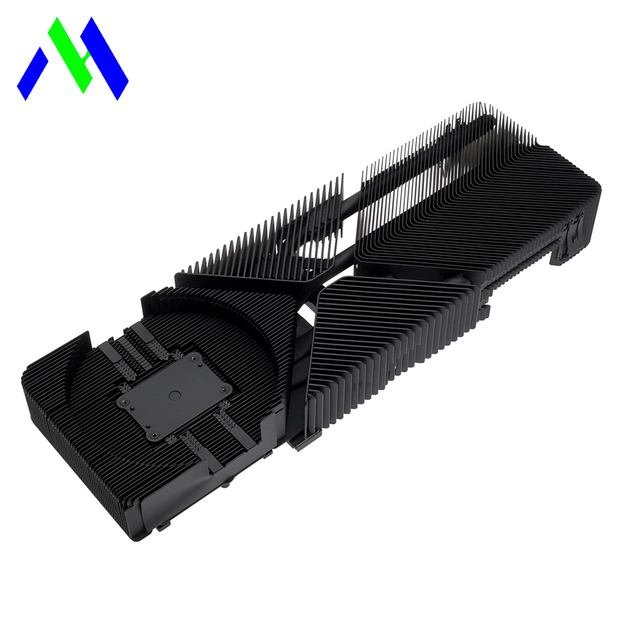

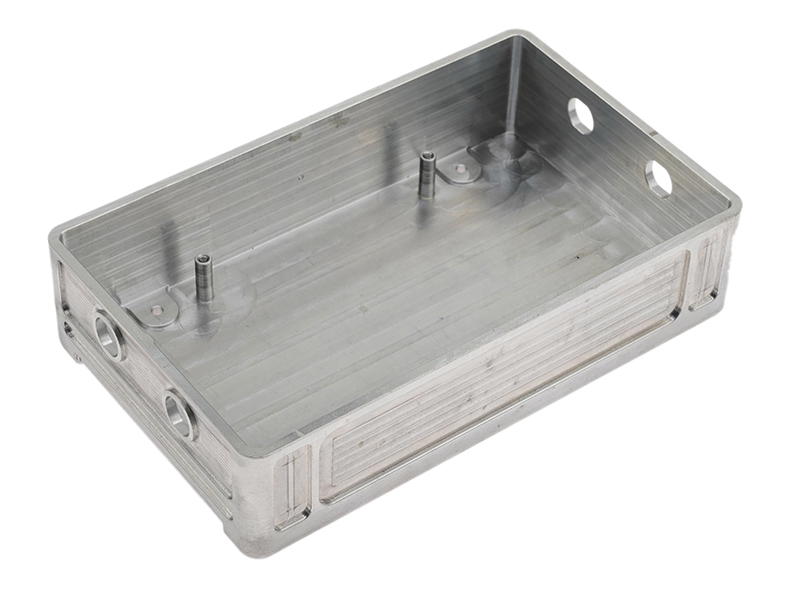

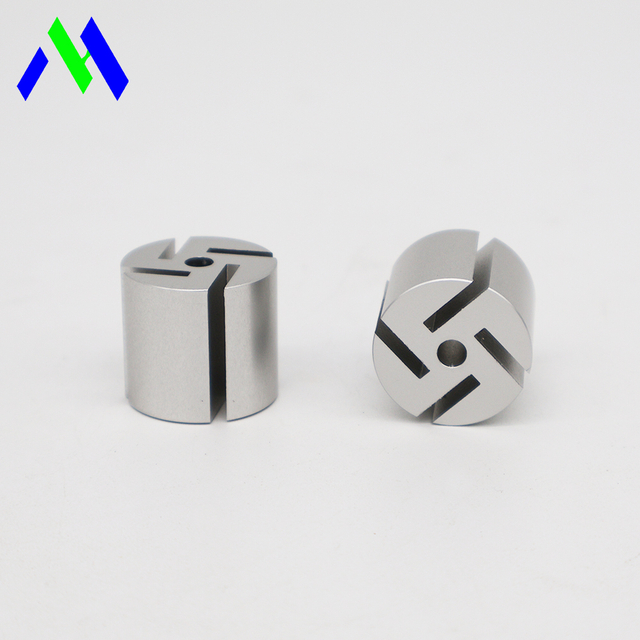

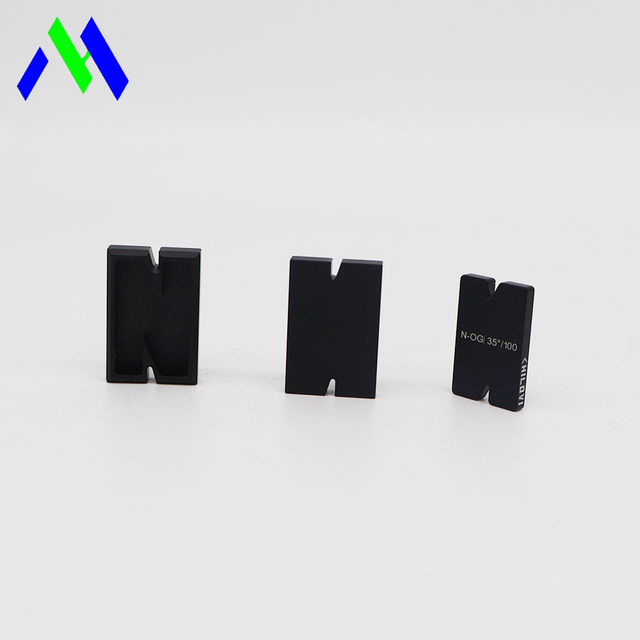

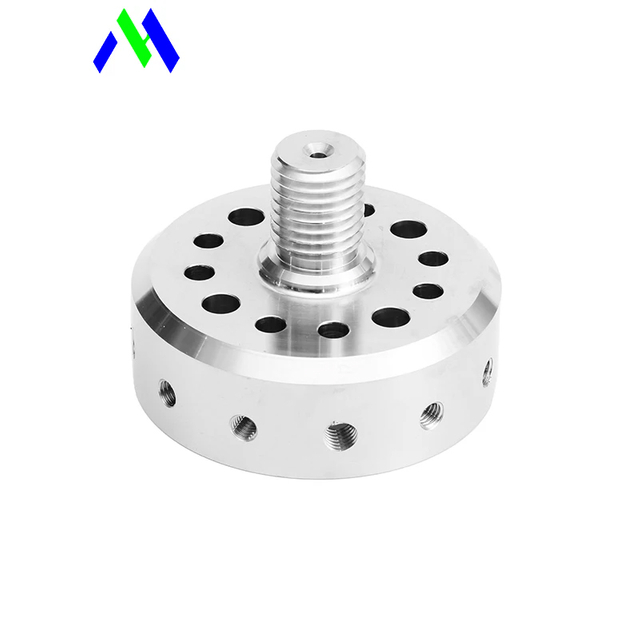

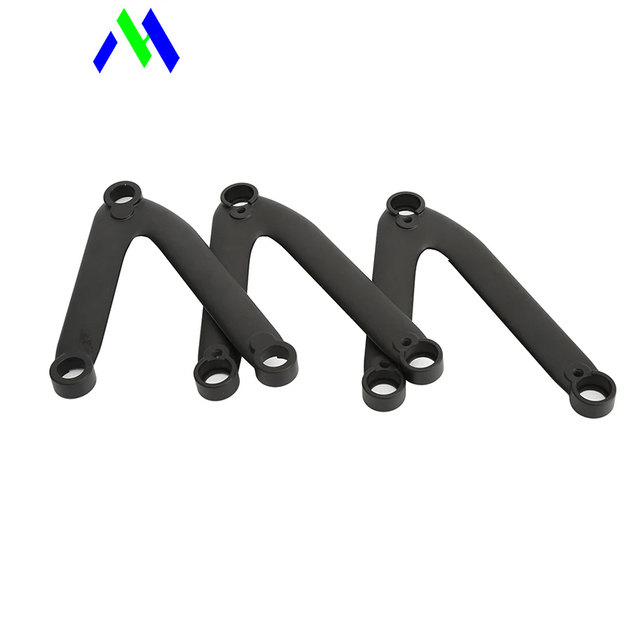

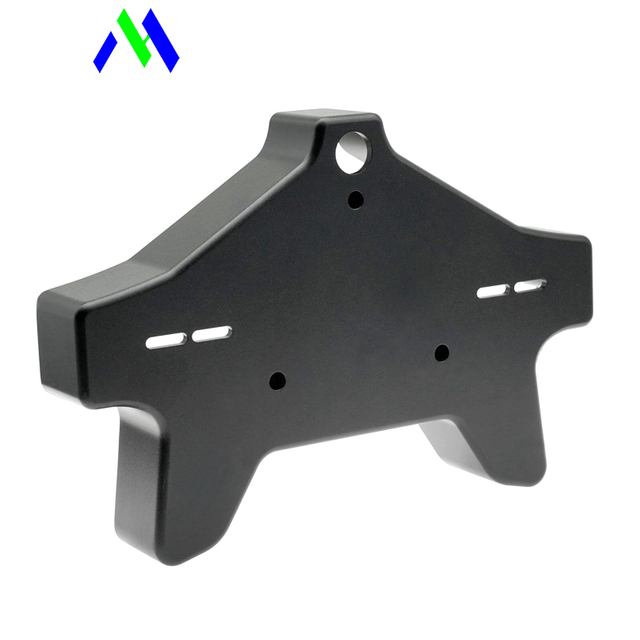

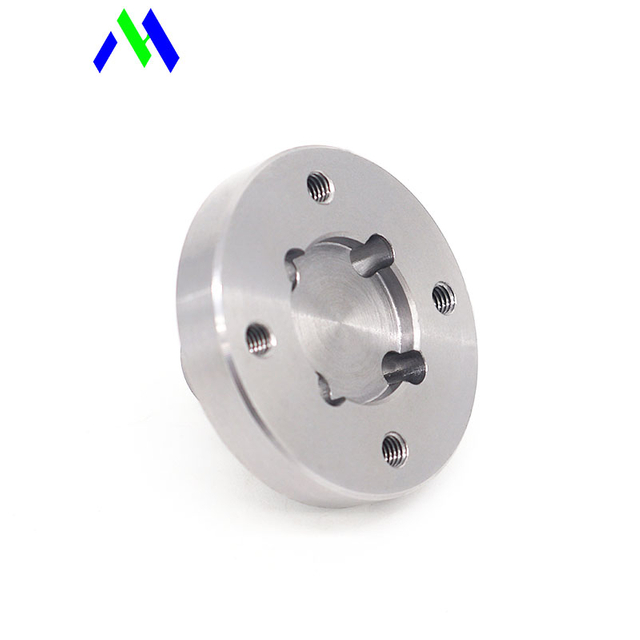

WIRE EDM MACHINING PRODUCTS

PRECISION WIRE EDM MACHINING

PRECISION WIRE EDM MACHINING

Wire cutting is a precision machining method that utilizes the principle of electrical discharge to remove materials. It uses a continuously moving metal wire as an electrode to generate electric sparks between the wire and the workpiece, and cuts various hard and complex shaped metal materials through electrocorrosion.
Wire cutting is particularly suitable for processing hard materials and complex shaped parts, such as precision molds, small hole slots, narrow seams, arbitrary curves, etc. It has the advantages of small machining allowance, high precision, and strong adaptability. Due to the small diameter of the electrode wire and almost no loss, it is suitable for processing high-precision, small batch, and complex shaped products, widely used in mold manufacturing, precision machinery, electronics, aviation, medical and other fields.

WIRE EDM MACHINING SOLUTIONS

Wire cutting is particularly suitable for manufacturing precision parts, molds, steel molds, etc. It can cut high-precision straight lines, curves, and complex geometric shapes on these materials with an accuracy of up to micrometers. Due to its principle of electric discharge, theoretically any conductive material can be processed through wire cutting technology, as long as the material can withstand local thermal effects during the processing without adverse reactions.

WIRE EDM MACHINING MATERIALS

Linear cutting processing is mainly used for processing conductive materials. This type of processing method can handle a range of metal and alloy materials, including but not limited to the following:

Metals

  • Stainless Steel

    Widely used in the manufacture of parts with corrosion resistance and strength requirements.
  • Aluminum Alloy

    Lightweight and high strength, commonly used in aerospace, automotive, and electronic products.

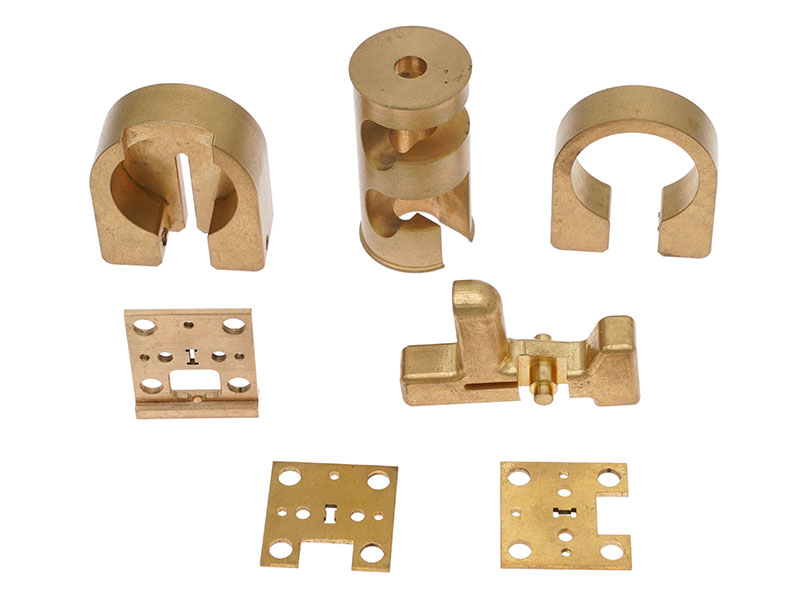

  • Brass

    It has good conductivity and processability, suitable for electrical components and decorations.
  • Titanium Alloy


    Known for its high strength to weight ratio and excellent corrosion resistance, it is used in fields such as aerospace and medical equipment.
  • Hard Alloy

    Such as tungsten carbide, used for manufacturing cutting tools and wear-resistant parts.
  • Graphite

    Used as electrode material and components in certain high-temperature applications.

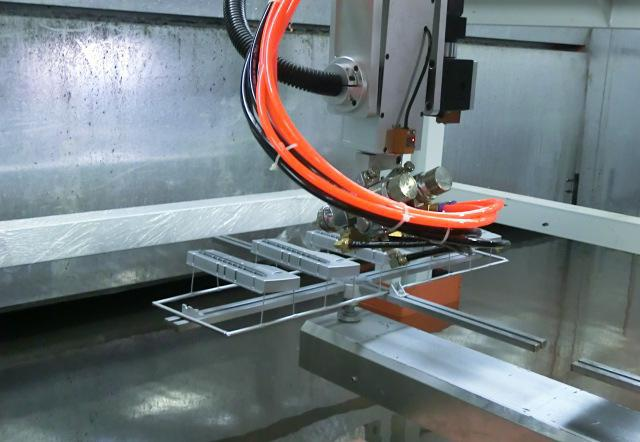

CAN PROVIDE SURFACE TREATMENT FOR WIRE CUTTING PROCESSING

There are various surface treatment methods after wire cutting processing, aimed at improving surface quality, enhancing corrosion resistance, improving aesthetics, or preparing for subsequent processing and use. Here are some commonly used surface treatment techniques for parts processed by wire cutting:
  • Electroplating
  • Brushing
  • Sandblasting
  • Oxidation Treatment
  • Spray Painting
  • Laser Surface Treatment

WORKING PRINCIPLE, ADVANTAGES AND APPLICATIONS

1. What is Wire Cutting Processing?

Wire Cut Electrical Discharge Machining (WEDM), also known as Wire Cut Electrical Discharge Machining, is a special machining technology that mainly utilizes the principle of electrical discharge to perform non-contact precision machining on conductive materials.

2. Its working principle is as follows:

1. Electrode Wire and Workpiece:

Wire cutting machining uses a continuously moving thin metal wire (usually molybdenum wire, copper wire, or specific alloy wire) as the electrode, which moves back and forth continuously during the machining process. The workpiece is fixed and connected to the positive pole of the pulse power supply, with the electrode wire connected to the negative pol


2. Electric Spark Discharge

When the distance between the electrode wire and the workpiece is reduced to a certain extent (usually a few micrometers), the high-frequency pulse voltage applied between the two poles will generate electric spark discharge in the small gap between them. This discharge can cause an instantaneous high temperature (up to 8000 to 12000 degrees) in a localized area, causing the metal to melt or vaporize locally.

3. Application

Wire cutting processing has the following application areas:
Wire EDM Services for Mold Manufacturing

Mold Manufacturing

Wire cutting is one of the key technologies for producing high-precision molds, especially suitable for molds with complex shapes, such as injection molds, die-casting molds, etc.

Wire EDM Services for Aerospace Industry

Aerospace Industry

In the aerospace industry, wire cutting is used to process high-precision and high-strength parts, such as turbine blades, nozzles, combustion chamber components, etc. of aircraft engines.

Wire EDM Services for Medical Device

Medical Device Manufacturing

Wire cutting can be used to produce complex medical device parts, such as surgical tools, implants, small catheters, etc., which often require very high precision and surface smoothness.
Wire EDM Services for Electronics Industry

Electronics Industry

Wire cutting is used for precision segmentation and microfabrication in areas such as circuit boards, semiconductor packaging, and integrated circuit frameworks.
Wire EDM Services for Automotive

Automotive Industry

Wire cutting technology is used for precision machining of automotive components, including engine parts, brake system components, transmission system components, etc.
Wire EDM Services for Jewelry Industry

Jewelry Industry

Wire cutting can be used to cut and carve precious metals, making fine jewelry.



COMMON PROBLEMS WITH WIRE CUTTING

  • Q What are the two main types of wire cutting?

    A
    Slow Wire EDM (SWEDM): Using pure water as the working fluid, molybdenum wire has a slower speed and is generally used for high-precision and high-quality machining requirements.
    Rapid Wire EDM (RWEDM): Using a working fluid mixed with a coolant, molybdenum wire has a fast speed and is suitable for mass production with low cost.

  • Q What are the characteristics of wire cutting machine tools?

    A
    Non contact machining: Due to the lack of direct physical contact during the machining process, no cutting force is generated, making wire cutting very suitable for machining hard materials or thin-walled, slender, and easily deformed parts.
    High precision machining: Wire cutting can achieve very high machining accuracy and surface smoothness.
    Wide applicability: It can process various conductive materials, including materials with extremely high hardness, such as quenched steel, hard alloys, etc.
    High degree of automation: Modern wire cutting machines are usually equipped with CNC systems, which can achieve automatic programming and control, improving machining efficiency and accuracy.

  • Q How accurate is EDM wire cutting?

    A
    A. Slow-feeding wire-cutting machine (low-speed wire-feeding EDM wire-cutting machine):
    Cutting accuracy can usually reach 0.001mm level (i.e. 1μm).
    The surface roughness can reach Ra0.8μm and above.

    B. Fast-track wire-cutting machine (reciprocating wire EDM):
    The machining accuracy usually reaches 20μm.
    The surface roughness can reach 3.2μm.

  • Q In order to improve the precision of EDM wire cutting processing can take those measures?

    A
    Control the temperature and use a water temperature cooling device to reduce the thermal deformation of the machine tool.
    Adopting linear motors to improve the control accuracy of precision positioning.
    Use special materials such as ceramics and polymer artificial granite to make machine tool components, in order to reduce the impact of temperature changes on cutting accuracy.
    Adopting a fixed workbench and column moving structure to improve the load-bearing capacity of the workbench.
    Adopting immersion processing to reduce thermal deformation of the workpiece.
    Adopting motor servo and closed-loop electrode wire tension control to improve tool alignment accuracy.
