Every hardware team faces a classic dilemma as they scale operations. You hold a successful 3D-printed prototype in your hands. Now, you must decide whether to absorb higher unit costs or risk heavy capital expenditure on steel tooling. We understand the common pain points driving this hesitation. Founders hate the lingering "prototype feel" of 3D prints. Yet, the fear of unexpected $10,000 mold bills keeps them awake at night. Many teams also overlook the hidden engineering hours needed to redesign a part for manufacturing. This article provides a transparent, strictly engineering-focused framework. We will help you choose the right manufacturing method. You will learn to evaluate options based on production volume, design maturity, and material compliance. Let us break down the exact realities of both processes. You can then confidently navigate your hardware scaling journey without wasting capital.
3D printing dominates small batches (1–500 units) and complex geometries, with zero upfront tooling costs.
Injection molding is the gold standard for high-volume, low-cost-per-part production, offering superior isotropic strength and a professional surface finish.
The financial breakeven point between the two typically falls around 10,000 units, depending on part complexity and material.
Transitioning from 3D printing to injection molding requires significant Design for Manufacturing (DFM) adjustments—it is rarely a 1:1 file swap.
Additive manufacturing builds components from the ground up. Slicing software interprets your STL mesh files first. It translates these surface meshes into a series of G-code instructions. The printer then reads this code to build parts layer by layer. This fundamental mechanism provides an incredible advantage during early product development.
You achieve extreme geometric freedom here. The layer-by-layer approach ignores traditional tooling constraints entirely. You can easily generate internal honeycomb lattices. You can print nested assemblies in a single run. Designers can include severe undercuts without worrying about demolding. The machine simply deposits material exactly where the digital mesh dictates.
Formative manufacturing relies on intense pressure and thermal dynamics. Machines heat solid thermoplastic pellets until they melt. A heavy screw then injects this molten resin into a precision-machined cavity. The tool is typically milled from aerospace-grade aluminum or hardened tool steel. The plastic rapidly cools, solidifies, and ejects as a final part.
This process demands a completely different digital foundation. You cannot use faceted STL meshes. Toolmakers require solid, parametric CAD files. STEP and IGES formats represent the industry standard. These files provide mathematical certainty for machining complex mold surfaces.
We must issue a firm constraint warning here. Physics strictly dictate this process. You cannot simply inject plastic into any shape. Liquid resin must flow smoothly. Solid parts must eject cleanly without sticking. Therefore, designers must respect several strict rules:
Incorporate specific draft angles on vertical walls.
Maintain highly consistent wall thicknesses.
Apply strict mold-release logic across the entire geometry.
Avoid sharp internal corners to prevent stress concentrations.
Financial scaling forces teams to evaluate distinct economic models. Mold tooling demands massive initial capital expenditure (CapEx). A simple single-cavity aluminum tool might cost $5,000. Complex steel molds easily exceed $50,000. However, this high entry fee unlocks incredible variable cost advantages. The unit cost of plastic injection molding parts drops dramatically at scale. You often pay mere pennies per unit.
Conversely, 3D printing skips the tooling phase entirely. You face zero upfront mold costs. You just upload a file and print. Yet, it carries a flat, relatively high variable cost. Printing requires expensive specialty resins or powders. Cycle times measure in hours, not seconds. Therefore, the unit price does not scale down significantly as your production volume grows.
You must locate the precise cost crossover point for your project. This threshold identifies where high-volume tooling becomes mathematically cheaper than printing. Hyper-precise micro-parts might see a breakeven point stretching past 10,000 units. Larger standard components usually cross over much sooner.
We recommend calculating tooling amortization over your expected lifecycle volume. You divide your total mold cost by your projected unit sales. Add this figure to your molded piece price. Compare this combined number against your standard 3D printing quote.
Standard Cost Comparison Chart | |||
Production Volume | 3D Printing Cost Efficiency | Injection Molding Cost Efficiency | Recommended Process |
|---|---|---|---|
1 - 500 units | Excellent (No CapEx) | Poor (High Amortization) | 3D Printing |
500 - 5,000 units | Moderate | Improving | Bridge Tooling / SLS |
5,000 - 10,000 units | Poor (High Variable Costs) | Good (Breakeven Zone) | Calculate Amortization |
10,000+ units | Not Viable | Excellent (Pennies per part) | Injection Molding |
Environmental, Social, and Governance (ESG) goals influence modern manufacturing decisions. High-volume molding provides exceptional material efficiency. The process produces very little permanent waste. Facilities often grind up cold runners and sprues. They mix this regrind back into the hopper for closed-loop production.
Meanwhile, additive technologies struggle with material efficiency. FDM and SLA printers generate disposable support structures. You must physically snap these off and discard them. SLS printing uses nylon powders. Un-sintered powder degrades from heat exposure over time. It eventually requires disposal, adding to industrial landfill burdens.
Mechanical performance varies drastically based on your chosen method. Most 3D prints suffer from inherent anisotropic weakness. Fused Deposition Modeling (FDM) stacks melted plastic layers. These layers cool at slightly different rates. This creates weak thermal bonds along the Z-axis. Parts often shear or snap under transverse tension.
Traditional molding bypasses this issue completely. High pressure packs molten resin into a sealed cavity. The material fuses into a uniform, dense mass. This creates truly isotropic parts. They boast superior tensile strength across all directional axes. You can confidently trust them in heavy load-bearing applications.
Buyer perception dictates commercial success. We frequently battle the "prototype feel" of printed components. Visible layer lines make expensive products look surprisingly cheap. Post-processing requires intense manual labor. Technicians must sand surfaces or apply harsh chemical vapor smoothing.
Molding eliminates this aesthetic hurdle instantly. A polished steel cavity transfers its exact texture to the plastic. You achieve smooth, consumer-ready finishes straight out of the press. Engineers can specify standard SPI polish grades or VDI matte textures. This delivers an immediate sense of professional quality to the end user.
Regulated industries demand uncompromising material certifications. Regulatory bodies require strict compliance frameworks. FDA food-grade standards ensure consumer safety. Medical device manufacturers need strict USP Class VI biocompatibility. Aerospace components require extreme flame retardancy.

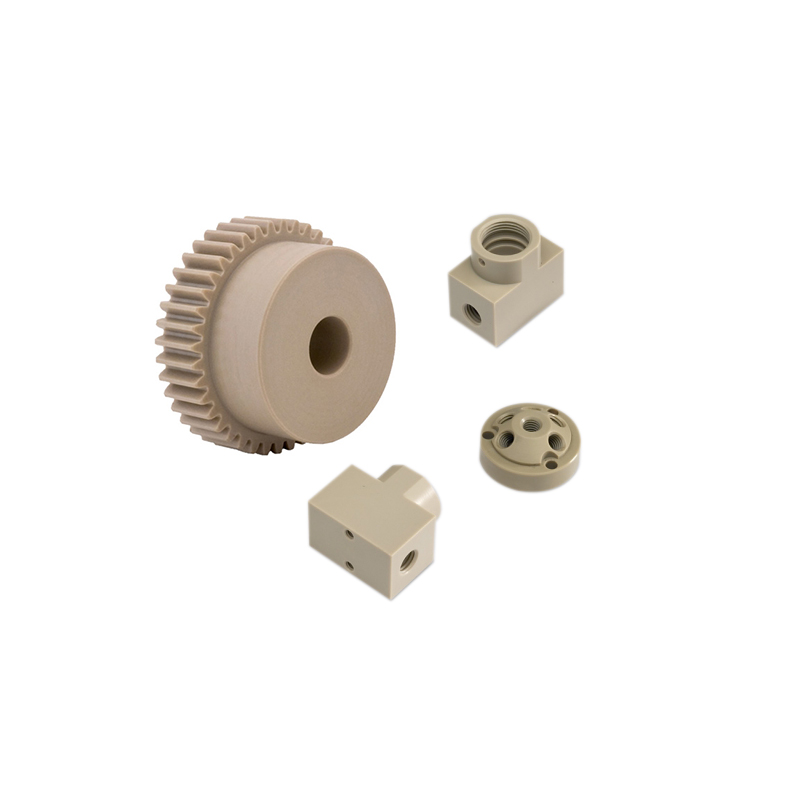

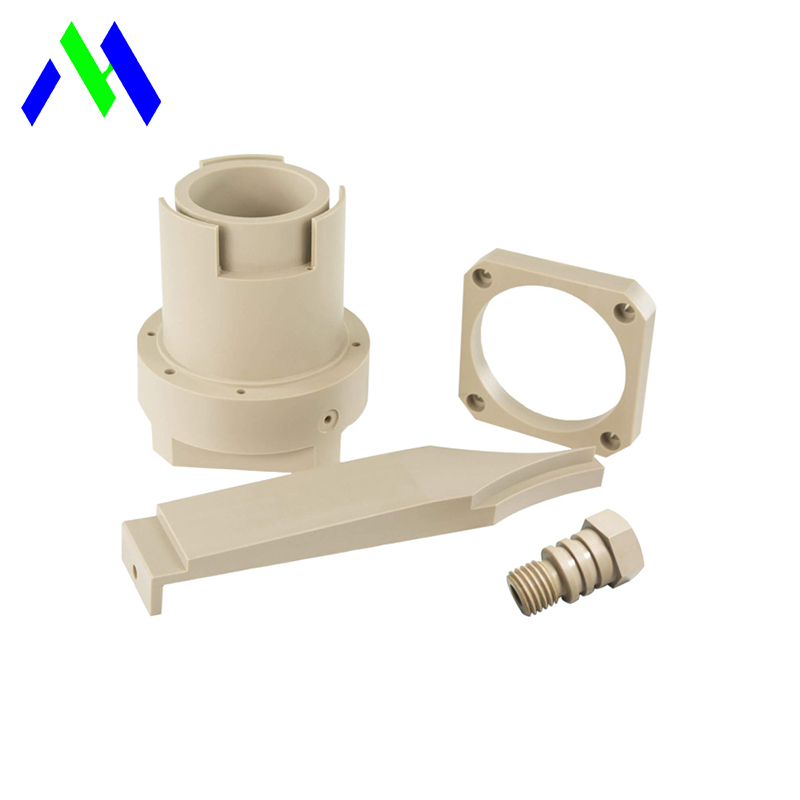

Traditional presses handle these demands flawlessly. You can access thousands of certified, engineering-grade thermoplastic pellets. Sourcing specific resins for tough ABS plastic molded parts is effortless. You can easily process heavy glass-filled nylons, PEEK, or Ultem. Additive processes simply struggle here. Proprietary printer resins attempt to mimic these properties. However, they rarely achieve identical chemical resistance or thermal stability.
Many founders face a harsh, unexpected redesign penalty. They wrongly assume their successful print file is ready for tooling. It almost never is. A geometry optimized for a print bed will fail inside a steel cavity. You will spend significant engineering hours adapting the model.
Transitioning into a custom plastic injection molding process requires rigorous CAD work. This redesign phase carries an invisible price tag. You must budget for expensive mechanical engineering hours. You also must account for project timeline delays.
Engineers must adapt the CAD file to respect formative physics. We strongly enforce several non-negotiable DFM rules.
Add Draft Angles: You must taper vertical walls. A minimum of 1 to 2 degrees ensures parts slide out smoothly without scraping.
Maintain Uniform Wall Thickness: Thick sections cool slower than thin sections. This temperature difference causes severe warp and ugly sink marks. You must core out thick areas entirely.
Remove Complex Undercuts: Printers easily create internal overhangs. Hard tooling cannot eject them. You must redesign the geometry or invest in expensive hydraulic side-actions.
Round Internal Corners: Sharp 90-degree corners create extreme stress concentrations. They also restrict resin flow. You must add generous radii to ensure structural integrity.
We preach a strict design maturity rule. Never invest in hard tooling unless your design is one hundred percent frozen. You cannot easily change a steel mold. Moving a hole by two millimeters might require cutting an entirely new cavity block.
Early-stage product volatility strictly belongs in the additive realm. You should embrace the freedom to tweak geometries daily. Only authorize metal cutting when field testing confirms the final design.
Smart hardware teams integrate both workflows seamlessly. They refuse to treat this as a binary choice. Instead, they execute a deliberate phased scaling strategy.
Phase 1 centers on rapid iteration. Teams deploy SLA or SLS technologies for low-volume beta testing. They gather user feedback and refine the CAD geometry constantly. Speed matters more than unit cost here.
Phase 2 introduces bridge production. We often rely on polyurethane casting inside silicone molds. Teams might also cut soft aluminum tooling. This yields a few hundred professional-grade units. It buys time while finalizing market validation.
Phase 3 represents full commercial scale. Mature products transition to high-volume hardened steel tooling. Partnering with an experienced OEM injection molding service guarantees reliable global output. You finally achieve the lowest possible piece price.
We also see great success utilizing complementary tooling techniques. The dividing line between these technologies continues to blur. Engineers now print actual mold inserts.
You can use high-temperature SLA resins to 3D print a cavity block. You then install this printed block into a standard industrial press. This allows teams to shoot real thermoplastic resin into the printed mold. It typically survives for 50 to 100 shots. You gather real-world material data before ever committing to expensive steel.
Shortlisting your ideal manufacturing process requires clear logic and honest assessment. You must align your technical requirements with your financial reality.
Choose 3D printing when speed-to-market is your ultimate priority. It excels at extreme design complexity. Use it heavily when design flexibility matters most. It remains the undisputed champion for production volumes under 500 units.
Choose injection molding when your product design is permanently locked. It makes pure financial sense once your volume justifies tooling costs. You should demand this process when you require uncompromised part strength and aesthetic professionalism.
Your next step is highly actionable. Engage a reliable manufacturing partner for a comprehensive DFM audit today. Request quotes for both a low-volume MJF print run and a single-cavity aluminum tool. Reviewing these exact numbers side-by-side will clarify your scaling path immediately.
A: No, you cannot. A printed design lacks crucial formative constraints. You must adapt the CAD file through Design for Manufacturing (DFM) principles. This involves adding proper draft angles for easy part ejection. You also must ensure uniform wall thickness to prevent warping and sink marks.
A: 3D printing offers incredible speed. You can receive finished parts in one to seven days. Injection molding requires substantial lead time. Fabricating custom aluminum or steel tooling usually takes four to six weeks before any actual production can begin.
A: Generally, they are not. Many 3D prints suffer from anisotropic weakness due to poor layer adhesion. Injection molding creates pure isotropic strength. Intense pressure fuses the molten resin completely, ensuring maximum structural integrity across all directional axes.
A: You should switch when two conditions align. First, your product design must be completely frozen. Second, your expected sales volume must exceed the financial breakeven point. This economic crossover typically happens between 1,000 and 10,000 units depending on the part geometry.
