Component failure in heavy industrial machinery compounds operational liabilities rapidly. A single out-of-spec bracket or compromised enclosure can halt an entire assembly line or trigger severe field failures. Engineering teams frequently face a wide gap between ideal CAD models and actual manufacturing reality on the shop floor. Improper material specification compromises structural integrity, while overlooked tolerance stack-up creates severe integration bottlenecks during final assembly. Failure to account for post-process finishing during the initial design phase practically guarantees missed deadlines. These engineering oversights inevitably cause heavy budget overruns and project delays.
Successful industrial manufacturing requires rigorous evaluation of the end-to-end production process. You must analyze raw material properties and forming mechanics before ever issuing a request for quotation. Finishing operations and vendor quality management systems heavily influence final product viability. We must bridge the gap between digital design and physical execution. Mastering the mechanics of custom sheet metal fabrication ensures structural reliability across high-volume production runs and eliminates forced assembly on the factory floor.
Material-Process Alignment: Selecting the highest-grade alloy does not guarantee optimal performance if its yield strength restricts precise forming; formability must be balanced with environmental demands and surface treatment compatibility.
Tolerance vs. Cost Reality: Specifying standard tolerances (typically ±0.010" to ±0.030") is cost-effective. Demanding tight tolerances (±0.005" or lower) exponentially increases cycle times and rejection rates, and should be reserved solely for critical mating surfaces to prevent unnecessary cost multipliers.
Design for Manufacturability (DFM) for Speed and Precision: Factoring in material-specific springback, standardized bend radii, and localized heat distortion prior to production mitigates 80% of downstream assembly friction and reduces machine setup times.
Comprehensive Vendor Validation: A reliable partner is defined not just by their equipment list, but by their verifiable quality management system (QMS), First Article Inspection (FAI) capabilities, and ability to handle A-Z fabrication processes in-house.
Engineering success extends far beyond simply building a part to print. True success requires flawless functional integration within complex industrial machinery. Dimensional repeatability must remain consistent across thousands of production cycles. Operators should never need to force an assembly together. Secondary rework on the production floor indicates a fundamental failure in the initial design phase. Parts must mate perfectly straight out of the shipping crate. Achieving this level of reliability demands precise upfront engineering and rigorous process controls on the fabrication floor.
Evaluating operating environments determines baseline fabrication requirements. Industrial machinery faces severe static and dynamic loads continuously. High-frequency vibration accelerates metal fatigue and joint failure over time. Corrosive operating environments dictate specific material grades and protective coatings. Engineers must analyze chemical exposure, humidity levels, and thermal cycling parameters. These environmental factors directly govern which metal alloys will survive long-term field deployment. Overlooking load requirements guarantees premature structural failure.
Engineers must balance production speed, dimensional precision, and overall component quality. Identifying the absolute break-even point is mandatory. Investing in premium, high-precision fabrication upfront often prevents disastrous downstream consequences. Attempting to cut corners during fabrication leads to heavy hidden expenses later. Assembly-line shimming wastes valuable labor hours. Welding adjustments warp adjacent components and destroy structural integrity. Establishing clear success criteria prevents these costly manufacturing missteps.
Carbon steel dominates heavy industrial manufacturing due to exceptional tensile strength. Mild steel offers excellent formability for complex geometries. High-strength low-alloy (HSLA) variants provide high structural rigidity. These materials offer superior efficiency compared to exotic alloys. However, carbon steel suffers from extremely poor natural corrosion resistance. Raw steel requires immediate secondary plating, powder coating, or galvanizing to survive outdoor environments. Without protective coatings, carbon steel oxidizes rapidly under moderate humidity.
Industrial applications leverage carbon steel for high-load environments. Structural equipment frames rely on heavy-gauge carbon steel to prevent deflection. Heavy-duty mounting brackets utilize high-strength variants to support heavy engine blocks. Internal machine chassis benefit from its excellent weldability and vibration-dampening characteristics. Carbon steel remains the default choice where weight is not a restrictive engineering factor.
Stainless steel delivers superior corrosion resistance without requiring secondary surface coatings. Grade 304 serves as the standard for general industrial use. Grade 316 incorporates molybdenum to withstand severe chloride exposure. The 400 series provides magnetic properties and higher hardness levels. These alloys resist extreme heat and aggressive chemical agents. Fabricating stainless steel presents distinct manufacturing challenges. The material causes rapid tool wear on punch presses. It also exhibits high springback during press brake operations. Producing custom steel bending parts from stainless alloys requires specialized tonnage calculations.
Heavy industries deploy stainless steel in highly regulated environments. Food processing machinery requires non-porous, easily sanitized stainless surfaces. Chemical mixing enclosures demand 316 stainless to prevent acid degradation. Marine equipment relies on stainless hardware to survive continuous saltwater submersion. The inherent durability offsets the increased machining difficulty.
Aluminum alloys provide an exceptional strength-to-weight ratio for dynamic equipment. Grade 5052 offers excellent formability and inherent marine-grade corrosion resistance. Grade 6061-T6 delivers structural-level strength for high-stress applications. Aluminum naturally forms a protective oxide layer upon atmospheric exposure. However, 6061-T6 exhibits severe susceptibility to cracking on tight bend radii. Forming hard-tempered aluminum requires significantly larger punch tips. Ignoring bend radius rules destroys the material's grain structure immediately.
Weight reduction drives aluminum adoption in modern industrial design. High-performance heat sinks utilize aluminum's superior thermal conductivity. Robotics components require lightweight panels to reduce motor strain and inertia. Moving machinery guards rely on aluminum to allow easy manual removal by floor operators.
Material Alloy | Yield Strength (Approx.) | Formability | Primary Industrial Application |
|---|---|---|---|
Mild Carbon Steel (1018) | 54,000 psi | Excellent | Machine frames, internal chassis, welded brackets |
Stainless Steel (304) | 31,000 psi | Good (High Springback) | Food processing, general corrosive environments |
Stainless Steel (316) | 35,000 psi | Fair (High Springback) | Chemical processing, marine equipment |
Aluminum (5052-H32) | 28,000 psi | Excellent | Electronic enclosures, lightweight panels |
Aluminum (6061-T6) | 40,000 psi | Poor (Prone to cracking) | Structural supports, high-stress machined parts |
Nesting flat patterns without evaluating material grain direction invites structural failure. Metal sheet rolling processes create distinct grain structures similar to wood. Bending parallel to the grain significantly increases the risk of outer-radius cracking. Engineers must orient critical bends perpendicular to the material grain. Different alloys also react uniquely to post-process treatments. Anodizing alters the surface dimensions of aluminum parts. Hot-dip galvanizing causes severe thermal distortion in thin-gauge carbon steel. Anticipating these chemical reactions prevents major assembly issues.

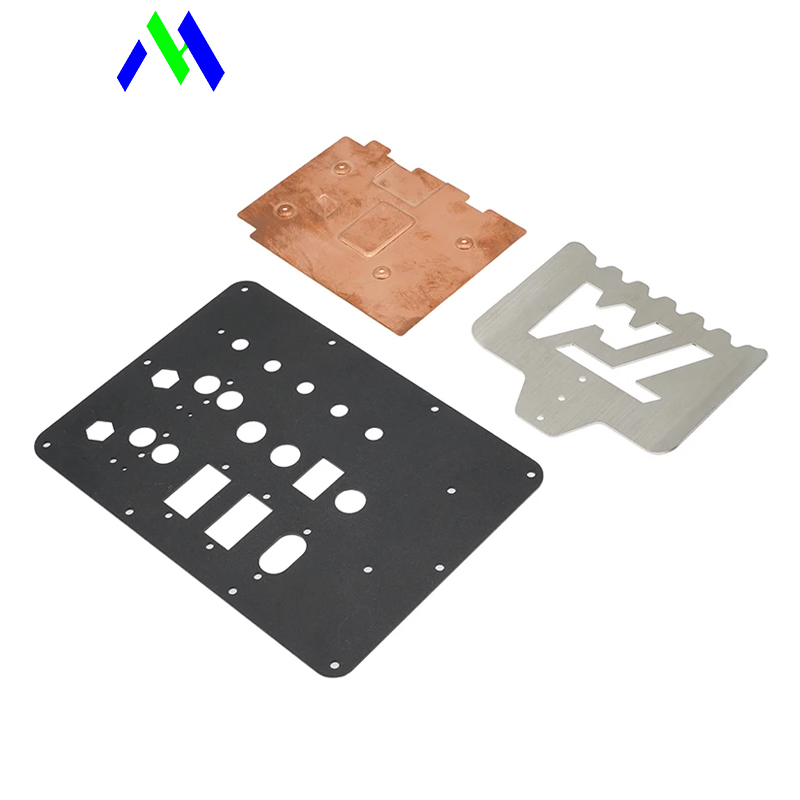

Selecting the optimal cutting technology defines edge quality and secondary machining requirements. Fiber lasers provide extreme accuracy for thin to medium-gauge materials. Plasma cutting delivers aggressive speeds for thick metal plates. Waterjet systems offer cold-cutting capabilities to eliminate thermal distortion completely. Each method leaves a distinct edge profile. High-wattage lasers create minimal kerf widths but introduce localized heat. Evaluating precision sheet metal cutting options requires matching the machine to the specific alloy.
Heat-affected zones (HAZ) alter the metallurgical structure of the cut edge. Laser and plasma cutting harden the perimeter of internal holes. This localized hardening destroys tapping tools during secondary threading operations. It also causes micro-cracking during extreme press brake forming. Standardizing hole sizes maximizes laser cutting efficiency. Maintaining optimal hole-to-edge distances prevents material blowout.
Press brake operations require a deep understanding of metal deformation mechanics. Air bending pushes the material into a V-die without bottoming out. Bottoming forces the sheet fully into the die for sharper radii. Coining utilizes heavy tonnage to permanently stamp the bend profile. Each method affects final angular accuracy. Higher yield strength materials exhibit aggressive springback after forming. Operators over-bend the metal to compensate for this elastic recovery.
Developing accurate flat patterns requires precise mathematical calculations. K-factors determine the exact location of the material's neutral axis during deformation. Bend deductions calculate the physical material stretch. Incorrect variables result in severely misaligned flanges. Manufacturing CNC bending components demands rigid control over these variables. Designing components with consistent bend radii eliminates press brake setup interruptions entirely.
Integrating captive hardware streamlines final mechanical assembly. PEM fasteners, threaded studs, and blind standoffs require precise insertion mechanics. Hydraulic hardware presses squeeze fasteners directly into pre-punched holes. The displaced metal flows into the fastener's mounting groove. This cold-flow process creates permanent, torque-resistant threads. Inserting hardware before final forming guarantees optimal positional accuracy. It prevents tool interference caused by large bent flanges. Streamlining the manufacturing flow ensures hardware aligns perfectly with mating components.
High-volume production eventually outgrows manual press brake operations. Progressive die stamping feeds coiled metal through consecutive forming stations. Each station punches, coines, or bends the material incrementally. This automated process generates parts at incredibly high speeds. Implementing industrial metal stamping delivers unparalleled dimensional consistency across millions of cycles.
Transitioning to stamping requires significant upfront tooling investment. Engineering hardened steel dies demands precise metallurgical knowledge. Long-term piece-price reduction justifies the initial capital expenditure. Stamping eliminates manual handling and multi-machine routing. You must calculate the exact volume threshold where die construction becomes financially viable.
Manufacturing physical parts involves inherent dimensional variations. Industry standards establish baseline expectations for metal fabrication. Raw sheet metal arrives from the mill with allowable thickness deviations. An 11-gauge steel sheet is never perfectly 0.1196 inches thick. Thermal cutting introduces slight edge tapers and kerf variations. Press brakes produce minor angular deviations based on material hardness fluctuations. Engineers must understand these physical limitations. Attempting to force machined-part tolerances onto bent sheet metal defies the laws of physics.
Feature Category | Standard Tolerance limit | Tight Tolerance Limit (Cost Premium) |
|---|---|---|
Linear Dimensions (< 6 inches) | ± 0.015" | ± 0.005" |
Hole Diameters (Laser Cut) | ± 0.005" | ± 0.002" (Requires reaming) |
Bend Angles | ± 1.0° | ± 0.5° |
Flatness (Per linear foot) | ± 0.030" | ± 0.010" |
Over-tolerancing destroys project budgets rapidly. Moving from standard to tight tolerances triggers heavy cost multipliers. Machining a profile to extremely tight tolerances requires drastically slowed laser feed rates. Press brake operators must constantly calibrate tools to maintain tight angular constraints. Quality control teams must perform stringent manual inspections on every single part. Rejection rates skyrocket as minor material variations cause out-of-spec dimensions. This intensive labor requirement increases final piece-prices exponentially.
Multiple bent features on a single part compound dimensional deviations. A slight angular error on the first flange pushes the second flange completely out of alignment. This tolerance stack-up creates major interference during final mechanical integration. Using Geometric Dimensioning and Tolerancing (GD&T) solves this engineering challenge. GD&T communicates functional limits rather than applying blanket tight tolerances. It defines specific datums and allowable profile deviations. This ensures the part functions correctly without requiring impossible manufacturing precision.
Protective coatings add measurable thickness to final dimensions. Powder coating typically adds 2 to 5 mils of thickness per surface. Hot-dip galvanizing adds significantly more unpredictable material. Applying coatings to an internal hole shrinks the functional diameter drastically. You must account for this coating stack-up in the initial CAD model. Pre-sizing holes and offsetting mating surfaces guarantees hardware fits perfectly after finishing. Failing to offset for plating requires manual drilling to clear clogged holes.
Implement tab-and-slot designs to create self-fixturing assemblies that guarantee mechanical alignment prior to welding.
Establish specific datums on the most critical mating surfaces rather than dimensioning from arbitrary edges.
Ensure QA teams utilize coordinate measuring machines (CMM) or optical vision systems rather than manual calipers, which can compress and flex thin sheet metal.
Design with symmetrical bend features to balance material stress and prevent post-forming warping.
Marketing claims cannot replace verifiable process controls. A competent sheet metal fabrication service maintains rigorous internal audits. ISO 9001:2015 certification demonstrates a baseline commitment to procedural consistency. Advanced vendors provide comprehensive Production Part Approval Process (PPAP) documentation. Full material traceability protocols guarantee that raw alloys match engineering specifications. Mill test reports (MTRs) trace chemical compositions back to the original steel forge. These systems prevent counterfeit metals from entering the supply chain.
Exceptional fabrication partners actively interrogate client CAD designs. They proactively push back on problematic geometries. Competent engineers suggest minor thickness adjustments to match available raw material gauges. They advocate for unified bending radii to optimize press brake setup times. A strong partner recommends alternative fabrication techniques to enhance structural integrity. This collaborative DFM approach bridges the gap between digital theory and physical manufacturing. It optimizes both production speed and final component precision.
Fragmented supply chains cause severe production delays. Sending raw parts to a third-party vendor for powder coating destroys lead times. Shipping parts back and forth increases the risk of transit damage. Elite fabrication facilities handle A-Z processes under one roof. They manage raw material sourcing, precision laser cutting, and robotic welding. In-house hardware insertion and automated powder coating lines guarantee continuous production flow. This vertical integration prevents multi-vendor bottlenecks and ensures realistic delivery schedules.
Precision manufacturing remains an exact orchestration of physical variables. Combining the correct material properties with realistic tolerance applications guarantees long-term success. Exact machine calibration controls the unavoidable variations inherent in raw alloys. Over-engineering specific dimensions drives up production costs exponentially. Conversely, under-specifying critical datums guarantees complete integration failure on the assembly floor. Success requires deep collaboration between design teams and manufacturing floor experts. Prioritize fabrication partners who natively integrate DFM into their initial quoting process and deploy rigorous inspection protocols. Execute the following steps to advance your production pipeline:
Consolidate and review all native 3D CAD files for localized interference issues or physically impossible bend geometries.
Generate detailed 2D PDF drawings utilizing precise GD&T datum callouts to highlight the most critical mating surfaces.
Document exact surface finish requirements and establish acceptable coating thickness limits prior to releasing the RFQ.
Calculate anticipated annual volume requirements to determine the financial viability of transitioning to automated stamping tools.
Initiate a highly technical RFQ process coupled with a comprehensive vendor DFM consultation to finalize material selection.
A: Standard industry tolerances typically sit at ±0.010" to ±0.015" for linear dimensions and ±1 degree for bend angles. These baselines depend heavily on initial material thickness and overall part size. Tighter tolerances are achievable but require specialized tooling, strictly controlled environments, and significantly slower production feed rates.
A: Tight tolerances create a heavy cost multiplier effect. They demand slower laser cutting speeds, continuous press brake tool calibration, and higher scrap rates. Quality teams must manually inspect a larger percentage of parts. This intense labor and machine time requirement multiplies the final piece-price.
A: The inside bend radius must typically equal or exceed the material thickness to prevent structural fracturing. High-strength materials, such as 6061-T6 aluminum, require an inside bend radius up to six times the material thickness. Forcing tight radii on thick gauges causes immediate cracking along the outer bend axis.
A: Warping occurs when internal material stresses release during thermal cutting. High-wattage lasers and plasma cutters create localized heat-affected zones (HAZ) that distort thin gauges. Welding also introduces extreme thermal energy, causing asymmetrical shrinkage. Proper fixturing and optimized heat-reduction cutting paths mitigate this dimensional distortion.
A: Surface coatings add physical material that alters functional dimensions. Powder coating typically adds 2 to 5 mils (0.002" - 0.005") of thickness per coated surface. Engineers must subtract this anticipated coating stack-up from initial CAD hole sizes and mating profiles to prevent hardware insertion failures.
A: Standardizing all hole sizes allows laser and punch systems to run continuously without tooling changes. Utilizing unified bend radii across a single part completely eliminates press brake setup interruptions. Aligning bend lines perpendicular to the material grain direction prevents unexpected cracking and speeds up secondary inspection requirements.
