For engineers and procurement managers, choosing between milling and turning isn't just a technical trivia question. It directly impacts unit economics, lead times, and dimensional accuracy for every component you source. While the basic physics are well-known—spinning the part versus spinning the tool—the actual decision goes much deeper. It involves evaluating material removal rates (MRR), fixturing complexity, and overall volume requirements on the shop floor.
Making the wrong choice can quietly drain your budget. Inflated cycle times and unnecessary setups ruin profit margins. This guide breaks down the shop-floor realities of these machining processes. We provide an evidence-based framework to help you specify the right method for your projects. You will learn how to align part geometry with machine capabilities. We will also show you how to avoid costly sourcing mistakes and optimize your production schedule.
Cost & Speed Logic: Turning cylindrical parts can reduce machining time by up to 60% compared to milling the same profile.
Tolerance Hierarchy: Turning naturally excels at ultra-tight concentricity and roundness (often ±0.00015"), while milling dominates in complex 3D geometries and flatness.
The 70% Rule: Up to 70% of a part's manufacturing cost is locked in during the CAD design phase (DFM); choosing the right primary or secondary machining process early prevents budget overruns.
Hybrid Viability: For components requiring both processes, multi-axis mill-turn centers eliminate re-fixturing errors and accelerate delivery.
We must move past basic definitions to understand machine dynamics. These dynamics heavily affect project viability and production risk. Shop managers view these machines differently than CAD designers do. Understanding their perspective helps you design better components.
Turning relies on a simple mechanism. The workpiece rotates at high RPM while a single-point cutting tool remains stationary. This continuous cutting action provides immense stability. Turning offers exceptional strengths when maintaining strict cylindrical tolerances, concentricity, and precise threading. The material removal rate (MRR) for round stock is highly efficient. For example, machining mild steel yields 1 to 3 cubic inches per minute.
However, the floor reality introduces specific challenges. Turning is highly efficient but requires strict tool clearance management. Machinists must constantly ensure cutting tools do not crash into the rapidly spinning chuck. The extreme rotational inertia demands perfect balance. Unbalanced parts create dangerous vibrations. These vibrations ruin surface finishes and accelerate tool wear.
Milling uses an entirely different physical approach. A multi-flute tool rotates at high speeds. The workpiece remains stationary on a machine bed. Milling is ideal for creating complex asymmetrical shapes, deep pockets, and perfectly flat surfaces. You can machine nearly any blocky profile using this method.

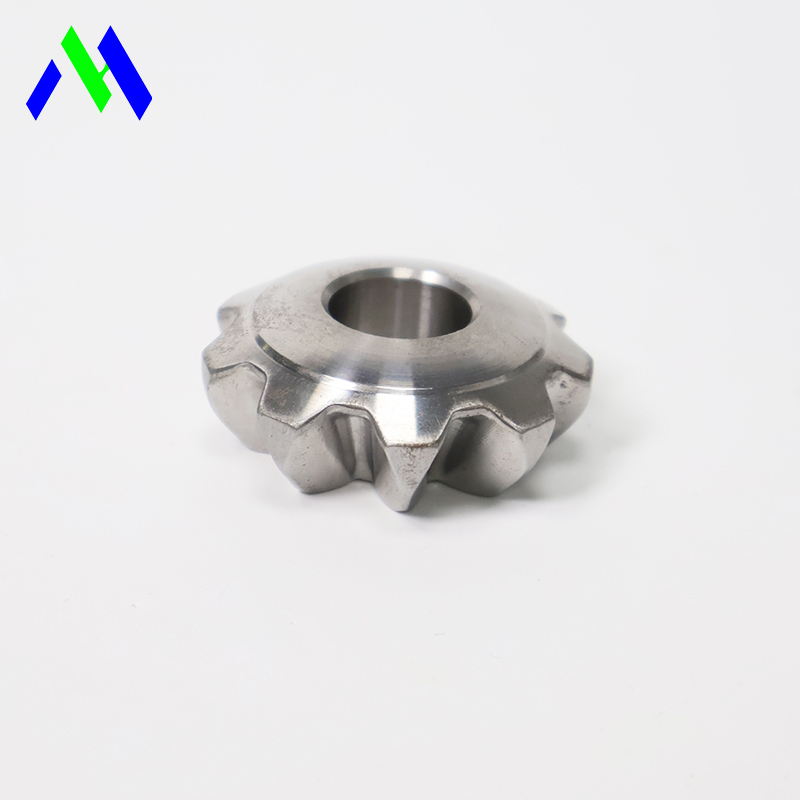

The primary floor reality challenge lies in workholding and fixturing. You must secure irregular blocks tightly without distorting their shape under heavy cutting forces. Producing high-quality CNC milling parts often requires complex multi-axis setups. Machinists must navigate irregular geometries carefully. They must re-orient the part multiple times without losing positional accuracy across different faces.
Assign purely cylindrical components to a lathe immediately.
Design parts avoiding deep, narrow pockets to reduce tool deflection.
Consult machinists early regarding workholding strategies for asymmetrical parts.
Process selection directly dictates your bottom line. It also governs your entire production schedule. When you choose the wrong machine, you inadvertently extend delivery times.
Turning offers rapid, repeatable setups. Chuck-based clamping takes mere seconds. Operators simply load cylindrical bar stock into the spindle jaws and tighten them. This speed drastically reduces initial preparation time.
Milling requires much more preparation. Custom fixtures or complex vise setups take minutes to hours to prepare. You often need custom-machined soft jaws to grip irregularly shaped billets safely. This extensive preparation heavily impacts low-volume setup costs. Prototypes become expensive simply because dialing in the fixture takes longer than cutting the metal.
Let us look at shop-floor evidence. Producing a standard cylindrical steel pump shaft on a lathe might take exactly 8 minutes. The single-point tool cleanly peels material away in continuous passes. Forcing that same cylindrical profile onto a 3-axis mill pushes cycle times to 25 minutes or more. The mill must use circular interpolation. The rotating tool moves in a slow, calculated circle to simulate a round profile. This results in an inferior MRR for that specific shape.
The fundamental takeaway is clear. Turning is inherently 20-40% cheaper for rotationally symmetrical parts. You waste money forcing a mill to do a lathe's job.
Process Metric | CNC Turning (Cylindrical Parts) | CNC Milling (Cylindrical Parts) |
|---|---|---|
Average Setup Time | 5–10 minutes (Standard Chuck) | 30–60+ minutes (Vise/Soft Jaws) |
Cycle Time (Steel Shaft) | ~8 minutes | ~25+ minutes |
Tooling Cost per Part | Low (Single-point inserts) | High (Multi-flute end mills) |
Material Removal Method | Continuous cutting | Interrupted cutting (Interpolation) |
You must match your engineering specifications to capable machines. Pushing a machine beyond its natural limits causes exponential cost spikes. Evaluating CNC milling vs CNC turning requires strict attention to dimensional constraints and material science.
Turning naturally excels at roundness. Because the part spins around a fixed centerline, you achieve perfect concentricity easily. Standard turning tolerances hover around ±0.0005". High-precision lathe setups can achieve an astonishing ±0.00015" diameter tolerance.
Milling naturally excels at flatness and perpendicularity. A well-trammed mill easily holds a flatness of 0.001" over a 12-inch span. However, standard precision for milled profiles is generally ±0.005". Demanding tighter tolerances on a mill drives up tooling costs rapidly. The machine must take multiple extremely slow finishing passes.
Standard turning operations deliver Ra 1.6 to 3.2 µm easily. The continuous peeling action leaves a smooth, uniform finish. Achieving Ra 0.8 µm via milling proves far more difficult. It requires specialized fine-milling passes using wiper inserts or high-speed finishing end mills. This severely increases overall cycle time.
Ductile metals perform incredibly well on both platforms. Aluminum, brass, and mild steel yield excellent chips. These materials dissipate heat efficiently during both interrupted and continuous cutting.
Brittle materials pose serious problems. Glass, certain ceramics, and rigid composites struggle under the continuous cutting force generated by turning. The constant pressure causes severe edge chipping. These brittle substrates often require specialized milling operations. You might even need secondary grinding to prevent catastrophic material failure.
Turning ceramics without specialized diamond tooling.
Milling soft plastics at high RPMs, causing the material to melt rather than cut.
Ignoring thermal expansion in aluminum during aggressive turning passes.
Procurement teams and design engineers often inadvertently inflate project costs. These errors happen frequently when outsourcing production to a CNC manufacturing service. Understanding DFM principles keeps budgets intact.
Applying blanket tight tolerances across non-critical features is a costly habit. Many engineers slap a ±0.001" tolerance on every dimension in the CAD file. This forces vendors into slower, vastly more expensive milling passes. You pay premium rates for precision on surfaces simply suspended in empty air. Only specify tight tolerances on critical mating surfaces or bearing fits.
Teams sometimes swap metal out for plastics to save on tool wear and raw material costs. They assume the geometric profile alone ensures part success. The plastic part then fails mechanical stress tests under operational loads. This mistake requires a complete re-machining run in the originally intended metal. Always validate material strength requirements before altering the BOM for cost savings.
Many buyers fail to realize a crucial manufacturing reality. Forged or cast parts frequently require secondary milling operations. Raw forging processes simply cannot achieve tight dimensional tolerances. They leave a rough exterior crust. You must use precision machining to finalize mounting holes, flat mating surfaces, and threaded features. Plan for this secondary step early to avoid production delays.
You need a concrete shortlisting logic to finalize your strategy. Use this five-step evaluation framework to specify the right process for your custom machined parts.
Analyze the primary footprint of the part. Is the raw stock primarily cylindrical? If yes, default to turning. Is the part blocky, highly asymmetrical, or filled with deep internal pockets? If yes, default to milling. Let the foundational geometry guide your first instinct.

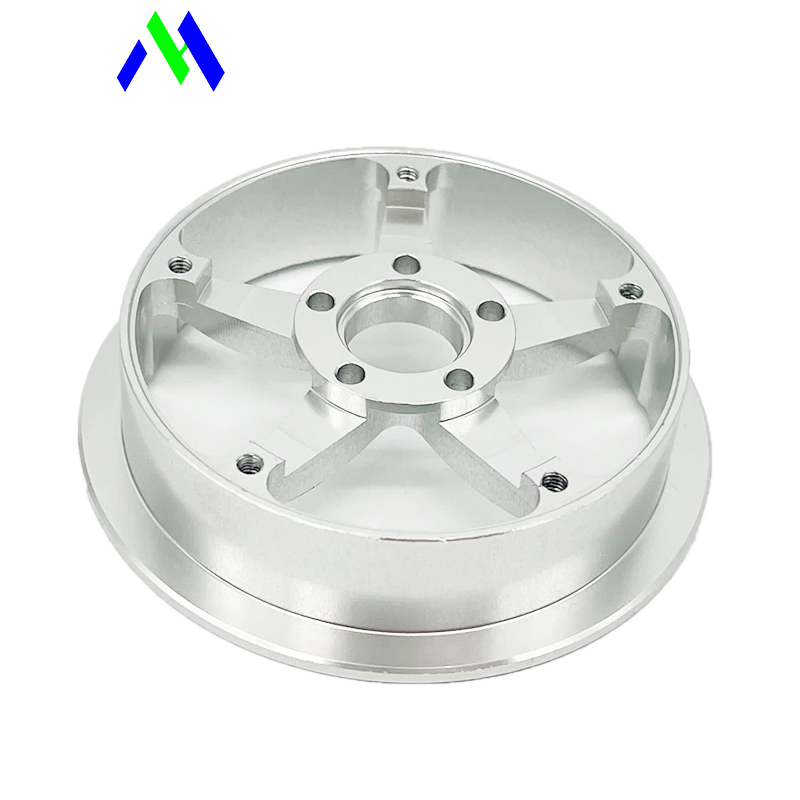

Examine the secondary features. Does the part have a main cylindrical body but feature off-axis holes or flat wrench flats? You should strongly consider Mill-Turn or Swiss machining centers. These hybrid machines handle both operations in one setup. This approach completely avoids multiple setups and eliminates human re-fixturing errors.
Map out the most critical tolerances required for the part to function. Are you prioritizing absolute concentricity for a spinning shaft? Turning handles this best. Are you prioritizing complex surface parallelism across a wide block? Milling will yield the best results.
Evaluate your production volume. Are you scaling up to wholesale volumes? Automated bar-fed turning proves vastly superior for high-volume, unattended production. Lathes easily run "lights out" overnight. Milling automation requires expensive pallet-changing systems.
Perform a final design review. Can you simplify a 3D milled feature into a turned groove? For instance, replacing an irregularly milled slot with a simple turned undercut can save 30% on the final unit price. Small CAD adjustments unlock massive shop-floor efficiencies.
The choice between milling and turning isn't an either/or ideology. It is a strict geometric and economic calculation. Cylinders belong on lathes. Complex blocks, asymmetrical shapes, and deep pockets belong on mills. Recognizing these inherent mechanical boundaries allows you to design better components and control production budgets.
Here are your crucial next steps:
Evaluate your existing CAD files against core DFM principles before requesting quotes.
Remove unnecessarily tight tolerances from non-mating surfaces to reduce cycle times immediately.
Partner with a manufacturing service offering transparent cycle-time estimates.
Leverage hybrid multi-axis capabilities for complex parts to ensure you aren't paying a premium for inefficient setups.
A: Technically yes, a mill can produce round profiles using circular interpolation. However, it is vastly slower, far more expensive, and rarely achieves the same natural concentricity or surface finish found on a lathe. You should avoid milling simple cylinders whenever possible.
A: Mill-turning is a process combining a rotating workpiece (turning) with live rotating tooling (milling). It allows complex parts to be completed in a single setup. This method eliminates human error during re-fixturing and drastically improves positional accuracy between turned and milled features.
A: It depends entirely on the part geometry. Round, rotationally symmetrical parts are universally cheaper to turn due to rapid chuck setups. Prismatic, blocky parts requiring irregular pockets and flat faces are cheaper to mill.
A: Often, raw parts created via forging, casting, or 3D printing lack functional precision. They emerge with rough surfaces. Manufacturers then use milling and turning to precisely machine the critical mating surfaces, threads, and tight-tolerance bearing bores.
