In aerospace engineering, the gap between a digital CAD model and a functional test component represents the highest area of risk. Tolerance deviations measuring just tenths of a thousandth of an inch cause immediate failure in fluid dynamics or structural integrity. Engineering teams face immense pressure to validate complex geometries like turbine blades, blisks, and structural brackets using flight-grade materials such as Titanium and Inconel under aggressive R&D timelines. This process demands zero tolerance stacking, strict regulatory compliance, and rapid iteration capabilities to keep pace with modern aviation and eVTOL innovations. Selecting a manufacturing partner requires evaluating technical thresholds, implementation risks, and quality control workflows to successfully procure flight-ready hardware.
Continuous 5-axis machining eliminates the tolerance stacking inherent in multiple-setup 3-axis or 3+2 axis machining, ensuring the true positional accuracy required for aerospace precision prototypes.
Achieving ±0.0001” to ±0.0005” tolerances on a complex CNC component is dictated heavily by the vendor's CAM programming expertise, machine kinematics, and in-process metrology, not just the machine's theoretical limits.
Advanced multi-axis CNC milling dramatically reduces the need for manual post-processing and bench-polishing, preserving the exact mathematical profiles of critical aerodynamic surfaces.
Machining aerospace superalloys introduces severe tool deflection and thermal deformation risks, requiring rigid machine setups, specialized toolpaths, and dynamic thermal compensation.
Evaluating a prototype manufacturer requires validating their AS9100/ITAR compliance, raw material traceability, and digital twin/collision simulation capabilities before committing to an RFQ.
Positional 3+2 machining fails when tasked with the continuous sweeping contours necessary in aerodynamic testing. In a 3+2 setup, the machine rotates the trunnion or articulating head to a specific angle, applies hydraulic or pneumatic brakes to lock the axes in place, and then executes standard 3-axis toolpaths. This indexial method works perfectly for flat, prismatic features like bolt hole circles or planar mating faces. It breaks down completely on organic geometries.
When the spindle stops, lifts off the part, rotates the workpiece to a new angle, and re-engages, it leaves a microscopic step-over line. Machinists call these blend marks. On a wind tunnel model, these microscopic imperfections trip the boundary layer of airflow, generating false turbulence data. On structural components, blend marks act as stress risers. High-cycle fatigue cracks initiate directly at these blend lines under heavy vibration loads. You cannot accept these surface discontinuities on flight hardware.
Simultaneous machining operates on a completely different kinematic level. The machine controller drives movement across all linear axes (X, Y, and Z) and rotary axes (A and B/C) concurrently. The cutting tool remains constantly engaged with the raw billet as it maneuvers around complex curves. 5-axis CNC machining allows you to cut entirely organic shapes without ever breaking tool contact.
Maintaining the exact programmed climb-milling engagement angle across an entire toolpath minimizes tool chatter. You achieve superior surface finishes straight off the machine, routinely hitting Ra 16 or better without secondary operations. This continuous engagement also stabilizes chip load. You can push tools harder and faster without generating localized heat spikes that destroy carbide inserts or induce dimensional shifts mid-cut.
Machine configuration dictates what type of geometry you can successfully cut. You must match the kinematic layout to the specific aerospace component.
Kinematic Configuration | Operational Mechanics | Best Aerospace Applications |
|---|---|---|
Trunnion Table (A/C Axis) | The spindle operates on three linear axes while a U-shaped cradle tilts and rotates the workpiece. Offers massive rigidity. | Heavy, compact parts like engine impellers, titanium bulkheads, and dense Inconel forgings where cutting forces are extreme. |
Articulating Head (B/C Axis) | The workpiece remains stationary on a fixed table. The spindle head swivels and rotates around the part. | Large-envelope structures like wing spars, long fuselage frames, and oversized composite molds that exceed trunnion weight limits. |
Mill-Turn Centers | Combines a high-speed turning lathe chuck with a fully functional 5-axis milling spindle on the upper turret. | Cylindrical parts requiring heavy off-center milling, such as landing gear struts or complex hydraulic manifolds. |
Tolerance stacking destroys dimensional accuracy in multiple-setup manufacturing. Every time a machinist touches a part to flip it, mathematical error compounds. The typical sequence of error accumulation looks like this:
The operator unclamps the part, releasing residual stress and allowing the metal to spring slightly.
Chips or microscopic coolant debris settle onto the fixture plate, creating a non-flat seating surface.
The operator clamps the part again, applying uneven torque across the hold-down bolts, inducing slight physical warpage.
The spindle probe picks up the new datum zero, but edge-finding inherently carries a ±0.0001” margin of error.
If each setup introduces a 0.0005-inch deviation, running three separate operations yields a total potential stack of 0.0015 inches. That variance fails AS9100 inspection standards for bearing bores or mating seals. Continuous multi-axis operations provide a "done-in-one" solution. Clamping the raw stock once and machining all five visible sides locks the geometric relationship between every single feature. Securing this foundational true-position accuracy is non-negotiable when producing aerospace precision prototypes.
Thin-walled aerodynamic structures demand specific toolpath strategies like barrel milling and flank milling. These techniques maximize the contact area between the tool's cutting edge and the airfoil wall. A barrel mill features a massive sweep radius on its profile. It sweeps away large amounts of material while leaving an exceptionally smooth scallop height, cutting finishing time by up to 80%.

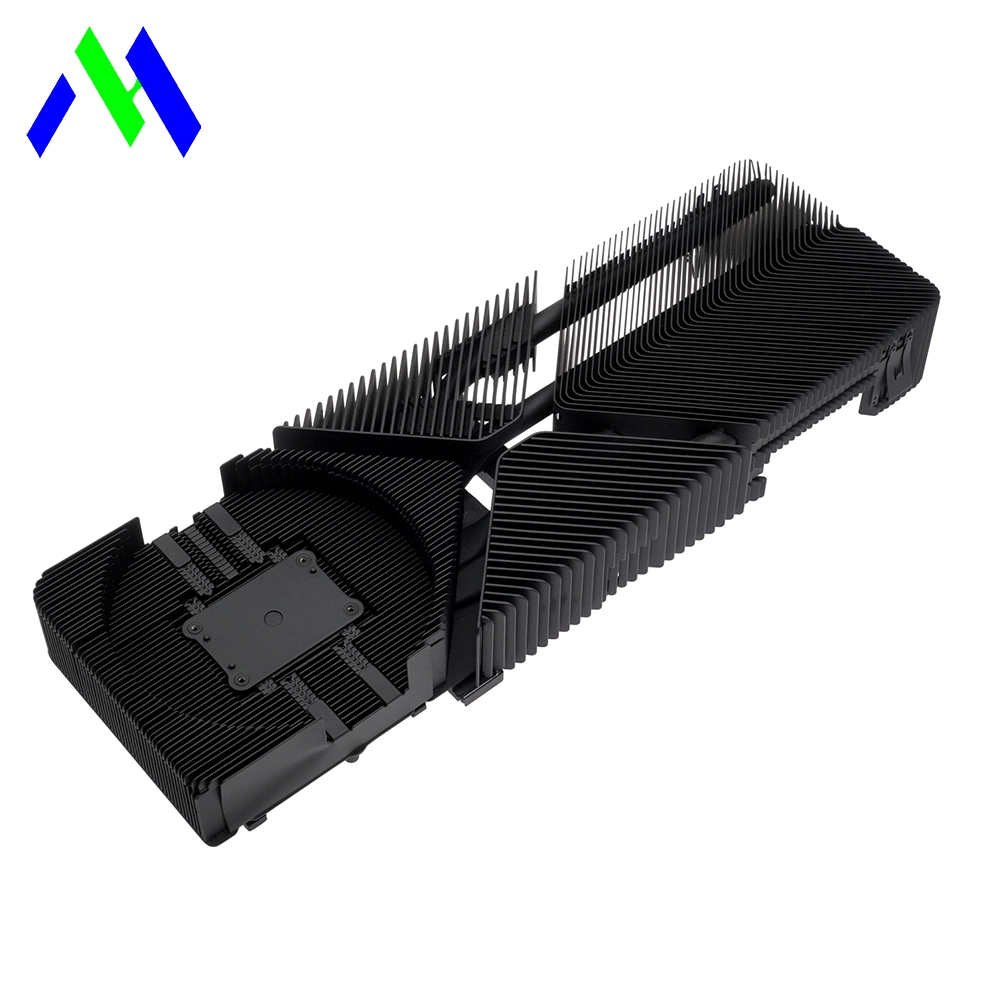

Machining unsupported, paper-thin features introduces severe deflection risks. High cutting forces act like a lever against a thin metal fin, pushing the material away from the endmill. If the fin deflects, the tool cuts air, resulting in undersized features. Continuous toolpaths manage these forces delicately through alternate-flute cutters and shallow radial step-overs. By getting the geometry right on the machine, you eliminate the need for manual benching. Hand-polishing alters the mathematical profile of an airfoil, ruining aerodynamic data.
Aerospace hardware frequently features deep internal pockets, weight-saving hollows, and hidden undercuts. You deploy advanced multi-axis CNC milling to reach these internal features seamlessly. Without these capabilities, shops resort to sinker EDM (Electrical Discharge Machining) to burn out the inaccessible cavities. EDM introduces recast layers and heat-affected zones (HAZ) into the metal, which structural engineers often reject due to fatigue life concerns.
Reaching deep compound angles requires highly specialized tooling assemblies. Machinists use lollipop cutters and extended-reach shrink-fit tool holders. A tool sticking out six inches from the spindle nose acts like a tuning fork. It introduces severe runout and chatter risks. Overcoming this requires precision-balanced holders (G2.5 at 20,000 RPM) and specific resonant-frequency dampening tool bodies to ensure internal cavities meet drawing dimensions.
The emerging electric vertical takeoff and landing (eVTOL) sector moves at a blistering pace. Hardware iteration cycles happen in weeks, not years. Simultaneous machining supports this rapid prototyping demand. Engineers test a physical motor mount on a Monday, identify a stress failure, update the CAD geometry by Tuesday, and receive a revised machined part by Friday.
This agility directly fuels aggressive lightweighting. A single complex CNC component carved from a solid block of 7075-T6 aluminum acts as a monolithic bracket, replacing clunky assemblies held together by dozens of rivets and fasteners. Consolidating sub-assemblies into single milled parts saves weight, boosts battery payload capacity, and simplifies the final supply chain.
Holding tight dimensions in a production environment is a brutal, physical challenge. Slapping a ±0.0005” tolerance on a blueprint is easy. Executing it in hardened steel requires complete mastery over the machine tool and the physical environment. A ±0.0005” variance is roughly one-sixth the thickness of a human hair. At this microscopic scale, environmental factors become your biggest enemy.
Thermal Expansion: A 5-degree temperature swing on the shop floor can expand a 12-inch aluminum billet by 0.0008 inches, instantly blowing the tolerance.
Foundation Vibration: Nearby stamping presses or forklifts transmit low-frequency vibrations through the concrete pad, introducing chatter into finishing passes.
Spindle Growth: Running a spindle at 15,000 RPM generates internal heat, causing the Z-axis nose to grow downward by several tenths over a two-hour cycle.
Heavy stock removal generates massive friction. Heat transfers into the workpiece, causing localized expansion. As the machine cuts a thin wall, the expanding metal bulges toward the cutting edge. The tool shears away this expanded metal. Once the part cools and shrinks back to room temperature, the machined wall measures undersized.
High-end facilities deploy aggressive thermal mitigation. High-pressure through-spindle coolant systems pump fluid at 1,000 PSI directly through the center of the cutting tool. This fractures the hot metal chips and blasts heat away from the cut zone instantly. Programmers utilize trochoidal milling paths to maintain a constant, exceptionally shallow radial engagement, preventing heat buildup entirely. Modern CNC controllers monitor internal temperatures and apply real-time thermal compensation algorithms to adjust axis positioning on the fly.
Aerospace flight hardware requires perfect internal surface integrity. Poor feeds and speeds induce micro-cracking, residual stress, or metallurgical phase transformations. Machining titanium too aggressively generates excessive heat, creating an oxygen-enriched, brittle layer on the surface known as alpha-case. This layer causes premature structural failure.
You must ensure prototypes are cleanly sheared, not smeared or rubbed. A smeared surface finish acts as a mask during fluorescent penetrant inspection (FPI). The smeared metal folds over microscopic surface cracks, preventing the penetrant dye from seeping in. Optimizing finishing passes guarantees the underlying microstructure remains fully intact and passes all subsequent X-ray and NDT evaluation.
Titanium and Inconel offer extreme strength-to-weight ratios and high-temperature resistance. They are notoriously difficult to cut because they possess very low thermal conductivity. In aluminum machining, the metal chip absorbs the heat and carries it away. In titanium machining, the heat reflects directly back into the carbide tool. This localized heat melts the cobalt binder in the carbide, cratering the cutting edge in minutes.
Superalloys also exhibit rapid work-hardening characteristics. If a tool rubs against the surface because the feed rate is too low, the metal instantly hardens. The next cutting pass hits a localized zone of rock-hard material, shattering the endmill. To execute industrial prototype machining successfully on these alloys, vendors use physical vapor deposition (PVD) coatings like TiAlN and maintain aggressive, consistent chip loads to stay ahead of the work-hardened zone.
Aluminum serves as the primary material for structural fit-checks, wind tunnel models, and non-flight-critical avionics housings. Aerospace-grade aluminum permits High-Speed Machining (HSM) parameters. Spindles run at 30,000 RPM, feeding at 400 inches per minute, clearing massive volumes of material to deliver hardware rapidly.
However, aggressive material removal unlocks internal residual stress. Aluminum forgings contain stress trapped during the initial quenching process. As you carve away 80% of the bulk block, the remaining thin structure warps unpredictably. Machinists combat this using a rough-rest-finish staging strategy. They rough out the bulk shape leaving 0.100” of extra material. They completely unclamp the part, letting it twist and relax on the table. They then re-fixture it with minimal torque for the final precision finishing passes.
Flight hardware leaves no room for ambiguous quality control. AS9100 Rev D certification is a hard requirement for any aerospace supplier, dictating a flawless, auditable quality management system. ITAR registration legally protects your sensitive defense-related CAD models and intellectual property from foreign access.
You must demand unbroken material traceability. Counterfeit titanium entering the aerospace supply chain compromises flight tests and human life. Vendors must supply certified Material Test Reports (MTRs) directly from the foundry. End-to-end lot traceability ensures that every finished prototype links directly back to the original raw material heat lot number.
The machine tool only executes what the G-code dictates. Elite manufacturing shops utilize advanced CAM packages like Mastercam, HyperMill, or Siemens NX to generate highly optimized, collision-free multi-axis toolpaths. Programming these paths requires specialized engineering labor.
Before a machine operator presses cycle start, the vendor must validate the program offline. Kinematic machine simulation software, such as VERICUT, provides a digital twin of the machining center. It simulates the exact machine kinematics, tool holder lengths, and workholding clamps. This software detects gouges, prevents catastrophic spindle crashes, and eliminates the risk of scrapping $5,000 blocks of Inconel.
Do not wait until the part leaves the machine to measure dimensions. Renishaw spindle probes execute on-machine verification. The probe touches critical bores and faces before the part is un-fixtured. If a bearing bore measures 0.0002 inches undersized, the controller automatically offsets the tool wear parameter and recuts the bore immediately while alignment remains perfectly intact.
Final validation requires an independent, climate-controlled Coordinate Measuring Machine (CMM). The prototype must undergo rigorous physical inspection using ruby-tipped touch probes. You require a comprehensive CMM report mapped to AS9102 First Article Inspection (FAI) standards as definitive proof of accuracy before moving the hardware into assembly.
Procuring 5-axis CNC machining prototypes inherently carries premium pricing. Analyze the cost drivers. Non-Recurring Engineering (NRE) programming time often costs more than the actual spindle cutting time, especially for parts requiring custom dovetail fixtures and complex 5-axis sweeps.
Navigate these costs strategically during the early R&D phases. When testing geometric clearances, wire routing, or assembly stack-ups, prototype the design in a cheaper surrogate material like 6061 aluminum or high-density RenShape tooling board. Validate the form and fit first. Once the engineering team locks the CAD model, execute the final costly prototype in the intended titanium or superalloy specification.
Compile all native CAD models and fully annotated 2D drawings into a secure technical data package.
Explicitly define all material specifications, required heat-treat conditions, and lot traceability documentation requirements on your purchase order.
Annotate critical-to-function (CTF) dimensions, specific NDT surface finish limits, and inspection reporting standards directly on the 2D prints.
Request sanitized AS9102 First Article Inspection reports from prospective vendors to verify their past metrology performance on aerospace hardware.
A: Lead times generally vary from 2 to 6 weeks. The schedule depends heavily on raw material availability, especially for exotic superalloys like Inconel or specialized titanium billets. Highly complex CAM programming, custom fixture design, and mandatory AS9102 CMM inspection reporting also extend delivery schedules.
A: Simultaneous multi-axis milling moves all five axes concurrently to maintain optimal, continuous tool contact on sweeping curved surfaces. Conversely, 3+2 machining locks the part in a fixed tilted position. This requires multiple index changes, which inherently induce tolerance stacking errors and leave detrimental blend marks on aerodynamic profiles.
A: The primary cost drivers include highly specialized CAM programming labor and expensive hourly machine rates. Additionally, the process demands rigorous digital twin simulation to prevent spindle crashes, precision-balanced tooling, custom dovetail workholding, and extensive climate-controlled metrology validation.
A: Yes, but success depends entirely on the specific equipment. Machining superalloys requires massive trunnion rigidity, high spindle torque, and high-pressure through-spindle coolant setups. It relies heavily on the programmer's expertise in feed and speed optimization to prevent rapid material work-hardening.
A: You must receive a comprehensive documentation packet. Standard requirements include certified Material Test Reports (MTRs) directly from the mill, a formal Certificate of Conformance (CoC), and a detailed CMM inspection report mapped directly to AS9102 First Article Inspection (FAI) standards.
A: Not always. If your component geometry lacks complex organic contours, deep undercuts, or multi-sided true-position tolerances, traditional 3-axis machining will likely be much more cost-effective and significantly faster for that specific manufacturing task.
