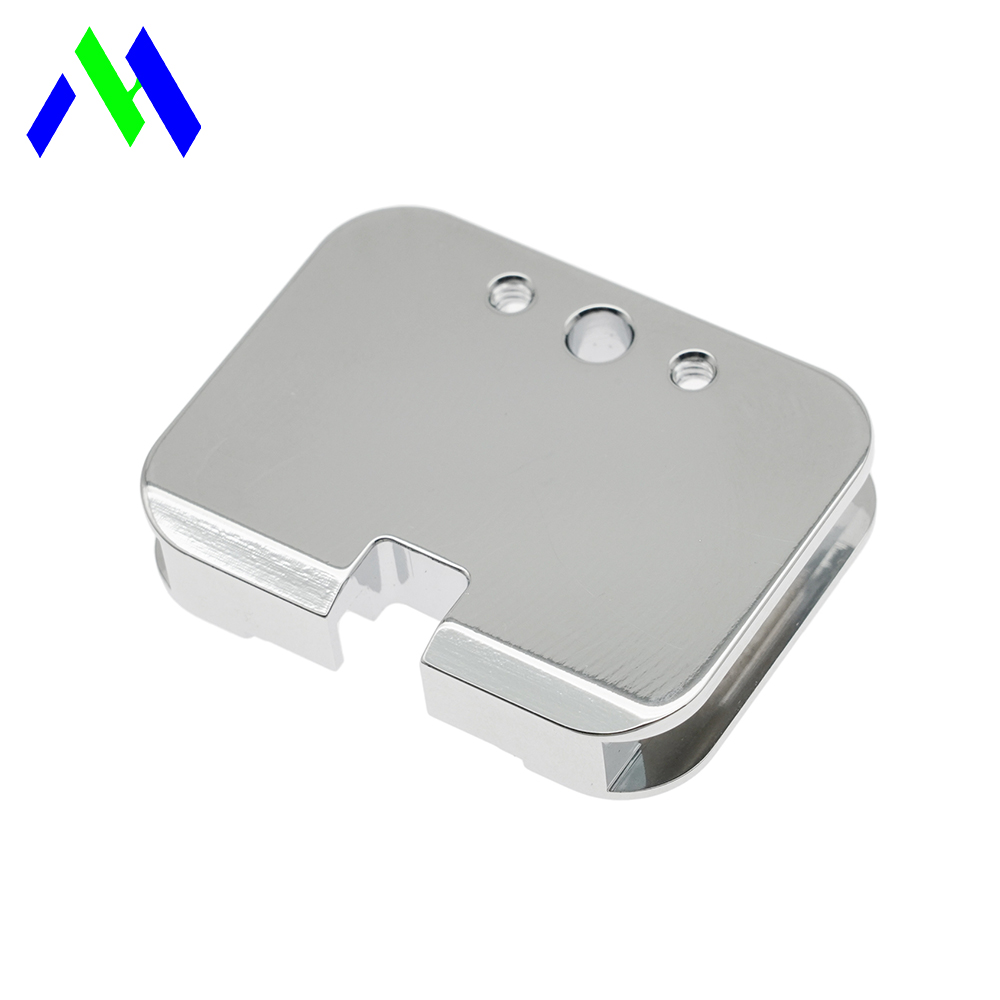

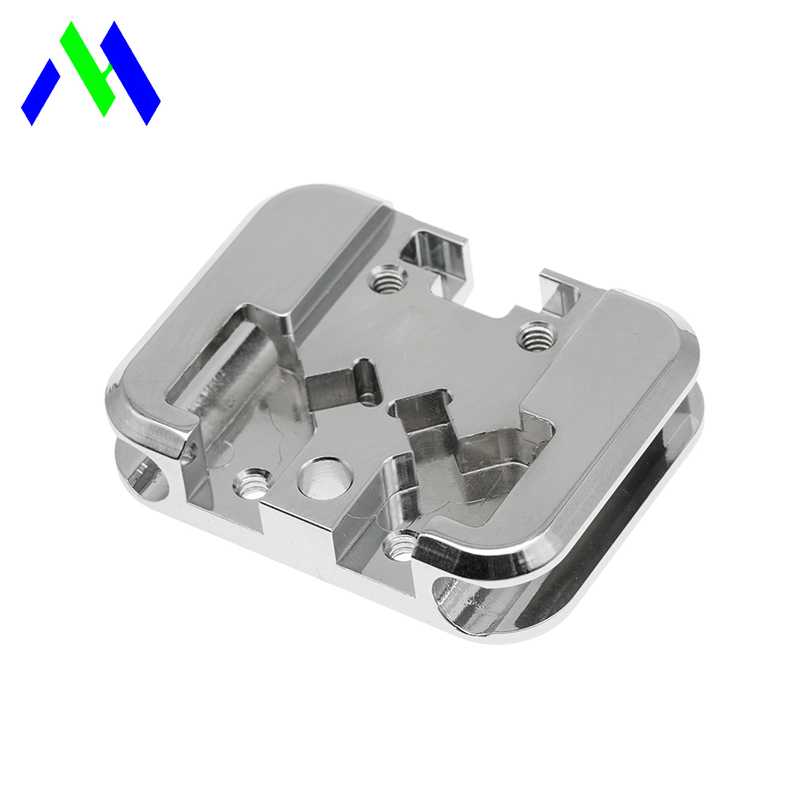

Every manufacturing engineer faces a core dilemma during procurement. Over-specifying machine capabilities leads to severely inflated budgets. Conversely, under-specifying causes frustrating lead-time delays and risky tolerance stack-ups. The 3-axis mill remains the absolute backbone of standard general manufacturing. However, the demand for 5-axis CNC machining parts has surged recently. Strict requirements in aerospace, medical device fabrication, and advanced automotive sectors drive this major shift. This article delivers a hard-numbers, shop-floor reality check for engineers and procurement teams. You will discover exactly when to pay the premium for advanced 5-axis capabilities. We will also outline when sticking to a reliable 3-axis process is the smarter, more profitable choice for your project. By analyzing equipment realities, you can protect your manufacturing margins.
Cost vs. Capability: 5-axis machines eliminate multiple setups but carry significantly higher capital, CAM software, and specialized labor costs.
Precision Realities: "Single-setup" 5-axis routing prevents the cumulative tolerance errors that plague multi-setup 3-axis jobs.
The "Overkill" Trap: True simultaneous 5-axis is rarely needed; most complex parts are efficiently produced using 3+2 indexing.
Inspection Bottlenecks: Designing for 5-axis means traditional CMM validation becomes harder; GD&T reference frames require specialized probing.
Standard 3-axis machining relies on three primary linear directions. The cutting tool moves along the X-axis (left to right), the Y-axis (front to back), and the Z-axis (up and down). It handles 2.5D and standard 3D parts exceptionally well. You will see this method used constantly to produce flat panels, electronic enclosures, and simple structural brackets. It remains the dominant force in general manufacturing because it offers reliable, highly repeatable output for straightforward geometries.
However, you must account for its primary mechanical limitation. Tool access remains strictly vertical at all times. If a part features undercuts or requires holes on multiple sides, the machine cannot reach them automatically. Operators must stop the cycle, unclamp the workpiece, manually flip it, and re-establish the zero point. Every manual intervention slows down production and introduces room for alignment errors.
Best Practices for 3-Axis Design:
Align all critical tolerances to a single setup face.
Avoid designing deep pockets which require excessively long end mills.
Standardize internal corner radii to match common cutting tool diameters.
Advanced 5-axis platforms build upon the standard X, Y, and Z configuration by adding two rotational axes. These are typically designated as the A, B, or C axes. They allow the spindle or the worktable to pivot, granting the cutting tool access to almost any angle on the workpiece.
You must understand one crucial distinction in 5-axis capabilities. Many shops utilize 3+2 Indexing (Positional) machining. In this mode, the machine rotates the part to a specific angle and locks the axes rigidly before the cutting tool engages. The actual cutting still occurs in just three linear axes. In contrast, Simultaneous 5-Axis (Continuous) machining interpolates all five axes at the exact same time. The tool and the part move fluidly together to carve sweeping, highly organic contours.
Maintaining precision during continuous movement requires immense hardware rigidity. You cannot simply bolt a 5-axis trunnion onto a weak frame. 5-axis equipment demands high-mass, FEM-analyzed machine beds. Builders incorporate direct-drive servos and advanced encoders to maintain strict dynamic compensation while heavy machine components swing through the air.
Baseline hardware costs differ massively between these two technologies. A reliable new 3-axis mill generally costs between $25,000 and $50,000. True 5-axis machines demand a far steeper initial investment. You should expect prices ranging from $80,000 to well over $500,000 for continuous 5-axis capability. The operational footprint also expands considerably. 5-axis centers consume significantly more electrical energy to drive their simultaneous servos. They also require highly specialized spindle cooling systems to manage the intense heat generated during complex, long-cycle continuous cuts.
Procurement teams often underestimate the hidden software and labor expenses attached to complex geometry machining. Advanced CAM software is mandatory. Shops must purchase premium licensing for high-end platforms like Catia or Siemens NX to generate safe 5-axis toolpaths. Additionally, you must pay for meticulous post-processor calibration to ensure the software communicates perfectly with the specific machine controller.
The labor market dictates strict realities on the shop floor. Standard 3-axis operators are relatively easy to source, train, and retain. In stark contrast, 5-axis programmers command a massive salary premium. They possess rare, highly sought-after expertise in collision-avoidance simulation. They must rigorously validate complex machine kinematics digitally before a single physical chip is cut. A simple programming oversight in 5-axis machining causes catastrophic, expensive spindle crashes.
Standard 3-axis jobs rely on basic, cost-effective mechanical vises. 5-axis setups operate under completely different spatial constraints. The massive spindle head must clear the machine bed and the fixture itself during steep angular rotations. Therefore, 3-axis vises rarely work. 5-axis manufacturing requires expensive, custom zero-point clamping systems. Shops frequently utilize elevated dovetail fixtures to lift the raw material away from the table. This guarantees safe clearance but adds engineering time and physical cost to every new job setup.
Manual realignment plagues standard 3-axis projects. Every time an operator stops the machine to flip a part, a microscopic alignment deviation occurs. Over the course of three or four setups, these individual deviations stack up. This creates severe tolerance failure on critical dimensions. Single-setup machining solves this problem entirely. The machine references a single datum point for the whole operation. Preventing stack-up errors is absolutely non-negotiable for producing high precision 5-axis parts meant for aerospace or surgical applications.
Multi-axis capabilities profoundly change cutting physics. Because the spindle can tilt, the machine maintains a perfectly optimal angle of engagement between the tool and the material surface. This allows operators to run much shorter, highly rigid cutting tools instead of long, vibrating end mills.
Shorter tools resist deflection. Decreased tool deflection directly eliminates chatter and vibration. You experience lower cutting forces across the entire component. The result is a dramatically superior surface finish. We see this distinct advantage particularly during 5-axis aluminum machining, where aesthetic and functional surface requirements are high. Furthermore, maintaining an optimal angle keeps the chip load constant. Consistent chip load significantly extends the lifespan of expensive carbide cutting tools.
Manufacturing a complex part represents only half the battle. Quality assurance teams face harsh compliance realities afterward. 5-axis parts frequently feature compound curves and organic geometries. They completely lack traditional flat datum surfaces for easy measurement. Standard calipers, height gauges, and basic inspection tools become entirely useless.
Quality departments must invest heavily in advanced multi-axis CMM (Coordinate Measuring Machine) probes. In many scenarios, optical laser scanning provides the only reliable way to verify strict GD&T (Geometric Dimensioning and Tolerancing) reference frames. This highly specialized inspection process adds measurable complexity and time to your overall production lead time.
Skeptical buyers often save manufacturing facilities from costly missteps. You must evaluate parts objectively. If a component can be completed on a standard 3-axis mill using just two simple setups, forcing it onto a 5-axis machine drags down overall shop throughput. Blind reliance on 5-axis technology creates severe workspace interference. The massive trunnion tables inherent to 5-axis machines drastically limit the maximum part size you can fit inside the enclosure. You end up paying a premium hourly rate to cut smaller, simpler parts.
Common Mistakes in 5-Axis Procurement:
Assuming 5-axis automatically means faster cycle times for basic flat parts.
Failing to account for the expensive custom dovetail fixturing required.
Neglecting to upgrade the QA department's capability to inspect complex geometry.
An excellent middle ground exists for many production environments. Many shops equip a heavy-duty 3-axis mill with a 4-axis tombstone attachment or rotary table. This smart configuration effortlessly handles up to 95% of multi-sided part requirements. It allows operators to machine four distinct sides of a part in a single continuous setup. You achieve excellent geometric alignment at a mere fraction of the capital cost required for a full simultaneous 5-axis center.
Certain geometries easily trick buyers into thinking they require 5-axis milling. Cylindrical parts featuring complex milled pockets or cross-holes fall directly into this trap. A mill-turn center presents a vastly superior alternative. It combines high-speed lathe-style turning with live milling tools on the turret. This hybrid approach drastically outperforms standard 5-axis mills for round components, producing perfect concentricity without custom milling fixtures.
You should default to 3-axis manufacturing whenever part features align naturally to orthogonal X, Y, and Z planes. Keep your strict tolerances highly localized. Group them onto features you can machine in a single operation to avoid stack-up issues. 3-axis wins decisively when strict budget constraints outweigh the need for ultra-fast lead times on multi-sided parts. By applying basic Design for Manufacturability principles, you easily avoid unnecessary premium machining rates.
The premium investment justifies itself under specific engineering conditions. Look for the mandatory presence of deep cavities, compound sweeping angles, or severe undercuts. 5-axis becomes strictly mandatory when facing aerospace or medical traceability mandates. In these highly regulated sectors, single-setup processing guarantees the absolute integrity of the part's coordinate system. Finally, choose this route when your production volume easily scales to absorb the heavy upfront CAM programming and simulation investment.
Criteria | 3-Axis | 3+2 Indexing | Continuous 5-Axis |
|---|---|---|---|
Setup Time | High (Multiple manual flips) | Low (Single setup) | Low (Single setup) |
Programming Complexity | Low | Medium | Extremely High |
Geometric Capability | Basic 2.5D and 3D | Multi-sided features, angular holes | Organic sweeping curves, deep undercuts |
Single-Part Cost | Low | Medium | High |
Volume Scaling Efficiency | Moderate | High | Very High |
Operator Skill Required | Entry to Mid-Level | Mid to Advanced Level | Highly Specialized Expert |
Axis count never serves as a direct proxy for "better" manufacturing. It represents a strict calculation of production volume, tolerance strictness, and specific part topology. High-axis machines beautifully solve complex alignment issues but introduce massive programming and inspection hurdles. We strongly encourage engineers and procurement teams to conduct a thorough DFM review early in the design phase. Consult closely with your manufacturing partners to analyze feature alignment thoroughly before finalizing any RFQ.
A: Yes. A 3-axis machine cuts 3D shapes through continuous surface interpolation of the X, Y, and Z axes. However, it cannot physically reach undercuts or cut features into the sides of the part without an operator stopping the cycle to manually refixture the material.
A: It comes down to setup efficiency. Eliminating the manual labor required for multiple setups drastically reduces non-machining downtime. For highly complex parts, this massive reduction in setup time completely offsets the higher hourly machine rate, lowering the final unit cost.
A: In 2.5-axis machining, the X and Y axes move together freely, but the Z axis locks at a specific depth during the cut. It cuts in flat layers. True 3-axis machining interpolates the X, Y, and Z axes simultaneously to create smooth, sloped 3D contours.
