Modern precision manufacturing constantly pushes boundaries. Standard milling eventually hits a wall when components shrink or metals harden. Traditional machining often hits physical limits when dealing with ultra-hard materials, microscopic internal radii, or delicate thin-walled structures. Tool pressure causes deflection. Heat distortion ruins tight tolerances. Mechanical stress easily warps fragile components.
Wire Electrical Discharge Machining (Wire EDM) bypasses physical cutting forces entirely. It utilizes electrical sparks to erode conductive materials with sub-micron precision. This zero-contact method fundamentally changes how you approach complex geometric designs.
Our comprehensive guide helps engineers and procurement teams evaluate this advanced technology. You will learn if it fits your stringent tolerance requirements. We also explore how to evaluate and source reliable production partners successfully.
Wire EDM is a zero-contact process, meaning no mechanical stress or tool deflection, making it ideal for fragile or ultra-hard materials (e.g., carbide, titanium).
Tolerances can routinely hold at ±0.0001 inches (±2.5 microns) with superior surface finishes that often eliminate the need for secondary polishing.
The process is restricted to conductive materials and generally features slower material removal rates than traditional milling, requiring strategic cost-benefit analysis for high-volume production.
Sourcing reliable suppliers requires auditing their facility climate control, wire selection, and coordinate measuring machine (CMM) inspection capabilities.
The system relies on a continuously spooled, electrically charged wire. Manufacturers typically use brass or stratified copper for this wire. The machine submerges both the wire and the workpiece in a dielectric fluid. Deionized water usually serves this purpose. The machine brings the wire close to the conductive material. This proximity creates a controlled channel of electrical sparks. These sparks reach extreme temperatures, easily vaporizing microscopic particles of the metal. The dielectric fluid rapidly cools the area. It then flushes the vaporized particles away. You achieve highly precision EDM cutting through this continuous vaporization cycle.
Physical contact creates problems in traditional machining. End mills push against the metal. This force causes tool deflection. It leaves burrs on the workpiece. Wire EDM eliminates physical contact completely. The wire never actually touches the material. The spark gap does all the work. This lack of physical contact means zero mechanical stress transfers to the part. You experience zero tool deflection. The workpiece remains completely burr-free. We highly recommend this process for extremely fragile, thin-walled structures. They simply cannot survive the aggressive forces of conventional milling.
We must acknowledge the metallurgical realities of this process. EDM is fundamentally a low-stress operation. However, the localized thermal process creates a microscopic recast layer. Industry experts sometimes call this the white layer. Rapid heating and quenching alter the metal's surface structure at a microscopic level. You might find this recast layer problematic in highly critical aerospace or medical applications. Modern generators allow operators to utilize specific pulse settings. These settings minimize the recast layer significantly. You must discuss recast limits early in your design phase.
Material hardness heavily dictates cutting speed in traditional milling. Harder metals destroy standard end mills rapidly. Wire EDM ignores material hardness entirely. The electrical erosion process cares only about electrical conductivity. You can process raw aluminum or fully hardened D2 tool steel at roughly similar speeds. We see immense value here for metals treated to HRC 45 and above. You cut the metal after the heat treatment process. This strategy eliminates any risk of heat-treatment distortion ruining your final dimensions.

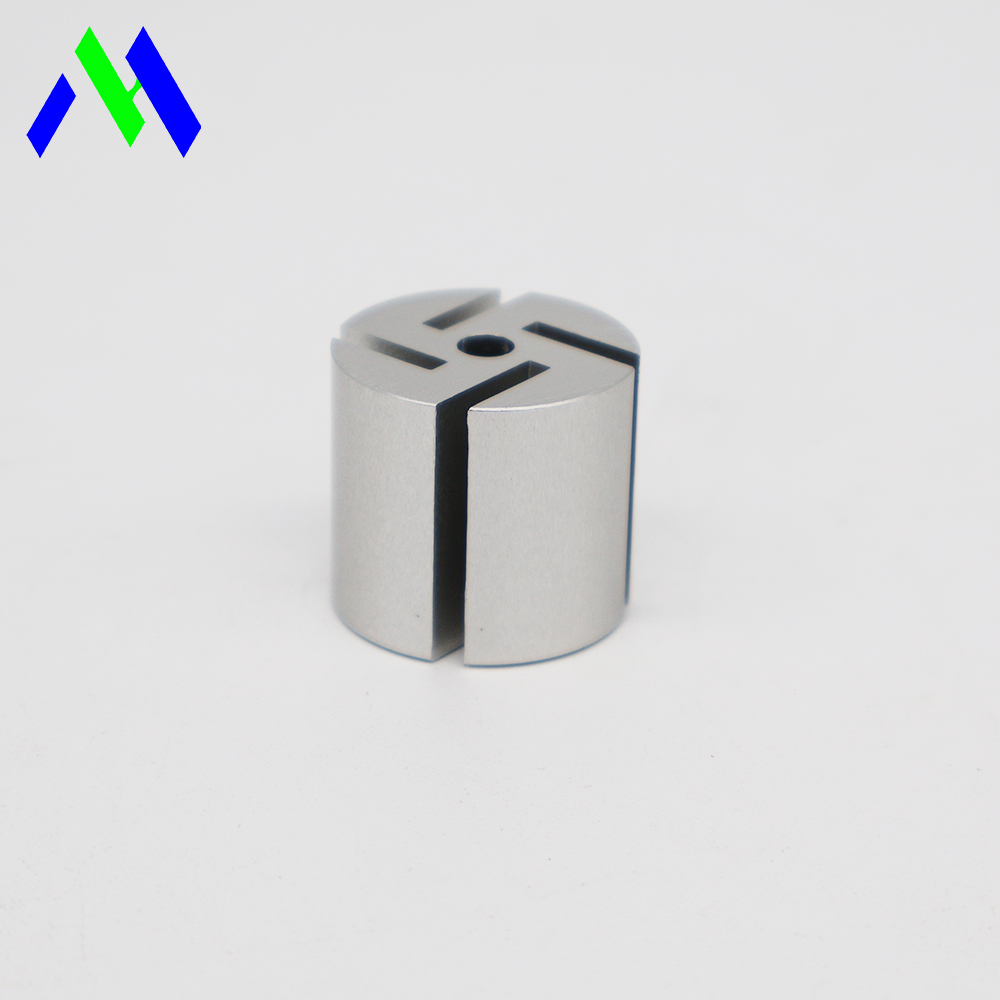

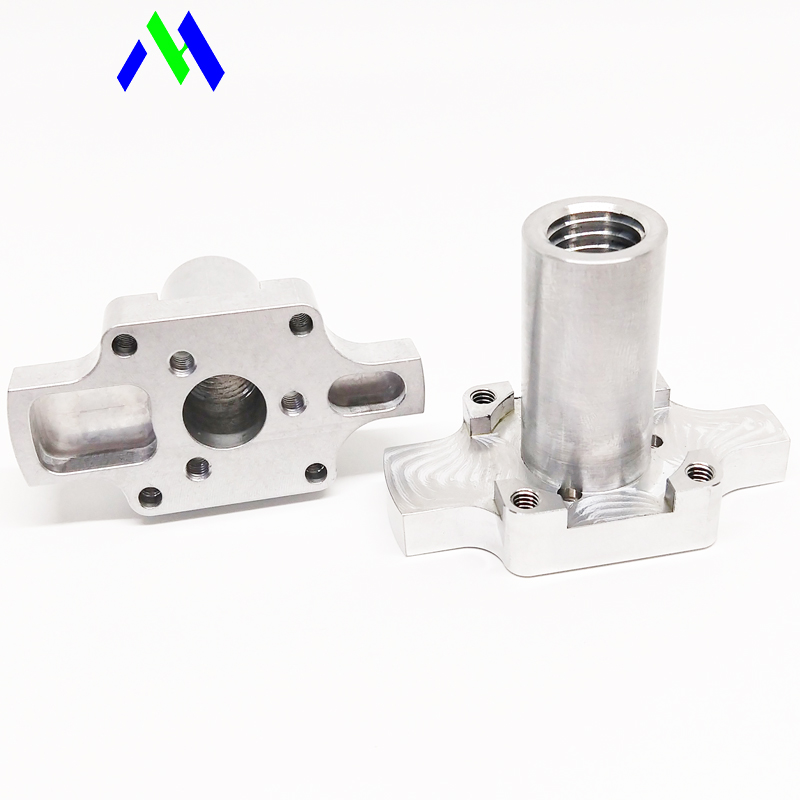

Certain geometric constraints make traditional machining impossible. You solve these specific design constraints easily when you specify fine CNC Wire EDM parts. Consider the following structural challenges:
Sharp inside corners: Standard end mills leave a radius matching the tool size. Wire EDM creates inside radii as small as the wire diameter itself (often 0.004 inches).
High aspect ratios: The process excels at deep cuts. You can achieve extremely narrow kerfs through thick blocks of steel.
Tapered walls: Modern machines tilt the wire independently. This capability seamlessly produces complex extrusion dies and varying draft angles.
You must contrast Wire EDM against competing technologies realistically. Below is a practical breakdown comparing it against 5-Axis CNC and Laser cutting.
Process | Primary Strength | Material Thickness Limitation | Typical Tolerance Level |
|---|---|---|---|
Wire EDM | Ultra-hard metals, zero mechanical stress, stacked plates. | Excellent up to 16-24 inches depending on flushing. | ±0.0001 inches |
5-Axis CNC Milling | Rapid material removal, blind pockets, 3D surface profiling. | Limited only by machine envelope and tool reach. | ±0.0005 to ±0.002 inches |
Laser Cutting | High-speed profiling of thin sheet metal. | Struggles beyond 1 inch (tapering occurs). | ±0.002 to ±0.005 inches |
Laser cutting operates much faster for thin sheet metal. However, you need Wire EDM for thick, high-tolerance stacked plates. Laser cutting also introduces a severe heat-affected zone (HAZ) distortion. Wire EDM avoids this severe distortion.
The process has one absolute requirement. The material must be electrically conductive. If electricity cannot flow through the workpiece, the sparks will not form. You cannot cut standard plastics, glass, or traditional ceramics. However, the process dominates in challenging industrial metals. Common applications highlight Inconel, Monel, Tungsten Carbide, Titanium, and heavy-duty Tool Steels. These superalloys represent nightmares for conventional cutting tools. The wire simply glides through them.
Standard tolerances typically sit around ±0.0005 inches. High-precision applications push these boundaries further. You can routinely hold tolerances at ±0.0001 inches. Surface finish capabilities also impress engineers globally. You measure surface roughness in Ra values. The initial rough cut leaves a slightly textured surface. Operators then perform multiple "skim passes". The machine lowers the power and runs the wire back over the cut surface. These skim passes improve the finish dramatically. They enhance accuracy and often eliminate any need for secondary hand-polishing.
You must address several design risks early. First, consider internal closed-loop cuts. The wire cannot magically appear inside a solid block. You must pre-drill a starter hole. Manufacturers typically use a hole-popper EDM for this step. They thread the wire through this hole before cutting begins. Second, evaluate part thickness. The dielectric fluid must flush away the vaporized debris constantly. Part thickness heavily impacts this flushing efficiency. If you design parts thicker than 12 inches, fluid pressure drops in the middle of the cut. This poor flushing leads to wire breakage and surface imperfections.
You must acknowledge the speed limitations frankly. Wire EDM features a slow material removal rate. End mills hog out cubic inches of metal per minute. The wire slowly erodes fractions of an inch. You trade speed for uncompromising accuracy. This slower cycle time scares some procurement teams initially. They see higher hourly machining rates and hesitate.
You must look beyond raw cycle times. The process offsets its slower speeds through several powerful cost efficiencies:
Zero custom tooling: You never buy specialized profile cutters. The wire acts as a universal cutting tool for every contour. You save thousands on custom fixturing.
Batch efficiency: You can stack multiple thin plates together. The machine cuts ten plates simultaneously. This stacking technique multiplies your output without adding machine time.
Elimination of secondary operations: The part comes off the machine perfectly smooth and burr-free. You completely eliminate expensive deburring, grinding, and polishing stages.
This process does not fit every volume tier. You should avoid it for producing millions of simple washers. Instead, aim for specific volume sweet spots. It works beautifully for rapid prototyping. It suits low-to-medium volume production runs perfectly. It remains the gold standard for creating custom tooling and extrusion dies. Finally, you should mandate it for highly critical, high-value components where failure is unacceptable.
You cannot achieve sub-micron precision in a hot warehouse. Thermal expansion destroys tight tolerances instantly. A five-degree temperature swing can expand a metal block significantly. Therefore, a top-tier vendor must operate a strictly temperature-controlled facility. Ask potential partners about their climate control systems. If their shop floor temperature fluctuates throughout the day, their precision will fluctuate too.
Modern equipment matters immensely. Ask suppliers about their automated threading capabilities. When a wire breaks during an overnight run, automated threading systems re-thread the wire instantly. This keeps production moving without human intervention. You also need to discuss routine dielectric fluid maintenance. Dirty water conducts electricity poorly. It degrades cutting speeds and ruins surface finishes. Reliable suppliers monitor their water conductivity levels constantly. They change filters rigorously.
Trust requires verification. To guarantee the integrity of your Wire EDM machining parts, you must demand robust quality assurance. Buyers must demand advanced CMM (Coordinate Measuring Machine) validation. Ensure their CMM sits in a dedicated, climate-controlled metrology lab. Look for AS9100 or ISO 9001 certifications. These frameworks prove they follow strict procedural guidelines. Finally, insist on documented First Article Inspections (FAI). You need definitive proof before full production begins on your high accuracy wire cut parts.
Wire EDM is not a blanket replacement for standard milling. You should use conventional CNC machines for rapid material removal on standard geometries. Instead, treat this zero-contact technology as a specialized necessity. It solves your toughest engineering challenges. It easily handles complex geometries, ultra-hard metals, and uncompromising tolerances.
You must evaluate your designs critically. We encourage buyers to submit their 3D CAD models and 2D prints directly to manufacturing partners. Clearly indicate your critical tolerances on these files. Ask your supplier for a comprehensive DFM review. Request a precise cost-benefit breakdown. This proactive approach ensures you maximize precision while maintaining project budgets.
A: Standard machines typically cut materials up to 16 inches thick. Specialized tall-Z-axis machines can cut up to 24 inches or more. However, as thickness increases, flushing the dielectric fluid becomes harder. This reduced flushing efficiency slows down the cutting speed and slightly increases the risk of wire breakage.
A: No. The material must conduct electricity to create the spark gap. Standard ceramics, plastics, and glass will not work. A rare exception exists for highly specialized, electrically conductive ceramics designed specifically for advanced EDM applications.
A: Yes, it leaves a microscopic recast layer and a very thin heat-affected zone. The process relies on thermal vaporization. However, modern generators control spark energy precisely. Operators use lower-power skim passes to minimize this HAZ to nearly negligible levels for most industrial applications.
A: Standard industrial cutting usually relies on 0.010-inch or 0.012-inch wire diameters. For extremely intricate micromachining, you can use specialized micro-wires as thin as 0.001 inches (20 microns). These ultrafine wires require highly specialized machines and exceptionally clean dielectric fluid.
