Sourcing rotationally symmetric parts requires balancing strict geometric tolerances against scalable unit economics. Finding this balance challenges engineering teams daily. They must secure high precision without inflating production budgets. We define CNC turning briefly as a core subtractive process. Here, the workpiece rotates rapidly against a stationary cutting tool. This shapes the final component efficiently.
This guide serves as a pragmatic framework. Engineering teams and procurement professionals will learn to evaluate DFM constraints effectively. You will discover proven methods to control production costs. Furthermore, we outline how to assess manufacturing partners for critical components. By understanding these variables, you can transition designs from prototype to mass production smoothly.
Symmetry dictates process: Ideal parts follow cylindrical or radial profiles; non-symmetric features often require multi-axis turning centers or secondary milling.
DFM controls pricing: Adhering to specific guidelines—such as a Length-to-Diameter (L/D) ratio under 5:1 and standardizing bar stock—drastically reduces material waste and cycle times.
Micro-level tooling impacts macro-level costs: Advanced tooling materials and proper tool compensation directly affect machining efficiency and precision.
Supplier vetting goes beyond price: A reliable partner is evaluated on advanced metrology (CMM), statistical process control (SPC), and specific industry compliance (e.g., ISO 9001).
Understanding the fundamental mechanics separates effective procurement from costly guesswork. What separates turning from milling? In milling, the cutting tool spins to remove material. In turning, the raw material spins. We secure the bar stock inside a chuck. The main spindle drives it at high rotational speeds. A stationary cutting tool moves along linear axes. It shears away material to reveal the desired geometry.
Several core physical components dictate machine capability. You must understand them to evaluate a machine park accurately.
The Headstock: This houses the main spindle and drive mechanisms. It provides the rotational power necessary for heavy cutting.
The Chuck: This component grips the workpiece tightly. Hydraulic chucks provide consistent clamping force to prevent part slippage.
The Tailstock: For long parts, a tailstock provides crucial support at the opposite end. It prevents deflection and eliminates vibration during heavy cuts.
The Tool Turret: This holds multiple cutting inserts. It indexes rapidly to change tools between operations.
Equipment variations determine what you can manufacture. Standard 2-axis lathes move only along the X and Z axes. They handle simple cylindrical profiles beautifully. However, complex geometries demand more advanced equipment. Multi-axis CNC turning centers feature live tooling. They perform concurrent milling and drilling operations on the spinning part. This capability eliminates secondary machine setups entirely.
Swiss-type lathes excel at manufacturing long, slender components. They feed the bar stock through a guide bushing. The cutting tool operates mere millimeters from the support point. This unique setup eliminates vibration entirely. Conversely, heavy-duty vertical lathes handle large-diameter, heavy parts safely. Gravity seats the heavy workpiece securely in the chuck.
When evaluating a high-quality CNC turning service, baseline precision matters immensely. Set realistic expectations for advanced turning centers. Top-tier equipment achieves tolerances as tight as ±0.005mm. Operators hit these numbers consistently under optimal thermal conditions.

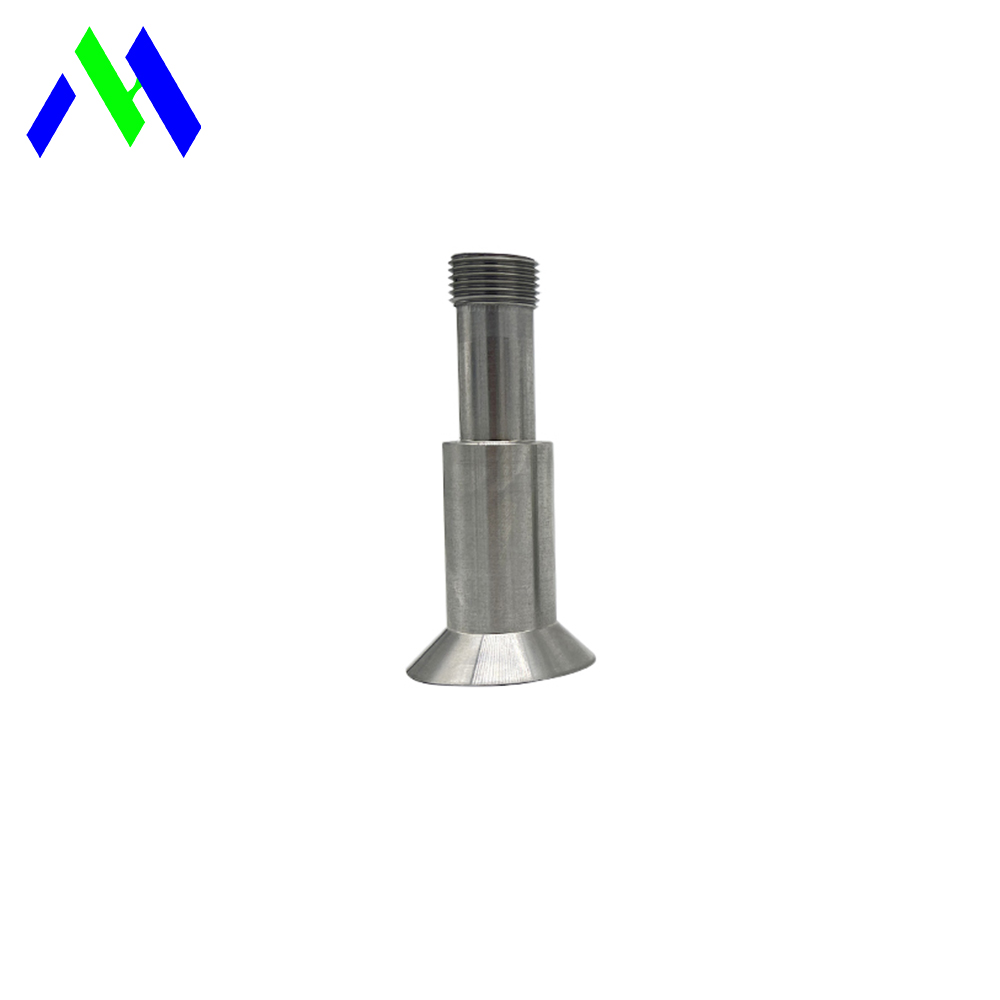

Not every part belongs on a lathe. You must assess geometry and symmetry early in the design phase. A simple rule of thumb helps identify suitable candidates quickly. Ask yourself: does the part resemble a cylinder, a shaft, or a disc? If so, it likely fits the process perfectly.

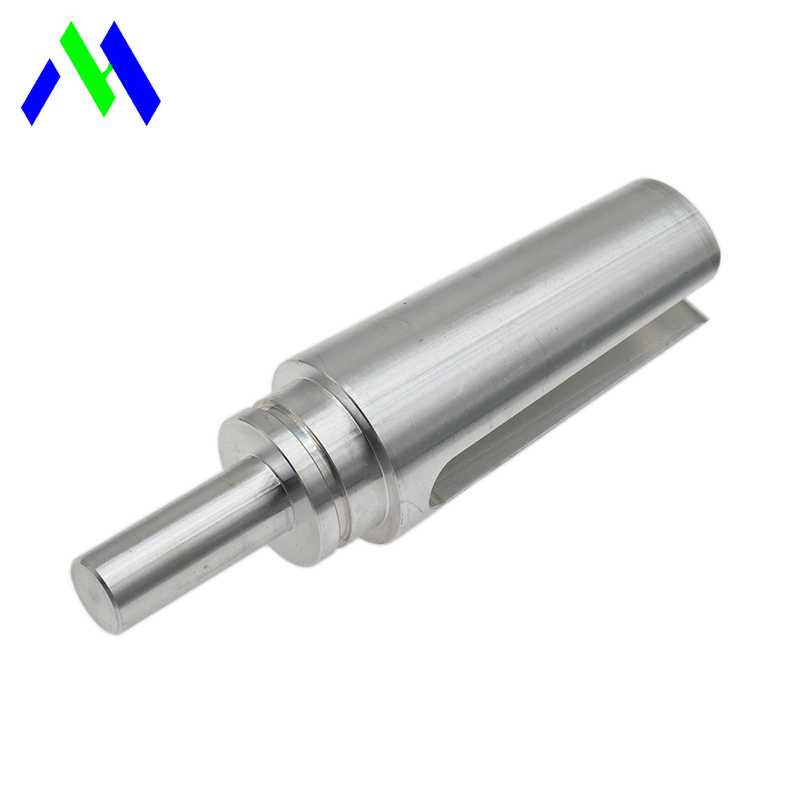

Suitable parts include fluid nozzles, drive shafts, and pipe flanges. They share a central axis of rotation. Unsuited parts cause major production headaches. Asymmetric housings waste valuable machine time. Components needing primarily flat-face machining belong on a traditional mill instead.
We see common functional applications across several demanding industries.
Power transmission: Axles, pulleys, and couplings transmit torque smoothly. They require perfect concentricity to prevent system vibration.
Fluid control and pneumatics: Valves, pistons, and custom fittings direct flow accurately. They demand flawless surface finishes to ensure tight O-ring seals.
Medical device manufacturing: Bone screws and precision surgical robot linkages save lives. They require strict traceability and biocompatible materials.
Material selection balances machinability against functional stress. Hard metals pose distinct challenges. Titanium and stainless steel require specific low-speed feed rates. They generate immense heat, demanding rigid machine setups and high-pressure coolant. Softer alloys machine rapidly. Aluminum and brass reduce cycle times and lower tool wear. Engineering plastics offer unique benefits. Nylon and PTFE resist harsh chemicals and reduce mechanical friction.
Material Category | Machinability | Functional Stress Resistance | Ideal Applications |
|---|---|---|---|
Hard Metals (Titanium, 316 SS) | Low (Requires low-speed feeds) | Extremely High | Medical implants, aerospace fasteners |
Soft Alloys (Aluminum 6061, Brass) | High (Enables rapid cycle times) | Moderate | Sensor housings, fluid fittings |
Engineering Plastics (PTFE, Nylon) | Very High (Requires sharp tooling) | Low to Moderate | Insulators, low-friction bushings |
Design for Manufacturability (DFM) controls the final price tag directly. Optimizing raw material utilization ranks first among best practices. Always base designs on standard bar stock diameters. This approach minimizes radial material waste. It also reduces cycle times significantly because operators remove less material. If your design requires tight tolerances, plan ahead. Leave a minimum 0.4mm machining allowance on the maximum outer diameter. This ensures the cutting tool cleans up the raw stock surface entirely.
You must manage ratios and geometry constraints carefully. The Length-to-Diameter (L/D) ratio dictates machining stability. Keep the L/D ratio below 5:1 whenever possible. Exceeding this limit causes workpiece deflection and harmful chatter. If you must design longer precision turned components, specify tailstock support requirements explicitly on your drawings.
Consider internal versus external features critically. Internal undercuts and grooves present specific tooling challenges. They are harder to cut and inspect than external features. Boring bars lack the rigidity of external turning tools. Minimize internal complex profiles to keep production costs down.
Tool clearance dictates feature specifications. Avoid sharp internal corners at all costs. They trap stress and wear cutting tools rapidly.
Radii and Chamfers: We recommend standard economic corner radii. Keep them at or above 0.032 inches. Specify commercial chamfers, such as 0.4mm x 45°, for simple edge breaks.
Draft Angles: Apply minimal draft angles on groove sidewalls. A draft of ≥ 0.5° prevents tool drag marks during rapid retraction.
Advanced programming realities shape modern manufacturing outcomes. Engineers use G41 and G42 tool nose radius compensation routinely. This mathematical adjustment prevents over-cutting or under-cutting on complex profiles. It ensures the physical part matches your CAD model flawlessly.
Prototyping and production share common cost drivers. Setup time and run time dictate unit economics heavily. You will face an inverse relationship between batch size and unit setup cost. Small prototype batches absorb the entire setup cost. Large production volumes distribute this cost across thousands of units.
Multi-axis turn-mill centers change this math fundamentally. They reduce overall setup times drastically. By incorporating live tooling, they eliminate secondary milling operations entirely. We call this highly efficient method "done-in-one" processing.
Tool wear and material science introduce hidden costs into your supply chain. Machining abrasive materials increases tool wear exponentially. Frequent tool changes halt production and inflate labor budgets. Advanced tungsten carbide inserts fight this issue. Inserts featuring unidirectional crystal orientation improve thermal management. They provide superior crater wear resistance. Ultimately, this lowers the cost-per-part on high volumes.
Surface finish economics also play a major role in pricing. Consider your finish requirements carefully before requesting quotes. The "as-machined" finish costs the least. It leaves visible tool marks but meets most functional needs. Secondary finishes add distinct aesthetic and functional benefits, but they require extra handling.
Finish Type | Relative Cost | Visual Aesthetic | Primary Functional Benefit |
|---|---|---|---|
As-Machined | Lowest | Visible tool paths/marks | Tightest dimensional accuracy maintained |
Vibratory Tumbling | Low | Uniform, matte, slightly dulled | Efficient mass deburring of sharp edges |
Media Blasting | Medium | Non-directional satin finish | Prepares surface for coatings or paints |
Anodizing (Type II/III) | High | Colored or dark hardcoat | Exceptional corrosion and wear resistance |
Finding a capable custom CNC turning parts manufacturer requires diligence. You cannot rely on pricing alone. A systematic audit ensures long-term manufacturing success.
Technical and equipment auditing forms your first step. Evaluate the machine park thoroughly.
Assess the age of the equipment. Older machines often lose spindle rigidity and precision over time.
Check for the availability of specialized machinery. You will need Swiss-type machines for micro-components.
Look at their automation levels. Bar feeders and robotic part catchers ensure batch consistency. They also enable cost-effective lights-out manufacturing.
Quality control and traceability separate the best suppliers from the rest. Look for mandatory in-process monitoring systems. Statistical Process Control (SPC) catches dimension trends before parts fail. Relying solely on post-machining inspection guarantees wasted material.
Verify their final metrology equipment firsthand. Coordinate Measuring Machines (CMM) and optical comparators provide objective dimensional data. Request to see their documentation systems. First Article Inspection (FAI) reports and verified material certs prove compliance with your specifications.
Operational reliability guarantees an uninterrupted supply chain. Assess their ISO management certifications closely. ISO 9001 demonstrates baseline quality management capabilities. ISO 13485 is strictly mandatory for medical device components. These certifications ensure repeatable business processes. They also foster dependable communication cadences between your engineering team and the factory floor.
Design for Manufacturability guidelines dictate your project's success. Proper supplier alignment secures your production timeline. Together, these elements lower your overall production expenses significantly. Sourcing complex components requires a partner who understands advanced tooling, material behaviors, and strict metrology standards.
Move from evaluation to action today. Prepare a native 3D CAD model first. Create accompanying 2D technical drawings carefully. Detail all critical tolerances and specific threads clearly on the 2D file. Submit this complete package to a shortlisted manufacturing partner. Request a comprehensive DFM and cost analysis to launch your next production run confidently.
A: The primary difference lies in part motion. In CNC turning, the workpiece rotates at high speeds while a stationary cutting tool removes material. It perfectly suits cylindrical profiles. In CNC milling, the workpiece remains stationary while a multi-point cutting tool rotates. Milling handles flat surfaces and asymmetric geometries best.
A: Lead times vary based on project scope. Rapid prototyping usually takes 3 to 10 days. Full production runs average 3 to 6 weeks. Material availability, batch size, and secondary surface finishes (like anodizing or heat treating) heavily influence the final delivery schedule.
A: Yes. Modern multi-axis CNC turning centers feature live tooling. These motorized tool stations perform concurrent milling, drilling, and tapping on the rotating part. This capability allows operators to create flat faces, off-center holes, and milled slots without moving the component to another machine.
A: Wall thickness limits depend on material stiffness and cutting tool pressure. Typically, walls should not fall below 0.5mm. Machining thinner walls causes the material to flex away from the tool. This deflection destroys surface finish and ruins geometric tolerances. Shorter Length-to-Diameter ratios allow for slightly thinner walls.
