Sourcing manufactured parts constantly challenges procurement teams and design engineers. You must balance strict dimensional tolerances against tight lead times and rising unit costs. We understand the daily pressure of finding reliable manufacturing methods. CNC milling serves as the foundational subtractive manufacturing process for producing complex geometries today. It efficiently transforms solid blocks of raw material into highly accurate, functional components.
This article provides procurement teams and engineers with an evidence-based framework for sourcing. You will learn how to evaluate specific machine capabilities and analyze hidden cost drivers effectively. We will also show you how to confidently choose a reliable partner for your next project. By understanding these technical nuances, you can avoid costly production delays. Ultimately, this guide bridges the gap between engineering design and practical factory-floor execution.
Setup and fixturing are the highest-risk phases in CNC milling; a microscopic offset can result in a scrapped part.
Machine configuration (3-axis vs. 5-axis) and guideway rigidity directly dictate achievable tolerances and project costs.
Pure CNC milling from solid billets can yield up to 60% material waste; hybrid approaches (like near-net-shape casting) offer high-volume cost reduction.
Evaluating a machining partner requires looking beyond hourly rates to their Design for Manufacturability (DFM) interventions and rigorous CMM (Coordinate Measuring Machine) inspection protocols.
Understanding the actual mechanics of machining helps you make better purchasing decisions. Many buyers misunderstand how material leaves the block. We must define the core mechanism first.
CNC milling is a highly precise subtractive process. It uses computer-controlled, rotating cutting tools. They systematically remove material from a rigidly secured workpiece. The workpiece remains completely stationary during the primary cutting action. You can contrast this directly with CNC turning. In a turning process, the part rotates at high speeds while the cutting tool remains stationary. Milling excels at creating flat surfaces, deep pockets, and complex asymmetrical 3D shapes.
Producing a perfect part requires a flawless execution pipeline. Manufacturers follow three strict phases. Any error in these steps compounds quickly.
CAD to CAM: The CAD (Computer-Aided Design) model acts as the part's distinct "DNA." It defines the exact geometry. Meanwhile, CAM (Computer-Aided Manufacturing) programming brings that DNA to life. The CAM software dictates tool paths, spindle speeds, and feed rates. Operators optimize these parameters to maximize material removal without causing machine strain.
The Setup Risk: The entire process depends critically on proper fixturing. Jobs are routinely won or lost right here. You must hold the raw material firmly. Poor workholding inevitably leads to tool chatter and heavy vibration. This instability causes immediate dimensional failure. A microscopic offset during setup easily results in a scrapped part.
Verification: Precision means nothing without documented proof. Thermal expansion occurs naturally during heavy cutting. Tool wear also shifts dimensions over long production runs. Acknowledging these physical realities is essential. They necessitate rigorous post-machining CMM (Coordinate Measuring Machine) inspection. Probing parts confirms they match the original CAD DNA exactly.
Not all milling machines operate the same way. Matching your specific part geometry to the correct hardware prevents wasted time. It also keeps your budget under control.
The spindle orientation heavily influences production speed and cost. Machine shops generally divide their equipment into two primary categories.
Vertical Machining Centers (VMCs): The spindle faces downward. VMCs are highly cost-effective for flat parts. They handle basic pockets and rapid prototyping exceptionally well. Operators can see the cutting action clearly.
Horizontal Machining Centers (HMCs): The spindle runs parallel to the work table. Gravity assists in pulling metal chips away from the cutting zone. This provides superior chip evacuation and overall system rigidity. They are ideal for heavy cutting and multi-face machining. HMCs dominate in higher production volumes.
The number of axes determines how freely the machine moves. More axes mean fewer manual setups. However, complex machines charge higher hourly rates.
3-Axis: The machine moves in X, Y, and Z directions. It works best for basic planar geometries. If you need to cut another side, the operator must manually re-fixture the part.
4-Axis: This configuration adds rotational positioning (usually the A-axis). It rotates the workpiece along a single plane. It is ideal for cylindrical features or drilling angled holes efficiently.
5-Axis: This machine adds dual-directional rotation. It rotates the cutting tool and the workpiece simultaneously. This is essential for complex aerospace curves. It resolves undercut geometries easily. Most importantly, it reduces multi-setup alignment errors drastically.
Machine rigidity dictates surface finish quality. You should understand two main guideway systems. Box-way guideways feature high friction and massive damping capabilities. They absorb vibrations during heavy cuts on tough superalloys. Linear guideways offer low friction. They allow rapid tool movements. They are ideal for high-speed contouring in medical or mold applications.
Guideway Systems Comparison | |||
Guideway Type | Friction Level | Primary Benefit | Best Applications |
|---|---|---|---|
Box-Way | High | Maximum damping and rigidity | Heavy cuts, titanium, superalloys |
Linear Guideway | Low | Rapid acceleration and high speed | Aluminum, medical parts, mold contouring |
Many procurement teams focus solely on hourly machine rates. However, true costs hide within part design and material choice. You can control these factors through smart engineering.
Different metals react differently to cutting tools. Cutting speeds and tool degradation directly impact your final pricing.

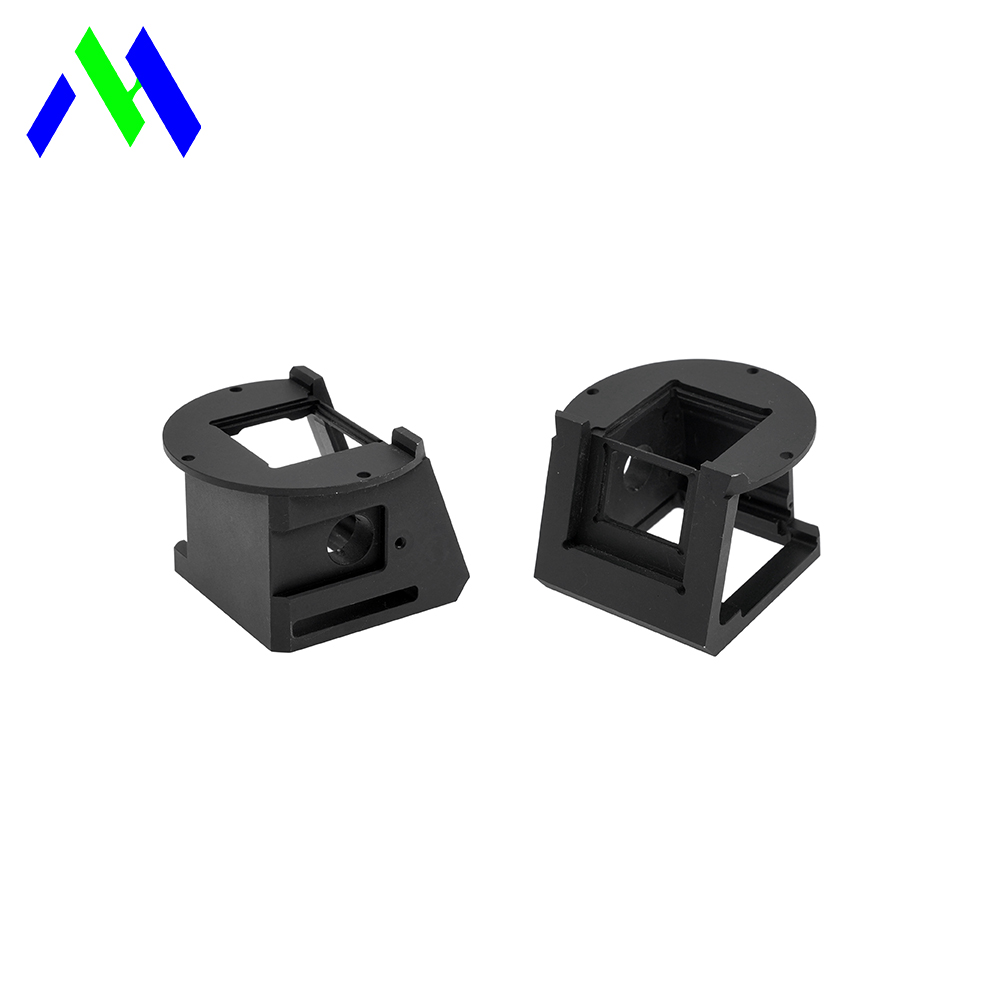

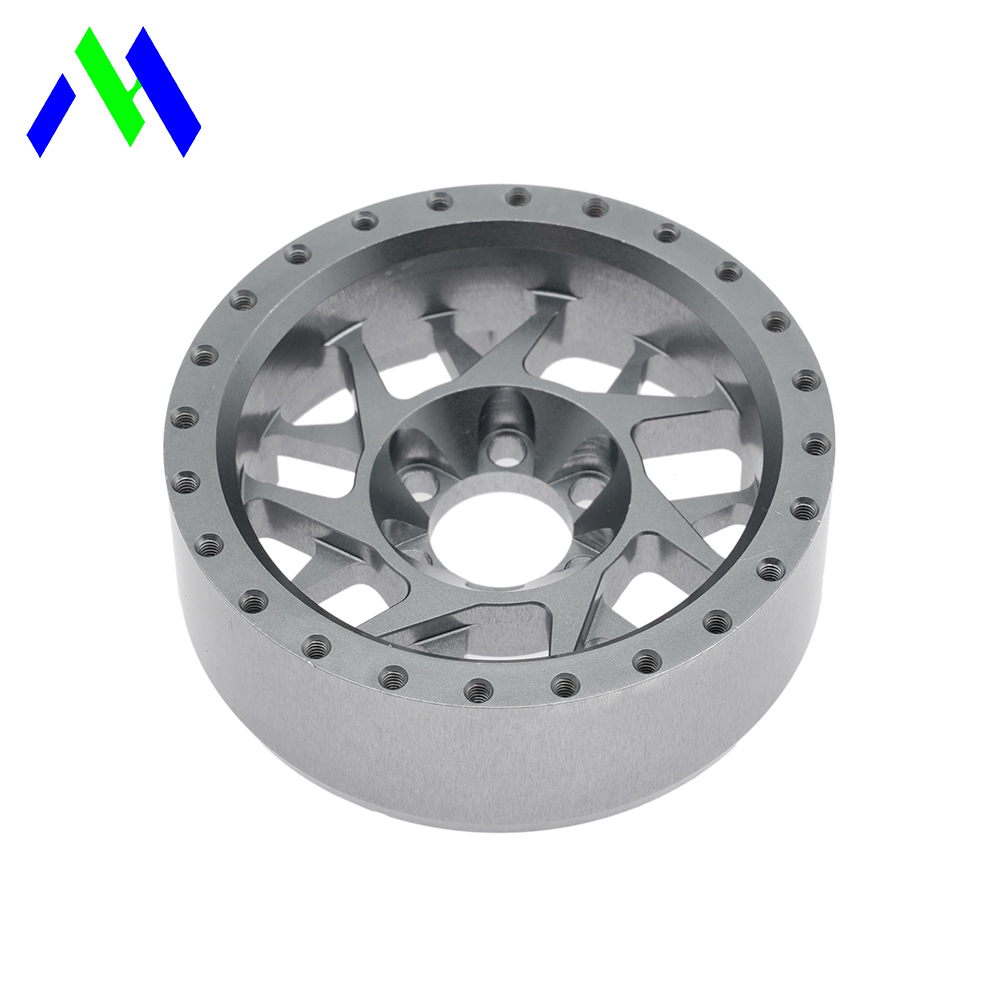

When engineering aluminum CNC machined components, you benefit from fast material removal rates. Aluminum causes very low tool wear. It also features excellent thermal conductivity. This prevents the workpiece from warping under heat. As a result, machining aluminum remains highly cost-effective.
Conversely, machining stainless steel and superalloys is difficult. They require extremely rigid setups. Operators must use high-pressure coolant, like Through-Spindle Coolant (TSC). They must also apply slow feed rates. These factors drive up cycle times significantly. Tooling replacements also add to the unit cost.
Complex shapes challenge standard cutting tools. Deep, narrow cavities restrict tool access. They often cause chatter as the extended tool vibrates. Sharp internal corners present a classic DFM problem. Round cutting tools cannot create perfect 90-degree internal angles. Sharp internal corners require expensive EDM (Electrical Discharge Machining) operations. Alternatively, they require extremely fragile miniature tooling. Both options increase production time.
Minor design interventions yield major cost reductions. For example, slightly increasing internal corner radii makes a huge difference. It accommodates larger, more robust endmills. Larger tools remove material faster. This simple adjustment can reduce overall machining time by 15-20%. We always recommend consulting your manufacturer before finalizing designs. They can spot these hidden cost drivers immediately.
Finding a vendor is easy. Finding a reliable partner requires deep vetting. You must evaluate their internal standards and production capabilities carefully.
Tolerance dictates how much a part's dimensions can deviate from the CAD model. You must differentiate standard commercial tolerances (±0.1mm) from tight precision (±0.01mm). Highlight why this matters before you order. Tight tolerances guarantee perfect assembly fit. They ensure proper fluid sealing in critical valves. Furthermore, they guarantee part interchangeability across a 1,000-unit run. Without repeatability, your assembly line will eventually stall.
Different manufacturing processes excel at different volumes. Understanding this sweet spot saves capital. A typical CNC milling service is most price-competitive for specific ranges. They excel at producing one-off custom CNC milling parts. They are perfect for testing functional prototypes quickly. They also handle medium-volume production runs efficiently. For massive volumes, other processes might be necessary.
When you evaluate a precision CNC milling service, ask tough questions. Use these specific criteria to benchmark them.
Equipment Lifecycle: Do they utilize modern, thermally compensated machines? Look for industry-leading brands like Haas, DMG Mori, or Mazak. Old equipment struggles to hold tight tolerances.
Quality Control: Do they offer 100% full-inspection capabilities using CMM? Beware of shops that just perform random spot-checking with hand calipers.
Engineering Support: Do they proactively conduct DFM reviews? A great partner will flag non-manufacturable features before cutting any chips. They protect your budget proactively.
Every technology has boundaries. Recognizing the limitations of milling allows you to explore smarter alternatives. Sometimes, combining processes yields the best results.
Many engineers assume machining from a solid block is always superior. We call this the "billet myth." You must acknowledge the primary subtractive disadvantage. Machining complex parts from a solid block can result in 60%+ material waste in chips. You pay for the raw material, and you pay the machine to turn it into scrap. This is financially inefficient for certain high-volume geometries.
For high volumes, advocate for hybrid approaches. Consider near-net-shape manufacturing. You can combine investment casting with precision milling. First, you cast the metal to achieve 95% of the final geometry. Then, you use a precision milling service to machine the final 5%. They cut only the critical threads, bores, and mating surfaces. This slashes material waste and cycle times simultaneously.
Milling is not a universal solution. You should select alternative processes when part requirements dictate it.
Process Alternatives Chart | ||
Competing Process | When to Choose the Alternative | When to Stick with CNC Milling |
|---|---|---|
Laser Cutting | Use laser for high-speed 2D thin sheet profiles. | Use milling for complex 3D geometries and thick solid blocks. |
Surface Grinding | Use grinding when sub-micron flatness or superior micro-surface finishes are strictly required. | Use milling for rapid bulk material removal and general dimensioning. |
EDM (Wire/Sinker) | Use EDM for hardened tool steels or extremely sharp internal geometries. | Use milling for softer metals and when rapid turnaround is critical. |
Successful CNC milling procurement requires aligning your part geometry and material with the correct machine axis setup.
Select rigid tooling and prioritize partners who utilize stringent CMM inspection protocols to guarantee repeatability.
Implement DFM strategies early; simple design changes like increasing corner radii can reduce cycle times by up to 20%.
Acknowledge material waste realities and consider near-net-shape casting for high-volume production efficiency.
Next Step: Securely upload your CAD files to a qualified manufacturing partner today. Request a comprehensive DFM analysis and pricing review to optimize your next production run.
A: Milling uses a rotating cutting tool against a stationary part. This setup works best for creating flat surfaces, asymmetrical features, and complex 3D shapes. Turning rotates the part itself against a stationary cutting tool. Turning is best suited for producing cylindrical or round shapes efficiently.
A: Equipment costs range from $10,000 for simple entry-level machines to well over $100,000 for high-end, 5-axis industrial machining centers. These massive capital requirements are exactly why utilizing a contract manufacturing service makes sense. Outsourcing mitigates your capital expenditure risks entirely.
A: Common issues include sharp burrs, chatter marks (visible vibration lines), dimensional drift due to thermal expansion, and excessive tool marks. Operators prevent these defects by utilizing optimal CAM programming, securing rigid workholding setups, and actively monitoring tool wear.
