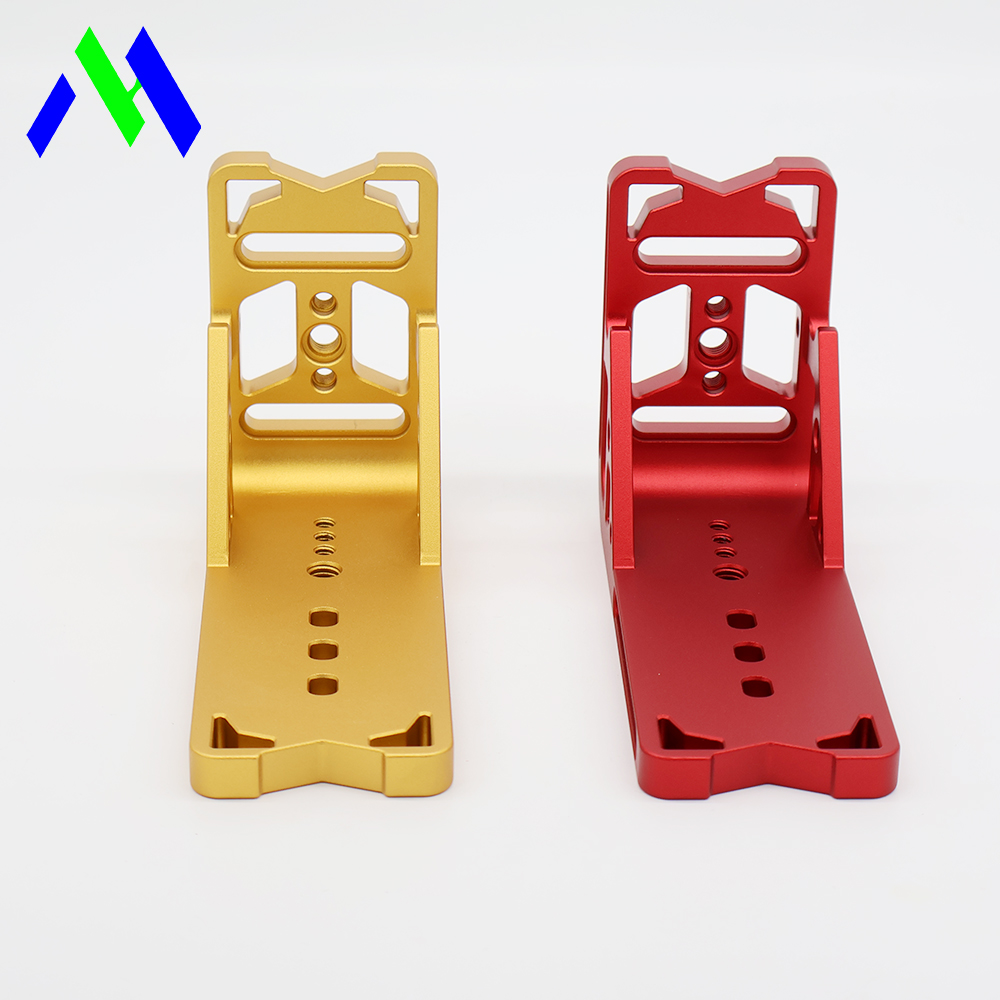

Complex parts often demand multiple setups. This adds massive risk to your production line. You face severe tolerance stacking. Lead times inevitably stretch out. These compounding errors ruin profit margins and delay critical product launches. Fortunately, modern manufacturing offers a robust solution. We see a massive shift away from standard 3-axis limitations. Today, the "done-in-one" capability of 5-axis systems dominates high-precision industries. It allows you to machine five distinct sides of a part simultaneously.
This article serves as your technical and commercial evaluation guide. It helps engineering and procurement teams make smart sourcing decisions. You will discover if partnering with a 5-axis CNC machining service offers the most cost-effective route for your specific project. You will learn about machine types, cost trade-offs, hardware configurations, and vital vendor evaluation metrics. Let us dive into the mechanics.
Setup Consolidation is the True ROI: 5-axis machining justifies its higher hourly rate by eliminating manual re-fixturing, drastically reducing human error and lead times.
Not All 5-Axis is Equal: Projects must be evaluated to determine if they require cost-effective Indexed (3+2) machining or fully continuous simultaneous 5-axis movement.
Shorter Tooling Equals Better Quality: The ability to orient the cutting head allows for shorter cutting tools, reducing vibration and achieving superior surface finishes without secondary polishing.
Vendor Evaluation Requires Technical Scrutiny: Partnering for custom 5-axis parts requires auditing the vendor's CAM software capabilities, machine configurations (trunnion vs. swivel), and collision-prevention protocols.
You must understand the hardware basics before evaluating vendor capabilities. Traditional milling operates on a standard Cartesian coordinate system. We define the baseline linear axes as X, Y, and Z. They represent left-to-right, front-to-back, and up-and-down movements. A 5-axis system introduces two additional rotational axes. We call these the A and B (or C) axes. They manipulate the cutting tool or the workpiece itself. They tilt and rotate it into perfect alignment.
This added rotation enables the famous "done-in-one" principle. You can access five sides of a part in a single setup. Moving parts between different fixtures introduces massive risk. You lose alignment accuracy every time you unclamp a part. Single-setup machining eliminates this tolerance loss entirely. You lock the raw material in once. The machine handles the rest seamlessly.
The physical benefits of rotational axes extend far beyond simple convenience. They transform how we approach complex manufacturing.
Undercutting Capabilities: Traditional milling struggles with deep cavities. It fails at inverted features. 5-axis equipment reaches deep pockets easily. It cuts complex angles without requiring expensive custom fixturing.
Tool Rigidity: Tilting the head or table lets you use much shorter cutting tools. Shorter tools minimize deflection under heavy loads. They increase material removal rates (MRR) safely. Less vibration yields a near-polished surface finish directly off the machine.
Best Practice: Always ask your engineering team to design parts favoring single-setup orientations. Reducing the need to machine the "sixth side" (the clamped base) saves considerable time.
The term "5-axis" acts as a broad umbrella. Choosing the wrong machine type hurts your budget. It directly impacts part cost and production speed. We must separate indexed machining from continuous simultaneous movement.
Indexed machining offers an incredibly cost-effective entry point into multi-sided work. It provides excellent precision without astronomical programming costs.
How it works: The machine uses its rotational axes to position the part. It then locks the axes securely into place. Finally, a standard 3-axis milling program executes the cut. The cutting tool only moves along three linear axes during actual material removal. It pauses, rotates to a new face, locks, and cuts again.

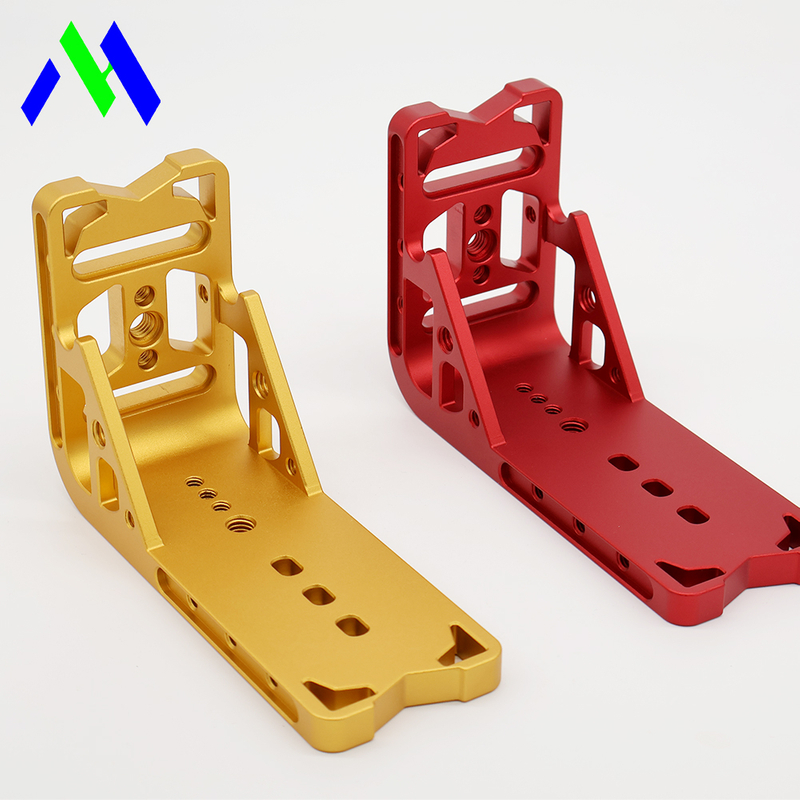

Best for: You should use this for multi-sided prismatic parts. It drastically reduces fixture costs. It works beautifully for projects lacking continuous surface blending requirements. It represents the ultimate efficiency for complex brackets and housings.
Continuous movement represents the pinnacle of modern milling technology. It solves the most difficult geometric challenges in manufacturing.
How it works: All five axes move concurrently during the cutting process. The tool continuously adjusts its angle and position. It glides over the material seamlessly.
Best for: This method handles organic geometries perfectly. You need it for turbine blades and aerospace impellers. It is the absolute gold standard for complex 5-axis CNC machining. The tool must maintain constant, fluid contact with highly contoured surfaces.
Trade-offs: Continuous motion carries a higher premium. It requires highly advanced CAM programming. The machine consumes more computational power to process complex tool paths.
Comparison Chart: Indexed vs. Simultaneous Machining | ||
Feature | Indexed 5-Axis (3+2) | Simultaneous 5-Axis |
|---|---|---|
Axis Movement During Cut | 3 Linear Axes (X, Y, Z) | All 5 Axes (X, Y, Z, A, B/C) |
Ideal Part Geometry | Prismatic, multi-sided blocks | Organic, contoured, fluid shapes |
Programming Complexity | Moderate (Standard CAM) | High (Advanced CAM & Simulation) |
Cost Premium | Lower | Higher |
Common Mistake: Do not request continuous 5-axis milling for basic multi-sided boxes. You will pay a hefty premium for capability you simply do not need.
You must evaluate the true business case for escalation carefully. Compare a single-setup 5-axis job against a multi-setup 3-axis operation. Base your decision on overall cost-effectiveness and risk mitigation. Factor in your scrap rates. Every time an operator intervenes to flip a part, the risk of human error skyrockets. Advanced routing slashes secondary finishing costs. It minimizes manual handling. This makes the final part much cheaper for intricate designs.
You should actively seek multi-axis solutions under specific production conditions. The following scenarios justify the higher hourly machine rate instantly.
Low-volume, high-complexity production runs: You avoid building expensive jigs for tiny batch sizes. The machine's flexibility handles the complexity.
Aerospace, medical, and automotive prototyping: Structural integrity remains non-negotiable here. You cannot rely on welding or joining multiple simple parts. You must machine from a single solid billet.
Strict GD&T requirements: Parts requiring tight geometric dimensioning and tolerancing across opposing faces thrive here. Single setups guarantee perfect alignment.
You must recognize when advanced technology becomes a financial burden. Avoid it for flat plates. Skip it for simple brackets. High-volume runs of basic geometries do not need continuous rotational motion. A standard 3-axis mill or mill-turn center works much faster. It remains significantly cheaper for simple, repetitive shapes.
Hardware dictates manufacturing reality. You should care deeply about a vendor's specific equipment. Their hardware limits the size, weight, and complexity of your parts. You cannot run a heavy aerospace bulkhead on a light-duty table. Understanding these configurations helps you audit potential partners effectively.
Trunnion tables feature a cradle that holds the workpiece. The entire table tilts and rotates beneath the spindle.
Strengths: These machines offer excellent undercut limits. They often rotate up to +/-110 degrees. They work best for smaller to medium parts. The integrated table provides highly rigid support during heavy material removal.
Limitations: You face a restricted working volume. The physical table frame limits part size. Heavier parts can stress the rotation motors. Large billets often exceed the trunnion's weight capacity.
In this configuration, the workpiece remains relatively stationary. The spindle head performs the heavy dynamic movement.
Strengths: The heavy workpiece sits safely on a fixed bed. This configuration proves ideal for large, heavy blocks of material. It easily handles massive automotive molds. You also gain superior chip evacuation. Gravity naturally pulls debris away from the cutting zone.
Limitations: The swivel head faces slightly restricted rotational travel. It rarely matches the extreme undercut angles of a trunnion setup. The moving spindle also carries intricate internal cabling, requiring strict maintenance.
Summary: Hardware Configuration Capabilities | |||
Configuration Type | Best For | Key Advantage | Primary Limitation |
|---|---|---|---|
Trunnion Table | Small to medium parts | Extreme undercuts (+/- 110 deg) | Weight and volume restrictions |
Swivel Head | Large, heavy parts | Handles massive billets easily | Limited rotational angle reach |
You must audit a vendor far beyond their basic equipment list. True technical competence lives in their software, workflows, and quality systems. Ensure you partner with a top-tier multi-axis machining service by checking key technical indicators.
Software drives modern precision. A vendor's programming team matters just as much as their iron. You should investigate two specific technical capabilities.
CAM & Simulation: Ask about their tool path simulation software. Do they use advanced digital twin environments? This prevents costly machine collisions. They must simulate the exact machine kinematics before cutting any metal. Skipping this step leads to disastrous machine crashes and ruined parts.
Tool Center Point Management (TCPM): Audit their machine controllers. Do they support dynamic tool vector inputs? TCPM ensures high-fidelity translation from your CAD file to the final part. It allows the machine to calculate tool tips in real time. This keeps the tool perfectly normal to the surface, guaranteeing flawless finishes.
Advanced machining requires advanced verification. Look for integrated probing systems. On-machine inspection allows for immediate adjustments before removing the part from the fixture. It catches micro-deviations instantly.
Ensure they hold appropriate certifications. ISO 9001 serves as a baseline. Look for AS9100 certifications if you operate in regulated aerospace industries. ISO 13485 remains mandatory for medical devices. These frameworks guarantee rigorous process control.
Examine their long-term production strategy. Can they scale up your custom 5-axis parts? A great vendor thinks ahead. They transition a prototype made on a high-end 5-axis machine to a more cost-effective production method as volume scales aggressively. They might shift bulk roughing to a 3-axis mill. They then use the 5-axis solely for final critical finishing. This hybrid approach saves you enormous amounts of money over the product lifecycle.
We must reframe how we view advanced milling. 5-axis machining is less about "creating impossible shapes." It focuses heavily on optimizing the entire manufacturing supply chain. You win through drastic setup reduction and complete error elimination. The upfront hourly rate pays for itself through unparalleled reliability.
Engineering teams should act proactively. Seek vendors willing to perform Design for Manufacturability (DFM) reviews early in your product cycle. A strong DFM review catches geometry flaws long before programming begins. It simplifies tool paths and reduces cycle times dramatically.
Do not let complex geometries delay your next product launch. Encourage your engineering department to submit their complex CAD files today. Request an objective cost-benefit analysis. Compare the financial impact of standard 3-axis methods against single-setup 5-axis methodologies. The data will clearly guide your procurement strategy.
A: The hourly machine rate runs higher. This covers expensive equipment and complex programming. However, the total part cost often drops for complex geometries. Eliminating manual setups saves immense labor time. It dramatically lowers scrap rates and reduces human error. For intricate designs, 5-axis processing ultimately saves you money.
A: High-precision metal cutting standardizes at five axes. True "6-axis" milling machines barely exist in standard metalwork. The term usually refers to robotic arms used for automated loading. It can also describe hybrid setups mixing additive and subtractive tools. You do not need six axes for superior traditional milling accuracy.
A: Generally, no. These advanced machines optimize flexibility and handle extreme complexity. They excel in low-mix, high-value runs or rapid prototyping. True mass production demands different tools. High-volume runs typically shift to multi-spindle Swiss lathes, casting, or forging, depending entirely on the part's design and material.
