Walk through a modern elevator lobby, a hospital corridor, or a server room, and you will see the same quiet fact: nearly every visible metal panel was produced by sheet metal bending. Sheet metal bending is everywhere, and most of the time nobody thinks about it. That changes the moment a part arrives with a scratch on it, a die mark along the bend, or a dull line that should not be there.
For years, small surface marks were not a real problem. The part got painted, plated, or hidden behind a cover, and nobody looked twice. That is no longer true. More and more sheet metal parts are built from pre-finished materials such as brushed stainless steel, anodized aluminum, and coated steel, then shipped without any additional painting. In that situation, the surface is the product. This is why mark-free bending has moved from a nice-to-have to a basic requirement in industries such as elevators, home appliances, telecommunications, and medical equipment.
This article covers the basics of sheet metal bending and mark-free bending: the defects to watch for, the factors that actually matter, the materials and parameters you will meet, the process step by step, and the questions worth asking before you choose a sheet metal fabrication partner.

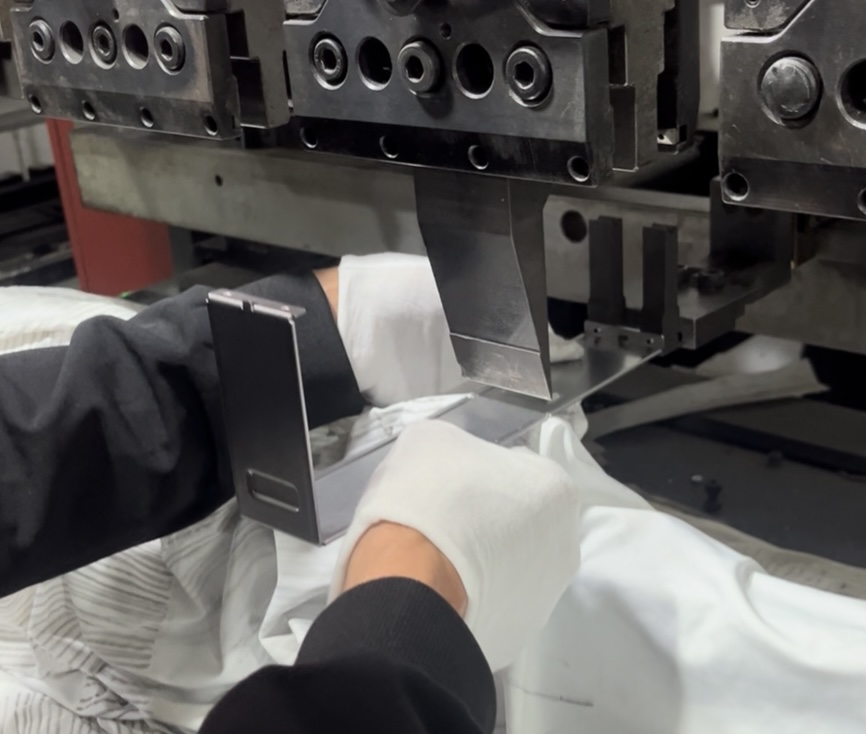

Put simply, sheet metal bending is the process of forming a flat metal sheet into an angle or shape with a bending machine. The sheet sits on the lower die of a press brake. The upper punch comes down, and a straight bend forms along the line where the two tools meet. The process is fast, repeatable, and much cheaper than other forming methods, which is why most sheet metal parts are made this way.
Here is what separates mark-free bending from ordinary sheet metal bending. It is not a different machine, and it is not a different material. Mark-free bending is a set of small disciplines: tooling chosen so that it does not press into the surface, protective film applied before the sheet touches anything hard, parameters set so the sheet does not slide, and handling rules that keep a finished face away from bare hands and sharp edges.
You notice the difference on the shop floor. A standard die leaves two faint lines on the inner face of a bend. On a painted part, those lines disappear. On a brushed stainless steel panel that goes straight into an elevator car, they are a reject. That single difference explains why mark-free bending has become a key requirement in so many sheet metal parts projects.
Before going further, it is worth naming the enemies in sheet metal bending. These are the defects that mark-free bending is designed to prevent:
Die marks: indentations pressed into the sheet by the lower die during forming. You can often feel them with a fingertip.
Scratches: lines caused by contact between the sheet and tooling edges or loose particles. Many scratches only show up under direct light.
Coating damage: peeling or cracking of painted, anodized, or plated surfaces.
Bending lines: a visible change in color or texture along the bend line.
Dents: small depressions from pressure concentration or trapped debris.
Any one of these can turn a part that looks fine on the drawing into a reject on the table, especially when the sheet metal parts are visible cosmetic components. The frustrating part is that in sheet metal bending, most of these defects are invisible at first glance. You have to hold the part at an angle, under a light, and look carefully.
Whether sheet metal parts come out with a clean surface in mark-free bending depends less on luck and more on five things:
Tooling: standard steel dies can leave marks. Polyurethane, nylon, or specially polished dies protect the surface.
Protective film: a removable plastic film applied before bending shields the sheet from scratches during handling and forming.

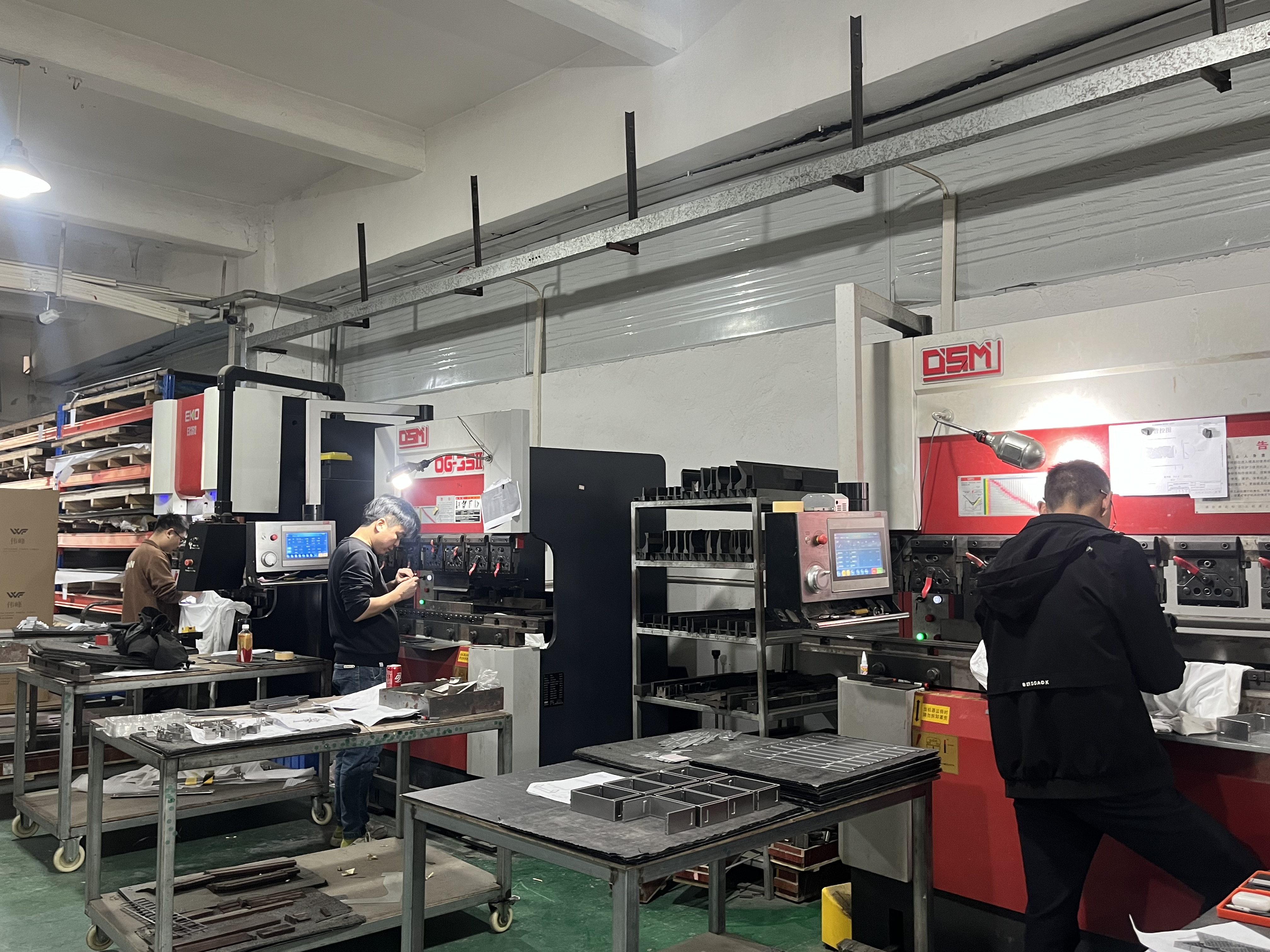

Machine control: a modern CNC bending machine delivers stable speed and pressure, which reduces tool slippage and surface damage.
Working environment: a clean machine bed and clean tooling prevent loose particles from scratching the sheet.
Process parameters: bending speed, pressure, and punch travel need to be tuned for each material and thickness.
In our experience, the most common mistake in sheet metal bending is spending on the wrong thing. A shop buys expensive soft tooling, then scratches the sheet while carrying it across a bench covered in metal chips, or stacks finished parts face to face with nothing between them. Mark-free bending is only as strong as the weakest step in the chain. A protective film that stays on until final assembly often does more than an expensive die.
Material behavior is different in sheet metal bending, so the numbers have to be adjusted for each material. The table below shows the common materials used in sheet metal bending:
Material | Key Characteristics | Typical Applications |
|---|---|---|
Stainless steel | Corrosion resistant, high strength | Elevator panels, kitchen equipment, medical shells |
Aluminum alloy | Lightweight, good corrosion resistance | Electronic housings, automotive trim |
Galvanized steel | Low cost, corrosion resistant | Enclosures, racks, structural brackets |
Pre-painted / coated steel | Decorative finish, ready to use | Appliances, building decoration |
Copper and brass | Conductive, decorative | Electrical parts, decorative trim |
For the sheet metal bending process itself, a few general rules apply. The V-opening width of the lower die is usually 6 to 8 times the sheet thickness. The inner bend radius should normally be at least 1 times the sheet thickness to avoid cracking. The minimum flange length depends on the die opening, and springback must be compensated, because metal tends to spring back slightly toward its original shape after bending.
Parameter | General Rule |
|---|---|
Lower die V-opening | 6–8 × sheet thickness |
Inner bend radius | ≥ 1 × sheet thickness |
Springback compensation | Adjusted per material and angle |
These rules exist for a reason. The V-opening decides how the material flows around the punch. Too narrow, and the sheet cracks or marks. Too wide, and the bend radius grows and the part loses accuracy. The 6-to-8 rule is a starting point, not a law, because springback, hardness, and surface coating all shift the numbers. A professional sheet metal fabrication team treats these rules as a baseline for every sheet metal bending project and fine-tunes them on real test bends.

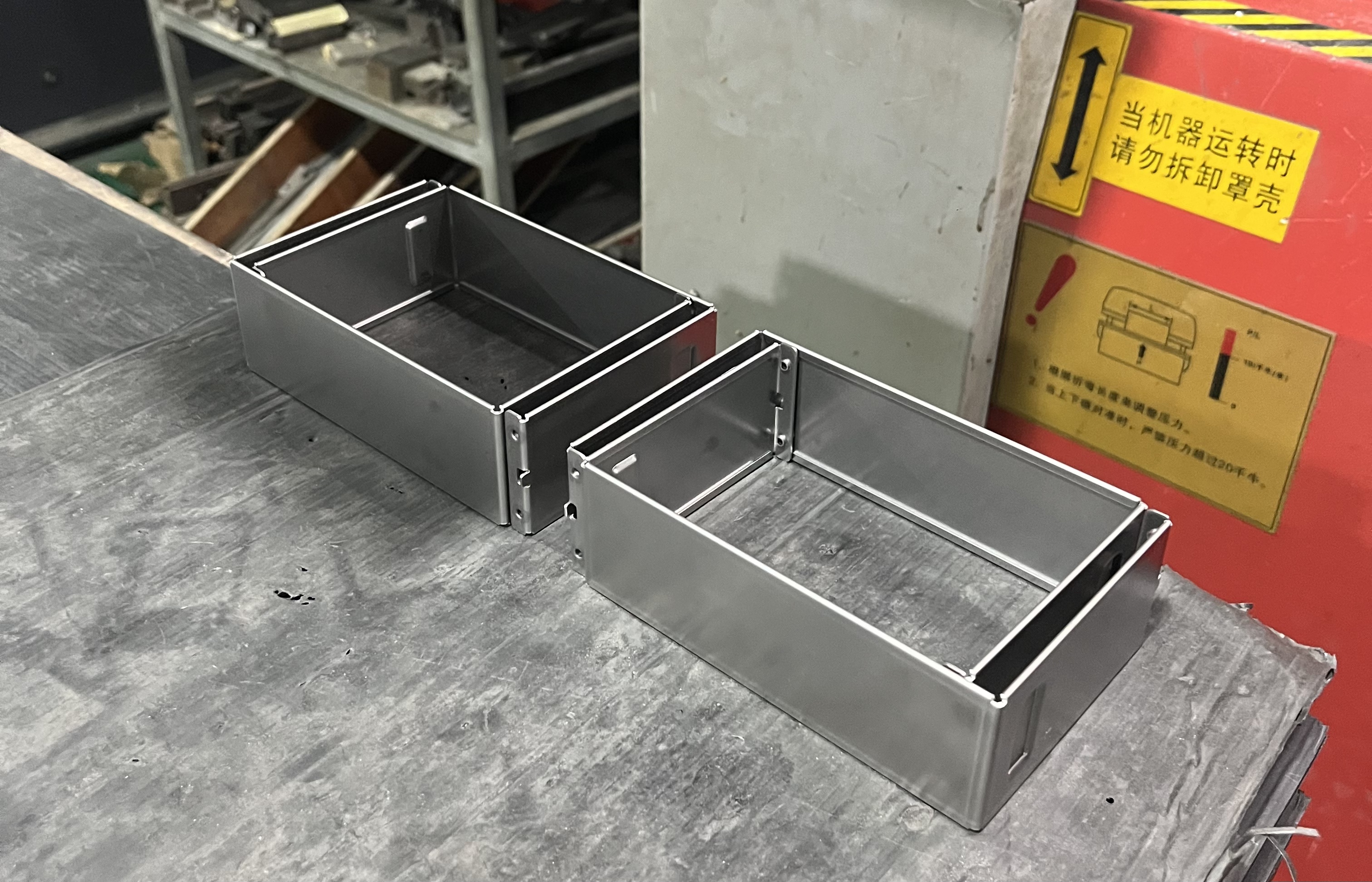

Producing clean, mark-free sheet metal parts follows a structured process:
Review the drawing and material: confirm the bend radius, angle, and surface requirements before any work starts.
Select the right tooling: choose polished or soft dies such as polyurethane lower dies for delicate surfaces.
Apply protective film if needed: cover the sheet surface before handling and forming.
Set up the CNC bending machine: input the correct parameters, including V-opening, pressure, and speed.
Perform test bends: bend a sample piece and check the angle, radius, and surface condition under light.
Adjust and repeat: fine-tune parameters until the sample passes inspection, then start series production.
Inspect and protect: check every batch and keep finished parts covered during packing.
Most of these steps sound simple. In practice, step 6 is where projects are won or lost. The first test bend almost never comes out exactly right. The angle is off by half a degree, or the surface shows a faint line that only appears under light. A good team treats that as normal, adjusts the program, and tries again. What you want to hear from a sheet metal parts supplier is not "we never have problems" but "here is how we find problems and fix them before the parts ship." Ask to see mark-free sheet metal parts from a recent job; any serious supplier keeps samples around.
Mark-free bending is most valuable where appearance matters. In practice, most mark-free bending jobs come from these industries:
Elevator car panels and door frames
Home appliance shells and control panels
Telecommunications and server cabinets
Medical device housings and instrument panels
Automotive interior trim and exterior accents
Architectural decoration and display systems
In these fields, the surface quality of sheet metal parts is part of the product specification, not a cosmetic afterthought. A brushed finish has to stay brushed. A mirror finish has to stay mirror-clean. Once you have seen a scratched elevator panel installed in a brand-new lobby, you understand why buyers specify mark-free bending in the first place.
Choosing a sheet metal fabrication partner is a decision worth taking time over. Here is what we would check, and what we would ask, on a mark-free bending job:
Confirm the equipment: CNC press brakes, laser cutting machines, and inspection tools indicate production capability.
Ask about surface protection: what tooling do they keep for stainless steel? What film options do they offer?
Review process control: certifications such as ISO 9001 show a systematic quality system, but ask how inspection actually works day to day.
Request samples: bending a sample before volume production lets you verify surface quality with your own eyes.
Evaluate communication: a responsive engineering team saves time during the entire project.
We do this work at Minghao, and we will not pretend every shop is the same. Ask our engineers how we protect surfaces during sheet metal bending, which tooling we use for pre-finished materials, and what happens when a batch does not pass inspection. Then ask to see a sample. That conversation will tell you more than any brochure.
