Modern manufacturing keeps exploring cost‑effective ways to convert raw polymer resources into functional finished components, and plastic fabrication stands out as one of the most flexible manufacturing solutions in this field. Many product designers, mechanical engineers and project managers rely on plastic fabrication to produce lightweight, complex‑shaped parts that are hard or expensive to make with metal processing techniques. Understanding the basic logic, mainstream workflows, material matching rules, strengths and weaknesses of plastic fabrication helps teams make smarter decisions during product development. Whether you work for automotive equipment development, medical device research or consumer‑oriented product design, grasping plastic‑related manufacturing knowledge will reduce trial‑and‑error costs in your whole project cycle.
Plastic fabrication covers a full set of manufacturing operations that transform raw plastic resin, plastic sheets, rods or pellets into semi‑finished or fully finished functional components. It includes subtractive cutting, thermal forming, moulding, welding and assembly procedures instead of only one single production method. Different from simple mould‑only production, plastic fabrication supports both mass‑volume standardized output and small‑batch custom‑made parts according to custom drawings. The core target of plastic fabrication is to turn polymer materials into parts that meet pre‑set mechanical performance, appearance and dimensional requirements, serving diverse industrial and civilian product chains.
Multiple mature workflows belong to plastic fabrication, and each process fits different production volumes, part geometries and material types. Before launching formal production, engineers need to compare process features to pick the most suitable technical route.
Injection Molding As a high‑volume core fabrication method, injection molding melts plastic pellets under high temperature, then injects molten polymer into precision‑processed metal mould cavities. After cooling and solidification, complete plastic parts can be taken out from moulds. This process suits mass‑produced items with stable sizes, including electronic housing parts and daily‑use plastic accessories.

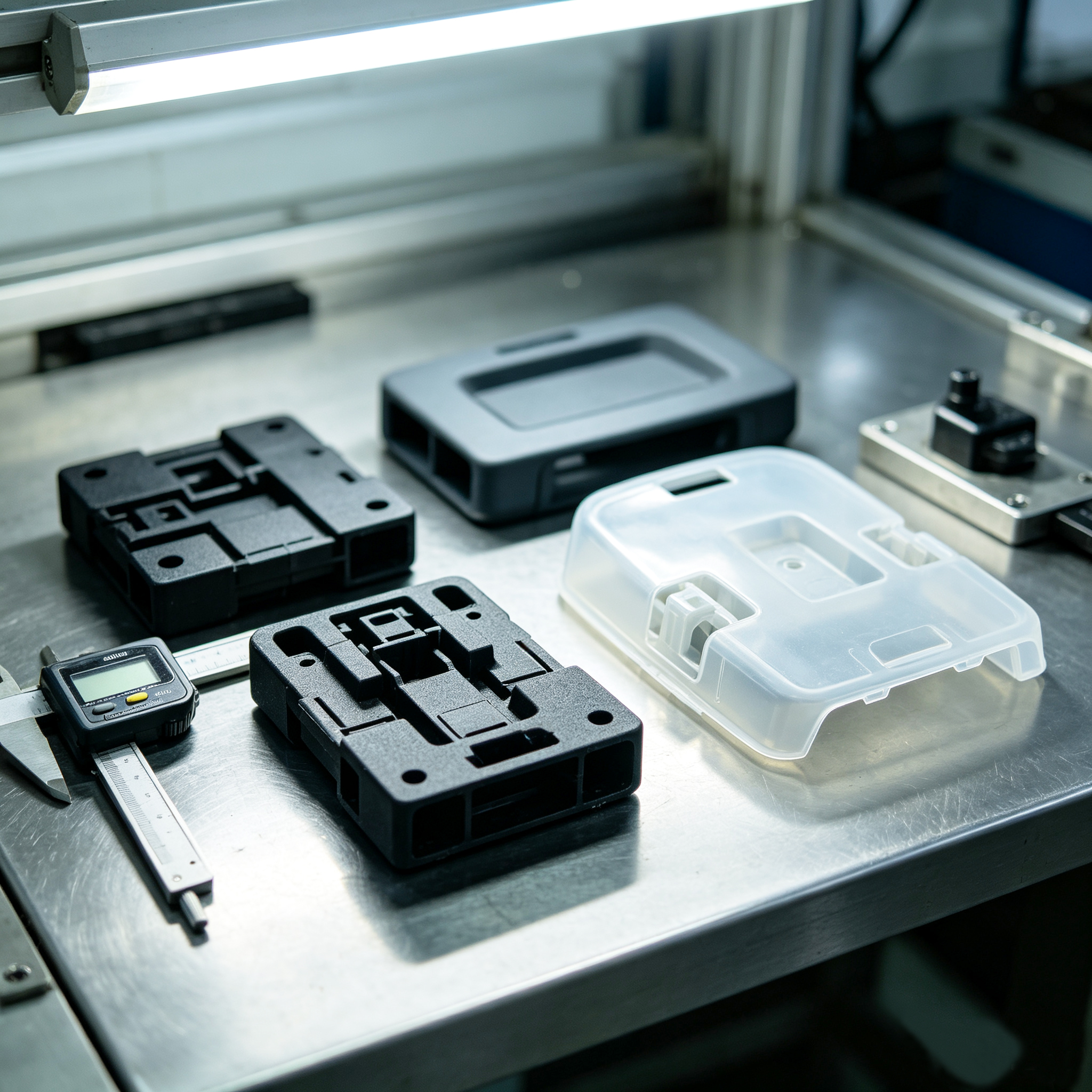

CNC Plastic Machining CNC plastic machining is a typical subtractive fabrication approach. Computer‑controlled milling or lathe devices cut excess material from solid plastic blocks or bars to get target shapes. It delivers outstanding dimensional accuracy, and works well for low‑batch custom components and prototype samples without expensive mould investment.
Plastic Extrusion Extrusion pushes softened plastic materials through custom‑shaped metal dies under continuous pressure, creating long‑profile products with consistent cross‑sections. Plastic pipes, sealing strips and plastic film are typical outputs made by extrusion technology.
Thermoforming Thermoforming heats flat plastic sheets until they become flexible. Operators apply vacuum or mechanical force to attach soft sheets onto mould surfaces. After cooling, sheets keep the mould‑defined shape. This solution is widely adopted for large‑size thin‑wall shell‑style components.
Blow Molding Blow molding mainly creates hollow plastic products. Heated plastic parison is placed inside closed moulds; compressed air inflates raw plastic to press tightly against inner mould walls, forming hollow containers after cooling down. Bottles, liquid storage tanks and hollow industrial ducts are commonly produced by blow molding.
Choosing proper plastic materials directly decides final part performance, service life and total manufacturing expense. Designers should evaluate working temperature, mechanical load, chemical exposure environment and production processes before confirming raw materials. Two major plastic categories are thermoplastics and thermosetting plastics.
Thermoplastic Materials Thermoplastics can melt repeatedly under heat without permanent chemical cross‑link reactions, so re‑processing and recycling are achievable. Common options include ABS, HDPE, PC, acrylic (PMMA) and PP.
ABS provides strong impact resistance and smooth surface finish, fit for equipment shells and consumer‑product housings.
Polycarbonate (PC) combines high transparency and anti‑impact performance, ideal for safety protective covers and transparent mechanical shields.
HDPE shows excellent chemical inertness, frequently used for chemical storage containers and industrial tubing.
Acrylic delivers premium optical transparency as a lightweight glass replacement, suitable for display panels and decorative components.
Thermosetting Plastics Thermosetting resins create stable cross‑linked structures after curing. Once finished, thermoset parts cannot be remelted even with extra heating. Phenolic resin and polyurethane are representative thermoset materials, applied in high‑insulation electrical accessories and heavy‑load wear‑resistant parts.
When picking materials, engineers also need to consider auxiliary factors: operating environment UV exposure, food‑contact safety standards, wear‑resistance demand and budget limits. A material with outstanding comprehensive performance may turn into a bad choice if it cannot match your selected fabrication process.
Plastic fabrication gains wide popularity across modern industries thanks to multiple obvious strengths compared with metal or ceramic component manufacturing.
Light‑Weight Component Output Fabricated plastic parts weigh far less than metal counterparts of equal volume. Light‑weight features reduce overall product weight, which brings value for mobile equipment, transportation‑related assemblies and portable devices.
Strong Chemical Resistance Most polymer materials resist corrosion from many acids, alkalis and solvent liquids. Plastic‑fabricated parts work reliably in chemical‑processing workshops where metal parts easily get rusted or corroded.
Rich Shape‑Making Potential Different fabrication workflows support simple flat structures as well as complex curved or hollow geometries. Designers can realize complicated structural details hard to achieve via traditional metal‑cutting operations.
Flexible Cost Performance For large‑scale production, plastic fabrication lowers per‑unit costs greatly. Even small‑batch custom orders can get acceptable expense via CNC machining or thermoforming without huge mould‑building investment.
Customizable Surface Property Manufacturers can adjust hardness, color, friction coefficient and anti‑UV ability by modifying resin formulas or adding functional additives, to satisfy diverse usage‑scene requirements.
Even with prominent strengths, plastic fabrication still has inherent limitations that product teams must evaluate during early‑stage design.
Limited High‑Temperature Tolerance Most common plastics deform or lose mechanical strength under sustained high‑temperature conditions. Few plastic grades can keep stable performance in long‑term over‑120℃ working environments, which restricts applications inside high‑heat equipment.
Risk of Aging and Performance Degradation Long‑time ultraviolet radiation, outdoor weathering or continuous heavy mechanical stress will trigger aging problems, including cracking, color fading and dimensional shifting for plastic components.
Relative Deficiency in High‑Strength Scenarios Though engineering‑grade plastics obtain improved mechanical indicators, most plastic materials cannot match metal in ultimate tensile strength and anti‑fatigue capacity for heavy‑load structural applications.
Environmental‑Related Concerns Many conventional plastic materials decompose extremely slowly in natural environments. Improper waste disposal of plastic‑fabricated products will produce long‑term environmental pressure, pushing manufacturers to adopt recyclable or bio‑based polymer solutions gradually.
Plastic fabrication solutions penetrate nearly all mainstream industrial sectors, delivering practical value for different product lines.
Automotive Industry Vehicle interior trim panels, instrument housing shells, light‑weight piping systems and protective bumper accessories are manufactured by plastic fabrication. Replacing partial metal components with qualified plastic parts helps reduce vehicle overall weight and cut energy consumption during operation.

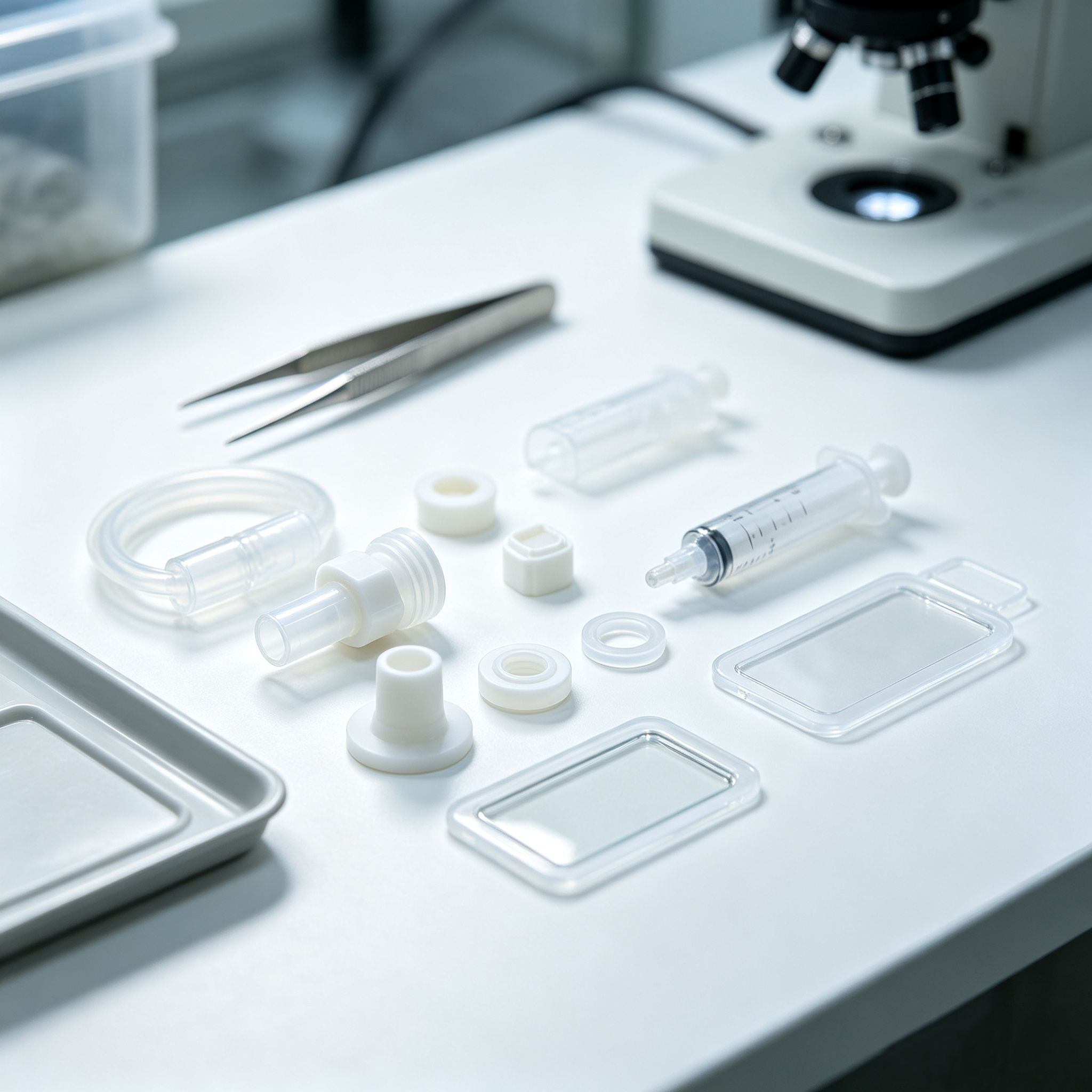

Medical Equipment Field Sterilization boxes, medical instrument shells, disposable fluid‑transfer containers and protective inspection accessories come from plastic fabrication. Selected medical‑grade plastics meet biocompatibility requirements to support safe clinical usage.

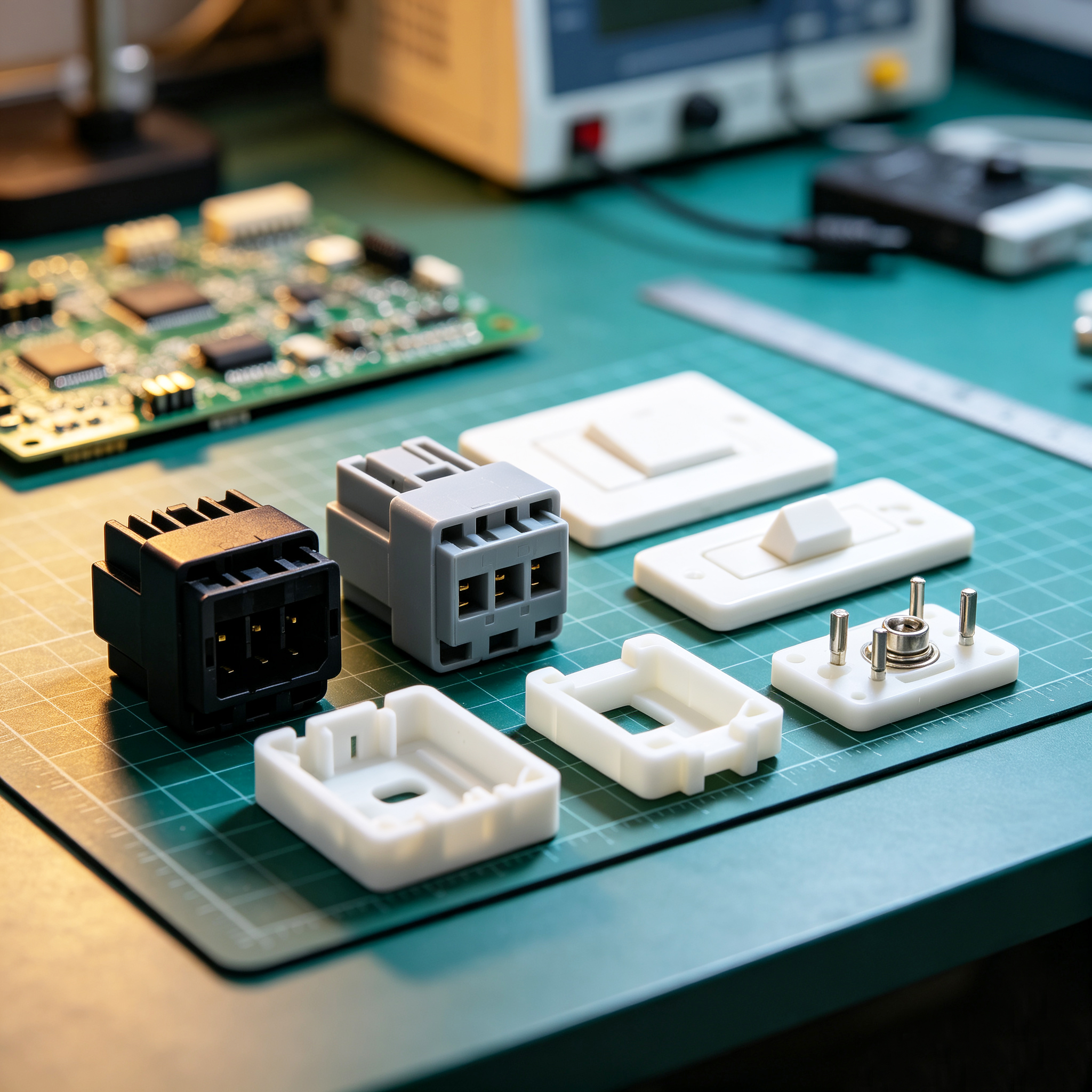

Electronics and Electrical Sector Insulating plastic housings, internal supporting brackets, wire‑protection sleeves and connector accessories rely on plastic fabrication. Good insulation performance of qualified polymer materials guarantees stable and safe operation of electronic devices.

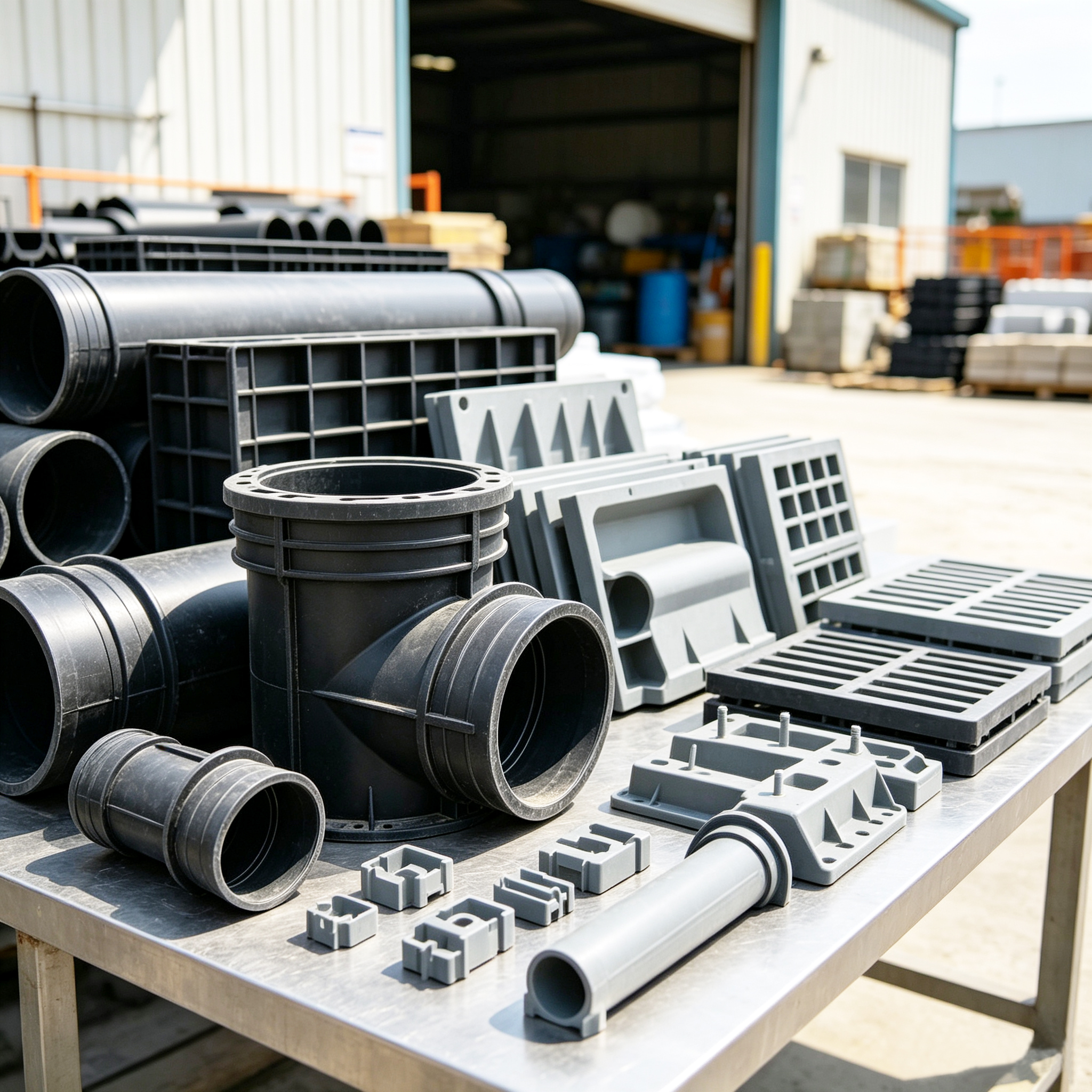

Construction and Infrastructure Plastic water‑supply pipelines, anti‑corrosion building profiles, waterproof sheets and protective isolation parts are typical fabrication outputs, taking advantage of anti‑rust and low‑maintenance features.

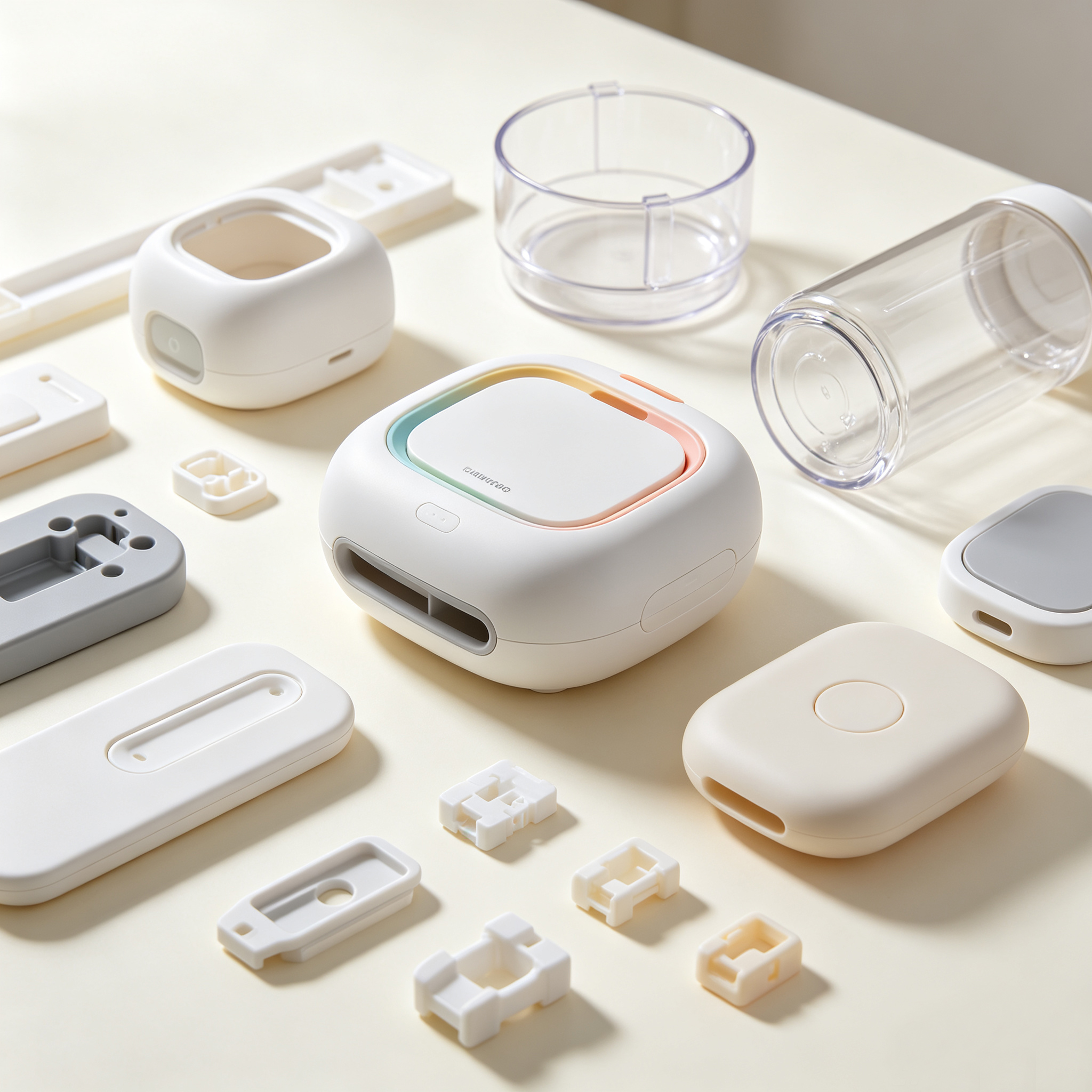

Consumer Goods Production Daily‑use storage containers, household equipment shells, decorative transparent panels and recreational product components are completed by plastic fabrication processes, balancing appearance quality and practical usability.
Final quality depends on raw‑material grade, adopted plastic fabrication workflow and original product design. High‑quality plastic parts deliver good durability, weather resistance and precise dimensional control. Poor‑grade feedstock or unstable process parameters may cause brittleness, warping deformation or shortened service lifespan.
Durability is subject to material selection, structural design and process control. Premium polymer grades, reasonable engineering design and standardized finishing workflows improve resistance against abrasion, impact and outdoor environmental damage. Inferior raw materials, improper process setup or mismatched material selection will lead to poor durability.
Plastic extrusion is one specific technique within plastic fabrication. Plastic fabrication covers the full spectrum of cutting, molding, welding and assembly processes. Extrusion specifically melts plastic feedstock and pushes molten material through precision dies to make constant‑cross‑section profiles such as pipes, tubes and window profile blanks.
Plastic fabrication produces parts from various polymer materials; sheet‑plastic bending is one sub‑method for signage, display covers and equipment enclosures. Sheet metal bending reshapes thin metal sheets for brackets, equipment housings and panel components. Metal workpieces generally provide higher strength, rigidity and durability compared with plastic counterparts.
Plastic fabrication is a comprehensive manufacturing system covering design, material selection, forming, post‑processing and quality inspection. It supports fast prototyping as well as mass‑volume production for automotive, medical, aerospace and consumer product sectors. Engineers should compare material performance, process characteristics and overall project budget before locking final plastic fabrication solutions. When you need reliable support for custom plastic prototyping or batch‑production orders, Minghao delivers comprehensive manufacturing resources and value‑added services. You can visit the official website to submit project information and apply for a free, no‑obligation quote.
