Engineers often search for direct comparisons between cutting and forming metals. While frequently framed as a debate, laser cutting and sheet metal bending actually operate as sequential manufacturing phases. You rarely choose just one over the other. Misunderstanding the distinct boundaries of these two processes causes downstream issues on the factory floor. It leads to avoidable design flaws. It creates inaccurate cost forecasting models. It also causes vendor misalignment during production runs.
This article establishes an objective framework to evaluate your part requirements and process constraints. We will explore how to align these methods efficiently. You will learn how to balance tolerances across both stages. Finally, you will discover how to select the right manufacturing partner for your project.
Laser cutting dictates the precise 2D geometry, while bending translates that blank into a functional 3D structure.
Heat-Affected Zones (HAZ) from laser cutting directly impact the material's structural integrity during the bending phase.
Design for Manufacturability (DFM) must account for both tool-less laser profiling and tooling-dependent press brake constraints.
Evaluating a vendor requires assessing how tightly they integrate cutting and bending quality control loops to minimize tolerance stack-up.

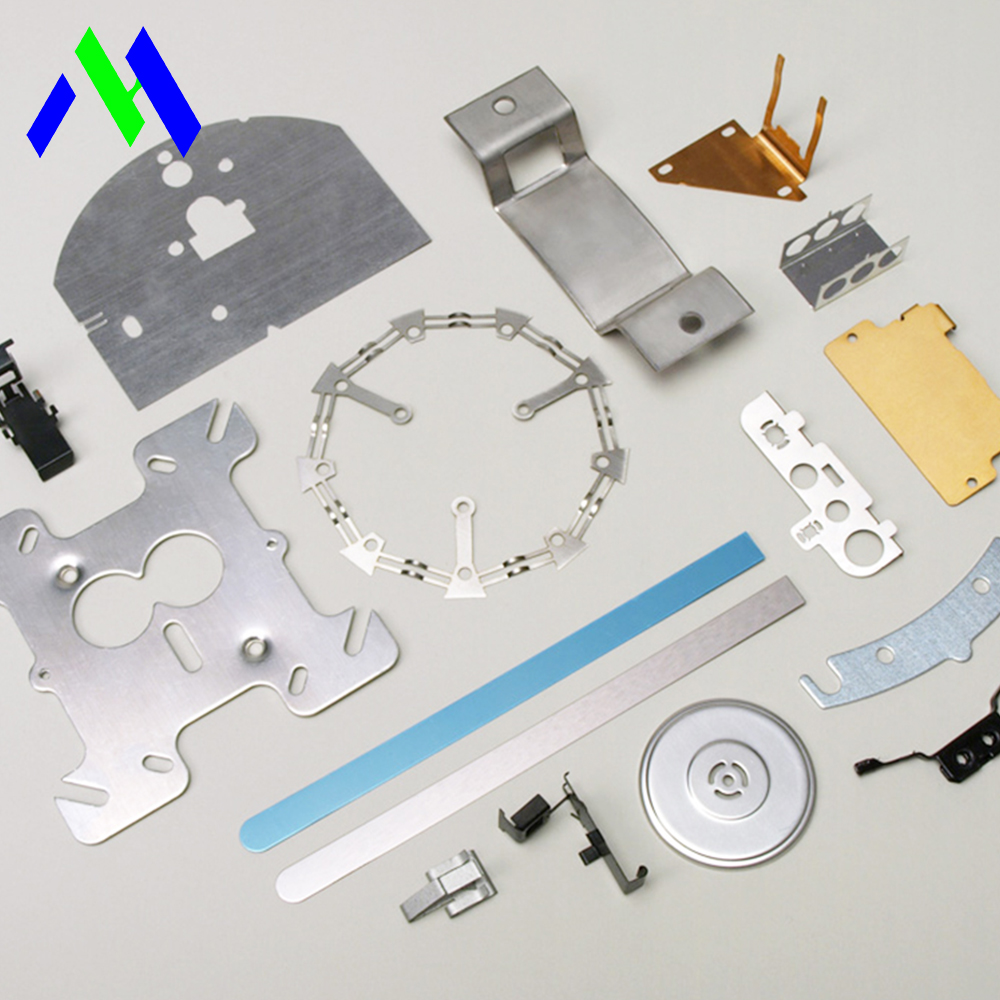

Let us detail the core distinction between these methods. Material removal fundamentally differs from material deformation. A typical sheet metal processing service employs both methods sequentially. You cut the flat blank first. Then you bend it into the final shape.
Laser cutting delivers high-speed, tool-less 2D profiling. You rely on it for complex contours. It excels at rapid prototyping scenarios. Engineers use lasers to achieve tight-tolerance hole placement across flat sheets. The laser cleanly slices through the metal. It leaves a highly accurate two-dimensional footprint.
Bending transforms these flat blanks into usable components. Press brakes use specific dies to create 3D structural forms. Bending adds necessary rigidity to weak parts. It reduces complex welding requirements across large assemblies. You need bending to create detailed enclosures, chassis, and structural brackets.

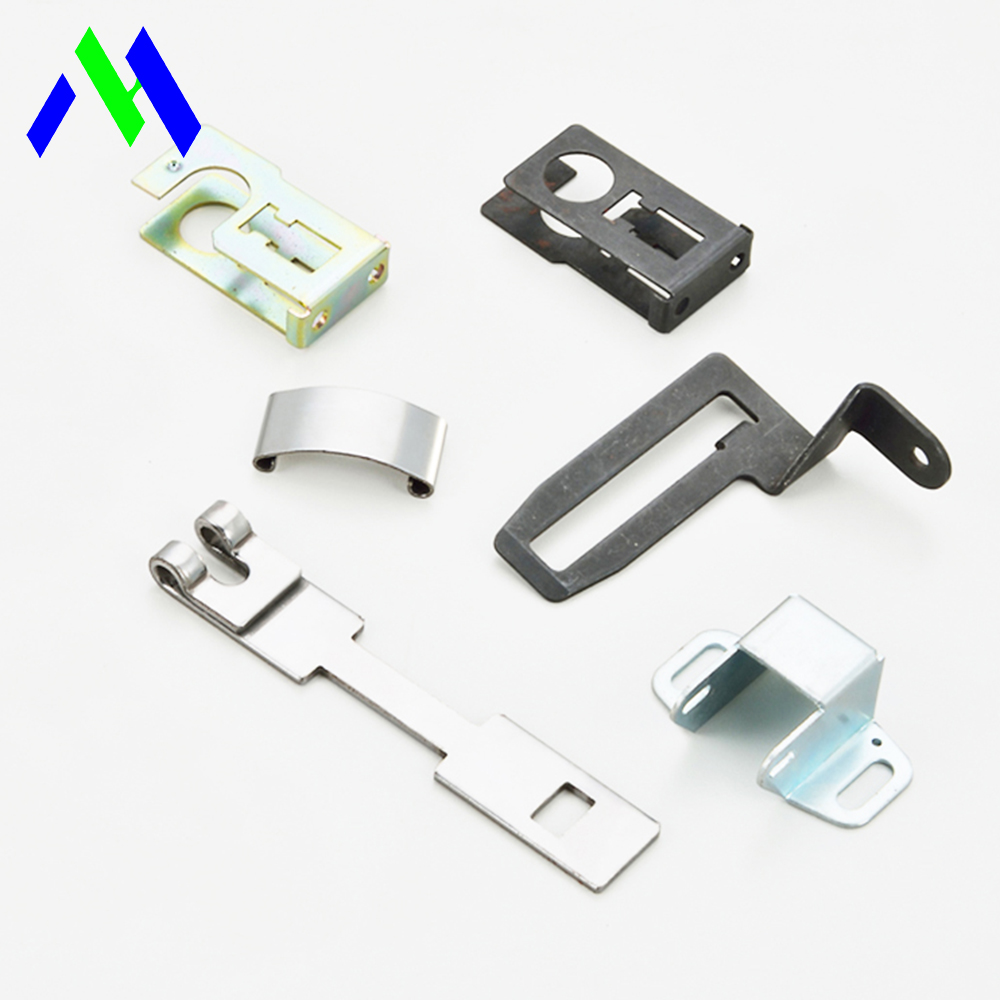

These processes rely entirely on each other. When sourcing laser cutting fabrication parts, you usually require subsequent bending steps. The decision is rarely about which single process to use. Instead, you must figure out how to design effectively for both operations. You must view them as two halves of a single production cycle.
Every laser cutting fabrication service operates within strict physical boundaries. Material types and thicknesses dictate the equipment you choose.
Carbon steel handles laser heat very well. It cuts cleanly at high speeds. Highly reflective metals like copper and aluminum pose significant challenges. They bounce the laser beam back toward the focusing lens. Fiber lasers handle these reflective materials much better than older CO2 lasers. Optimal thickness ranges vary significantly based on your selected laser power. Thick plates require massive energy output.
You must understand kerf width and expected tolerances. The laser beam removes a tiny sliver of material. Industry professionals call this the kerf. No cut is perfectly vertical or completely flawless. You will often see micro-burrs along the bottom edge of the sheet. Edge striations become highly visible on thicker metal plates. Setting realistic expectations around edge perpendicularity saves time later. Do not expect flawless edges on thick steel.
One major advantage is the complete absence of physical tooling. You face zero tooling costs for the cutting phase. This reality makes laser cutting highly viable for low-volume runs. You can execute rapid design iterations without financial penalty. Changing a design just requires uploading a new software file.
Bending sheet metal introduces complex physics into your manufacturing workflow. Material yield strength determines how easily a metal bends without breaking. The K-factor calculates where the neutral axis shifts during deformation. You must also respect minimum bend radii to prevent material fracturing on the outside corner. Pushing a metal past its structural limits causes instant failure.
Springback remains an inevitable reality post-bending. When the press brake releases pressure, the metal tries to return to its flat state. Highly precise bending requires more than just modern machines. It demands predictive software. It also requires highly experienced operators. They must over-bend the material by just the right amount. This over-bending compensates for the springback to achieve your target angle.
Unlike laser cutting, bending requires physical tools. You need specific punch-and-die combinations to form different angles. Standard V-dies handle most basic shapes. However, custom geometries often require custom-machined tooling. These bespoke tools incur significant upfront costs. This directly impacts your return on investment for low-volume production runs. You must justify the tooling expense through higher part volumes.
The initial cutting phase directly affects your subsequent bending success. Localized heating from the laser creates a Heat-Affected Zone (HAZ) along the cut line. This rapid heating and cooling cycle hardens the material edge. Hardened edges increase the risk of micro-cracking during bending operations. If you place bends too close to a laser-cut edge, the material might fail catastrophically.
Grain direction also plays a crucial role in forming success. Metal sheets have a specific grain structure from the original rolling mill. Nesting software often rotates parts on the sheet to maximize material yield. However, this rotation might misalign the metal grain for the bending phase. Bending parallel to the grain leads to severe structural weakness. It causes immediate cracking along the bend line.
You must implement specific Design for Manufacturability (DFM) interventions. Incorporate these features into your CAD models early:
Add bend relief cuts to prevent corner tearing during deformation.
Include corner chamfers to reduce stress concentrations on sharp edges.
Maintain appropriate hole-to-bend distance ratios.
Orient critical bends perpendicular to the material grain structure.
These features prevent unwanted deformation. They ensure the final 3D part meets your original design intent perfectly. Ignoring them guarantees high scrap rates.
We must analyze what drives up costs across both processes. Setup times differ drastically between prototyping and production runs.
Laser cutting requires simple digital programming. Setup is incredibly fast. You just load the material, verify the nozzle, and run the code. Bending requires physical die changes. Operators must fetch the tools. They install them into the press brake. They must perform test bends to dial in the angles properly. This manual setup process is noticeably slower.
Sometimes you must consider alternative processes to save money. Stamping or punching makes better commercial sense for extreme high-volume runs. Stamping utilizes progressive dies to cut and form simultaneously. It costs more upfront but runs faster. Waterjet cutting becomes necessary for exceptionally thick materials. You also use waterjets for highly heat-sensitive metals to avoid the HAZ entirely.
Tolerance stack-up costs can ruin project budgets. Specifying excessively tight tolerances across both cutting and bending creates friction. It exponentially drives up scrap rates on the floor. Unit costs inflate because operators spend more time measuring and adjusting. You should only mandate tight tolerances where the part absolutely requires them for final assembly.
Let us review a breakdown of these operational drivers.
Process Feature | Laser Cutting Phase | Sheet Metal Bending Phase |
|---|---|---|
Setup Speed | Very Fast (Digital upload) | Slower (Physical tool changes) |
Tooling Requirements | None (Tool-less process) | Specific punch and die sets |
Volume Sweet Spot | Low to Medium runs | Medium to High runs |
Tolerance Reality | Defines initial blank accuracy | Compounds any blank inaccuracies |
Choosing the right manufacturing partner prevents cascading errors. You must avoid fragmented supply chains whenever possible. Using one vendor for laser cutting and another for bending introduces severe risks. When tolerance stack-up occurs, accountability issues arise instantly. Neither vendor wants to take the blame for out-of-spec parts. The cutting vendor blames the bending operator. The bending operator blames the flat blank. A unified metal fabrication service eliminates this finger-pointing completely.
Look closely for equipment synergy on the factory floor. The best facilities integrate their digital workflows seamlessly. Their laser cutting software communicates directly with their press brake CNC controls. This integration calculates flat patterns automatically. It adjusts for specific die parameters before the laser even fires. This proactive approach prevents forming errors.
You should also investigate their quality control verifications. A trustworthy partner measures critical dimensions systematically.
They perform laser scanning on the first cut article.
They execute automated angle measurements directly on the press brake.
They verify material grain alignment before forming begins.
They document tolerance stack-up across the entire production run.
These integrated QC loops ensure your parts fit together perfectly in final assembly. They guarantee consistency from the first part to the last.
You must base your engineering choices on a solid understanding of both processes. Volume, geometric complexity, and acceptable tolerances dictate your path forward. Minimizing manufacturing risk requires viewing cutting and bending as a unified ecosystem. They are not isolated tasks. Success in one depends entirely on the precision of the other. The flat blank defines the final folded structure.
Take these concrete steps to improve your next project:
Review your current CAD designs against established DFM guidelines.
Identify any bends located dangerously close to laser-cut edges.
Consolidate your supply chain to ensure single-source vendor accountability.
Request a unified DFM review from a highly qualified fabrication partner today.
A: Yes, but it presents significant challenges. 3D laser cutting requires specialized 5-axis machines or tube lasers to navigate formed geometries. This specialized equipment is expensive and less common. Flat-pattern cutting prior to bending remains the industry standard. Cutting flat blanks is much faster, easier to program, and guarantees maximum cost efficiency for most projects.
A: You must follow strict baseline DFM rules to prevent distortion. The minimum distance from a hole or cut edge to the bend line should be at least 2.5 to 3 times the material thickness, plus the bend radius. Placing cuts any closer invites edge tearing or hole elongation during the press brake forming process.
A: Yes, it strongly affects bendability. Laser cutting generates a localized Heat-Affected Zone (HAZ). Thermal-sensitive alloys like aluminum absorb this heat quickly. The edges become work-hardened and brittle. When you place these hardened edges under the severe stress of a press brake, they often crack. You must account for this by adjusting bend radii or relieving edges.
A: CNC laser cutting relies primarily on digital upload processes. Operators load a file, and the machine cuts the flat sheet with minimal physical intervention. Press brake bending requires intense physical labor. Operators must manually install specific punches and dies. They must also perform calibration test bends to account for material springback before running the actual production batch.
