Custom industrial component manufacturers frequently face a critical decision: select injection molding or casting for mass-produced and prototype parts. Although both are liquid-forming subtractive-free manufacturing technologies, they differ drastically in raw material compatibility, mold tooling investment, dimensional tolerance control, cycle efficiency, and long-term component durability. This in-depth industrial guide systematically compares precision plastic injection molding, high-pressure die casting, sand casting and investment casting, clarifying their respective applicable production volumes, material constraints, and engineering limitations. By analyzing core technical indicators such as tooling amortization, surface roughness, mechanical property consistency, and post-processing workload, design engineers and procurement managers can identify the most cost-effective manufacturing route matching their product specifications, factory production capacity, and quality compliance standards.

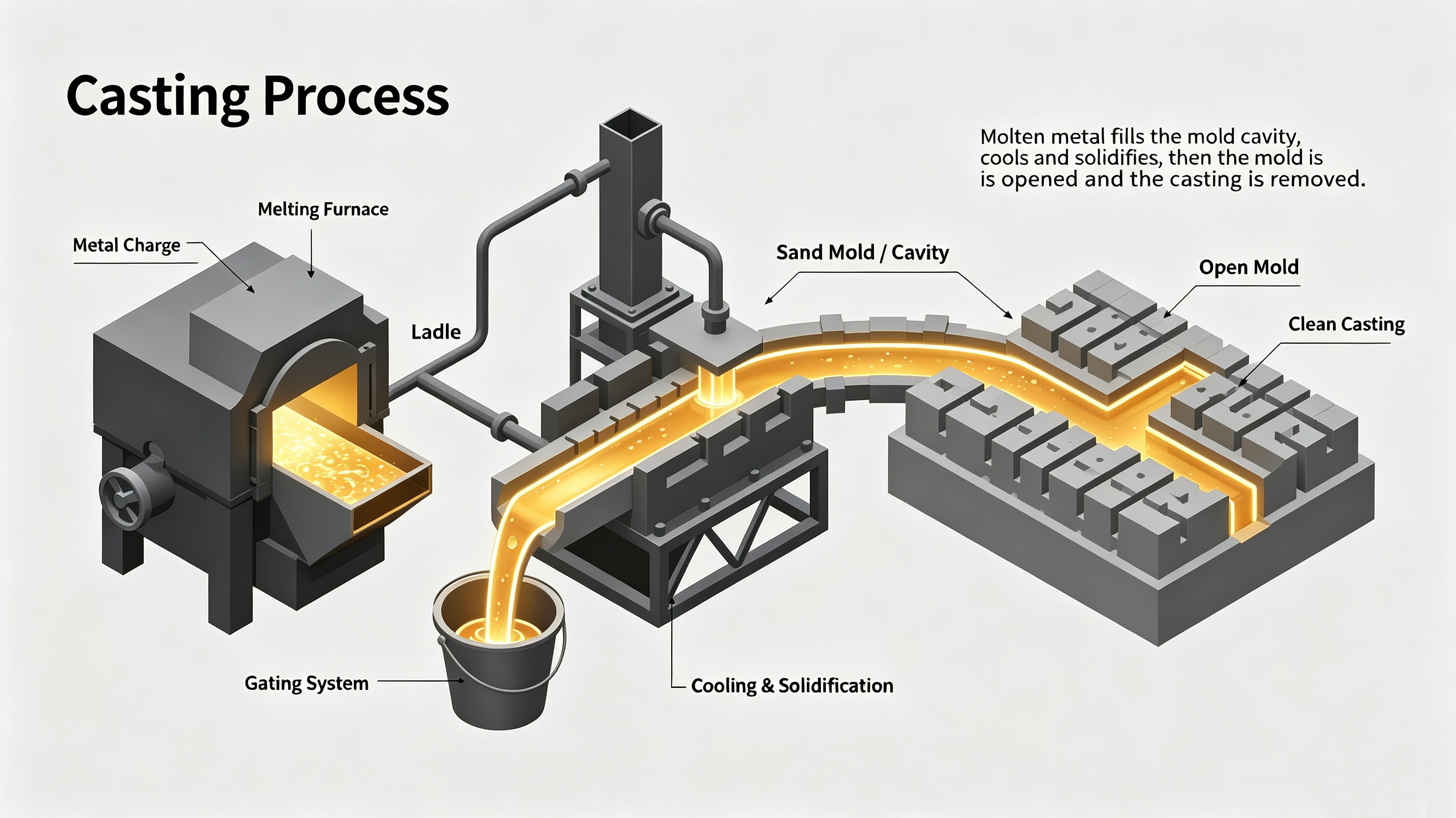

Industrial casting covers a full category of near-net-shape manufacturing techniques. The core working logic is melting solid raw materials into liquid fluid, pouring or injecting molten feedstock into prefabricated hollow mold cavities, then cooling and solidifying the medium to replicate the cavity’s geometric contour completely. Dating back over 6,000 years to ancient bronze craftsmanship, modern industrial casting has evolved standardized mold systems including hardened steel dies, resin-bonded sand molds, and refractory ceramic shells, capable of manufacturing ultra-large structural castings and micron-level precision thin-wall components simultaneously. Casting is the only mature mass-production technology applicable to most molten metal alloys, high-temperature glass, and refractory ceramic blanks.
Custom injection molding is a high-speed automated forming process dedicated to polymer materials. Granular thermoplastic, thermoset or elastomer feedstock is conveyed into a heated injection barrel, fully plasticized into low-viscosity melt, then hydraulically injected under high clamping force into precision split steel molds. After rapid cooling and solidification inside the mold cavity, finished parts are automatically ejected by ejector pin systems without secondary demolding finishing for most standard designs. Equipped with multi-station automated production lines, injection molding realizes uninterrupted mass output of thin-wall plastic enclosures, optical parts and composite polymer assemblies, with consistent dimensional repeatability across millions of production cycles.
Three mainstream casting technologies dominate modern precision manufacturing, each with unique tooling structures, production volume thresholds and applicable part sizes.
Die casting adopts reusable hardened tool steel dies matched with high-pressure casting machines. Molten aluminum, zinc and copper non-ferrous alloys are forcibly injected into sealed, lubricated mold cavities under tons of hydraulic pressure.
Core advantages: Tight dimensional tolerances (±0.02mm typical), smooth as-cast surfaces, complex internal ribs and boss structures can be integrated in one forming cycle;
Service life benchmark: Standard single-cavity die casts support 20,000–500,000 production shots depending on alloy abrasiveness;
Standard mold accessories: Internal cooling runners, main sprues, guide pins, core pins and automatic ejection mechanisms are embedded to stabilize batch consistency;
Target applications: Medium-small automotive structural parts, electronic metal brackets, miniature mechanical assemblies.
Sand casting utilizes silica sand bonded with resin as disposable mold media, with molten metal gravity-poured into pre-compacted sand cavities.
Core advantages: Zero upper limit on part dimension, ultra-low upfront mold cost, excellent thermal shrinkage buffering capacity to avoid cooling cracks;
Material compatibility: Compatible with all meltable ferrous and non-ferrous alloys including carbon steel and stainless steel;
Production positioning: Ideal for low-volume prototypes, oversized mechanical housings and heavy-duty industrial frames with small batch demands.
Also labeled lost-wax casting, this process relies disposable wax patterns wrapped in multi-layer refractory ceramic shells. After dewaxing and high-temperature shell sintering, molten metal fills the hollow ceramic cavity to form ultra-precise castings.
Core advantages: Ultra-thin wall forming capacity, mirror-grade as-cast surface finish, minimal post-grinding and polishing;
Limitation: Higher single-piece cost than sand casting;
Target applications: Medical implant metal parts, aerospace miniature structural castings, precision gear components with strict geometric tolerances.
Conventional plastic injection molding serves as the baseline process, with three specialized derivative technologies expanding material and structural processing boundaries:
Metal or ceramic micron powder is blended with polymer binder to form homogeneous feedstock, then processed via standard injection equipment. After molding, green parts go through catalytic debinding and high-temperature sintering to eliminate all organic carriers, producing fully dense metal/ceramic precision components. It combines the complex geometry freedom of injection molding with the mechanical performance of solid metal alloys.
Dual independent injection barrels feed two distinct polymer melts into one shared nozzle. The process creates a dual-layer part structure: rigid core material encapsulated by soft skin material, which optimizes impact resistance, chemical resistance and tactile surface texture in one integrated cycle. Typical use cases include soft-touch plastic handles and multi-color consumer electronic housings.
Low-melting alloy cores are pre-cast to replicate the internal hollow contour of target parts, then fixed inside injection molds for thermoset plastic overmolding. After molding, the complete assembly is immersed in constant-temperature hot liquid to melt and drain the internal core, leaving seamless hollow plastic components. It is widely adopted for automotive intake manifold mass production.
Evaluation Dimension | Custom Injection Molding | Die Casting | Sand Casting | Investment Casting |
|---|---|---|---|---|
Primary Raw Materials | Thermoplastics, thermosets, elastomers, MIM metal powder | Aluminum, zinc, copper non-ferrous alloys | All meltable ferrous & non-ferrous metals | Titanium, stainless steel, cobalt-chrome alloys |
Typical Upfront Tooling Cost | High (Precision hardened steel multi-cavity molds) | High (Heat-resistant tool steel dies) | Ultra-Low (Disposable sand molds) | Medium-High (Ceramic shell & wax mold tooling) |
Optimal Production Batch | 10,000+ mass production | 5,000–500,000 medium-high volume | 1–500 low-volume prototypes | 100–10,000 precision small batches |
Dimensional Tolerance | ±0.03 ~ ±0.1mm | ±0.02 ~ ±0.08mm | ±0.3 ~ ±1.0mm | ±0.01 ~ ±0.05mm |
As-Machined Surface Ra | 0.05–1.6μm | 1.6–6.3μm | 12.5–50μm | 0.8–3.2μm |
Maximum Single Part Size | Restricted by injection mold base | Medium-small parts | Unlimited ultra-large castings | Miniature thin-wall components |
Post-Processing Workload | Minimal (Deburr only) | Medium (Deburr, surface polishing) | Heavy (Grinding, welding repair) | Light (Minor polishing) |
Mechanical Consistency | Moderate (Polymer creep risk) | High (Uniform metal grain) | Low (Shrinkage deformation risk) | Excellent (Fine grain structure) |
Material Fluidity Requirement | Low-viscosity polymer melt only | Medium liquid metal | All molten metal grades | High-purity low-shrink alloys |
Ultra-high automated cycle speed: A single injection cell can output thousands of finished parts daily with stable repeatability;
Rich material customization: Supports single or blended thermoplastics, elastomers, fiber-filled modified plastics and multi-material co-integration;
Superior as-molded surface finish: SPI-standard mold polishing delivers cosmetic-grade surfaces without secondary sanding;
Minimal manual labor after molding: Ejector systems automatically separate parts from molds, cutting downstream assembly costs.
Significant mold capital expenditure: Multi-cavity precision steel molds carry high one-time non-recurring engineering (NRE) fees, uneconomical for small batch prototypes;
Material limitation barrier: Cannot process solid metal, glass or ceramic blanks without MIM auxiliary processes;
Long mold development lead time: Mold design, CNC machining and trial molding may take 4–8 weeks before formal mass production;
Inherent polymer defects: Sink marks, warpage and flow lines are unavoidable without strict DFM optimization.
Full metal material compatibility: Covers carbon steel, stainless steel, titanium and all non-ferrous alloys unavailable for standard injection molding;
Ultra-large part manufacturing capability: Sand casting produces heavy structural frames impossible for injection equipment;
Flexible prototyping cost control: Sand casting eliminates expensive hard mold investment for low-volume test pieces;
Outstanding mechanical performance: Dense metallic castings deliver higher tensile strength and fatigue resistance than most plastic injection parts.
Batch scalability bottleneck: Sand and investment casting rely on manual mold preparation, restricting daily output volume;
Heavy post-processing burden: Sand castings require extensive grinding to remove gating residues and surface defects;
Specialized labor demand: Die casting and investment casting need certified technicians to control molten metal temperature and solidification rates;
Partial material exclusions: Low-fluidity high-strength steel alloys cannot be cast with standard die casting equipment.
Expert Comment from Audrius Zidonis PhD (Principal Engineer, Zidonis Engineering) “The decision between injection molding and casting hinges on three core variables: raw material type, target production volume, and mechanical performance thresholds. During my optical component development projects for UV LED polycarbonate reflectors, injection molding was the only feasible solution to maintain micron-level optical surface precision while supporting scalable monthly mass shipments. For load-bearing titanium medical brackets requiring biocompatible metal substrates, investment casting became the mandatory forming route.”
Engineers can follow these standardized design guidelines to lock in the optimal manufacturing process:
Rule 1: If your product is polymer-based and requires annual output exceeding 10,000 units, prioritize multi-cavity injection molding to lower per-unit amortized mold cost;
Rule 2: If components are metal alloy with batch sizes under 500 units, adopt sand casting to skip expensive hard die fabrication;
Rule 3: Miniature precision metal parts with thin wall (<1mm) and strict surface requirements must use investment lost-wax casting;
Rule 4: Medium-volume aluminum/zinc electronic structural parts (5,000–100,000 pieces) achieve best cost balance via high-pressure die casting;
Rule 5: Hollow complex thermoset automotive components should adopt fusible core injection molding instead of metal casting + plastic secondary assembly.
There exists no universal “best” liquid forming manufacturing process; the optimal solution is determined by raw material category, production scale, dimensional tolerance standards and target mechanical performance. Injection molding dominates high-volume polymer product manufacturing with unmatched automation efficiency and cosmetic quality. The full spectrum of casting technologies fills the market gap for metal, ceramic and oversized structural components that plastic molding cannot realize.
If your engineering team struggles to evaluate injection molding vs. casting process feasibility, Minghao Precision offers one-stop DFM design review, prototype trial production and mass OEM manufacturing services covering both technologies. Our senior process engineers provide free customized quotation analysis for custom injection mold tooling and all types of casting fixtures.
