Have you ever wondered how manufacturers create precise, complex parts for industries like aerospace or medical devices? The secret often lies in a specialized machining process called Wire EDM.Wire EDM (Electrical Discharge Machining) uses electrical sparks to cut intricate shapes with incredible precision.In this article, we’ll explore how Wire EDM works, its significance, and its applications in various industries.
Wire EDM, or Wire Electrical Discharge Machining, is a cutting-edge process used to create intricate shapes in conductive materials. Unlike traditional machining, it uses electrical discharges (sparks) to erode the material, allowing for precise cuts without physical contact. This makes it ideal for applications requiring high accuracy, such as aerospace and medical device manufacturing.
At its core, Wire EDM uses a thin wire, typically made of brass or copper, as an electrode. The wire is fed through the material, and electrical sparks are generated between the wire and the workpiece. These sparks vaporize small amounts of the material, gradually cutting through it to form the desired shape.
Wire EDM stands apart from conventional machining methods like milling and turning in several ways:
Advantage | Description |
Precision | Wire EDM can achieve tolerances as tight as 0.0001 inches, far beyond traditional tools. |
No Mechanical Contact | Unlike milling or turning, Wire EDM operates without touching the workpiece, reducing tool wear and mechanical stress. |
Complex Shapes | Wire EDM excels in cutting complex geometries, sharp corners, and fine internal details that other methods struggle with. |
This unique ability makes Wire EDM perfect for delicate, high-precision components in industries like aerospace, automotive, and medical devices.

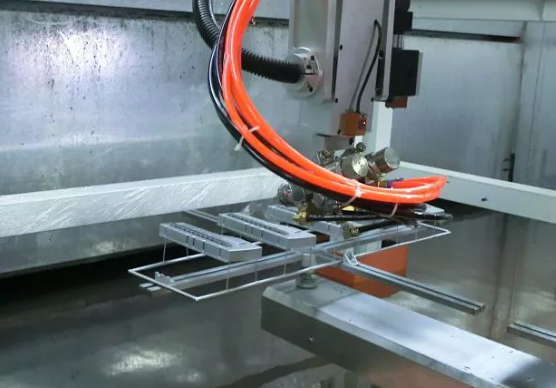

Before the cutting process begins, the material being machined is carefully placed in the Wire EDM machine. The workpiece is usually secured in place with clamps to prevent any movement during cutting. The wire, often made of brass or copper, is then threaded through the machine. It’s positioned very close to the workpiece, but it doesn’t touch it. This setup is crucial for ensuring precision throughout the cutting process.
Once the wire is in position, electrical discharges are generated between the wire and the workpiece. These sparks are controlled by the power supply, which adjusts the voltage and current. The sparks cause small amounts of the material to vaporize or melt, creating a small gap that allows the wire to continue cutting. The size of the spark gap is vital—too large, and the cut won’t be precise; too small, and the process won’t work effectively.
Dielectric fluid, usually deionized water, plays an essential role during the Wire EDM process. It cools the wire, ensuring it doesn’t overheat from the constant sparking. This fluid also helps flush away debris and metal particles created during cutting, preventing them from interfering with the process. Without this fluid, the cutting area could quickly become contaminated, reducing precision and causing machine errors.
The wire doesn’t move randomly. Using CNC (Computer Numerical Control) technology, the wire follows a precisely programmed path. This allows for complex shapes and intricate details to be cut with extreme accuracy. The CNC system ensures the wire stays aligned throughout the cutting process, adjusting its position as needed. It allows operators to create parts that are difficult or impossible to achieve using traditional methods.
In Wire EDM, the wire acts as the cutting tool. It’s typically made of materials like brass, coated copper, or tungsten. Brass is the most commonly used due to its excellent conductivity and cost-effectiveness. Coated copper wires, with a thin layer of zinc or other metals, are used for higher cutting speeds and smoother finishes. Tungsten wires are used when working with tougher materials due to their strength and high melting point.
The diameter of the wire plays a significant role in the precision of the cut. Thinner wires allow for finer, more intricate cuts but can break easily. Thicker wires are more durable but can result in less precise cuts.
Dielectric fluid, such as deionized water or oil, is essential for the Wire EDM process. Deionized water is the most commonly used fluid due to its excellent cooling properties and ability to wash away metal debris. It helps to maintain the cutting area clean, preventing short circuits while controlling the heat generated during cutting.
Oil-based dielectric fluids are used for applications requiring finer surface finishes. These fluids reduce the occurrence of thermal cracks and provide better control over the cutting process, especially when working with materials that generate more heat.
The power supply unit (PSU) is responsible for generating the electrical discharges that make the Wire EDM process possible. The PSU controls the voltage and frequency of the pulses delivered between the wire and the workpiece. By adjusting these parameters, the system can optimize the cutting process, ensuring that sparks are generated at the right intensity to vaporize the material without damaging the workpiece.
The precision of the electrical discharges is crucial. Too much power could cause excessive material erosion, while too little would result in a slow or incomplete cut.
The CNC system is the brain of the Wire EDM machine. It controls the movement of the wire along the programmed cutting paths. The system makes fine adjustments to parameters such as wire tension, feed rate, and cutting speed, ensuring that the wire stays aligned and the cut remains precise. This level of control enables the creation of complex shapes and detailed features that would be difficult to achieve using traditional machining methods.
By using CAD/CAM software, operators can program the machine to execute highly detailed and accurate cuts, significantly reducing the potential for errors and improving overall production efficiency.
One of the most significant advantages of Wire EDM is its ability to achieve extremely tight tolerances. It can produce cuts with precision as fine as 0.0001 inches, which is crucial for industries requiring high accuracy. This makes Wire EDM ideal for sectors like aerospace, medical device manufacturing, and electronics, where parts need to fit together perfectly and meet strict standards.
Wire EDM excels at cutting intricate shapes and complex geometries that other machining methods struggle with. It can easily create sharp internal corners, detailed contours, and fine features. Whether it’s small, precise holes, intricate patterns, or detailed molds, Wire EDM can handle complex designs that would be impossible for traditional methods like milling or turning.
Another major benefit of Wire EDM is that it doesn’t involve any physical contact between the tool and the material. Since the wire never touches the workpiece, there’s no mechanical stress applied to the material. This is particularly useful for delicate or brittle materials, as it prevents any distortion or warping that could happen with traditional machining techniques.
Wire EDM minimizes the heat-affected zone (HAZ) due to the localized nature of the electrical discharges. This is important because it prevents excessive heat buildup, which could alter the properties of the material. As a result, the workpiece retains its original strength, hardness, and structural integrity, even after complex cutting processes.
Wire EDM is crucial in the aerospace industry for creating precise components such as turbine blades, engine parts, and structural components. These parts must meet tight tolerances and intricate designs to ensure safety and performance. Wire EDM can cut complex shapes in tough materials like titanium and high-strength alloys, which are commonly used in aerospace applications.
In the automotive industry, Wire EDM is used to cut molds for car parts, as well as intricate components like injector nozzles and transmission gears. Its ability to create fine details and sharp corners makes it ideal for producing components with complex geometries and tight tolerances. This ensures that each part fits perfectly within the larger assembly.
Wire EDM plays a key role in the medical field, particularly in the manufacturing of surgical tools and implants. For example, it is used to create orthopedic components such as joint replacements and surgical instruments with high precision. The process’s ability to handle delicate materials and create complex shapes makes it perfect for medical devices where accuracy is critical for patient safety.
Wire EDM is widely used in tool and die making for producing molds, dies, and punches. These components require fine details and extreme durability to handle high-volume production runs. Wire EDM’s precision and ability to cut intricate designs make it the preferred choice for creating tools that need to withstand wear and maintain accuracy over time.
In electronics, Wire EDM is essential for creating precise connectors, small parts, and semiconductor components. It allows manufacturers to achieve fine details and tight tolerances in the fabrication of microelectronic parts, which are crucial for devices like smartphones, computers, and medical equipment. The precision of Wire EDM helps ensure that each part works efficiently in the final product.
1. What is Wire EDM and how does it work?
Wire EDM (Electrical Discharge Machining) uses a thin, electrically charged wire to cut through conductive materials by generating sparks. These sparks erode the material along the wire’s path, creating precise shapes without physical contact.
2. What industries use Wire EDM?
Wire EDM is widely used in aerospace, automotive, medical device manufacturing, tool and die making, and electronics, where precision and complex shapes are critical.
3. How accurate is Wire EDM?
Wire EDM can achieve tolerances as tight as 0.0001 inches, making it ideal for high-precision components in industries like aerospace and medical devices.
4. What materials can be cut with Wire EDM?
Wire EDM can cut a wide range of conductive materials, including stainless steel, titanium, carbide, and copper, but not non-conductive materials like plastic or wood.
5. What are the advantages of Wire EDM?
Wire EDM offers high precision, the ability to cut complex shapes, minimal heat distortion, and no mechanical stress on the workpiece.
Wire EDM uses electrical discharges to precisely cut conductive materials without physical contact. It achieves tight tolerances and can create complex shapes, making it essential in industries like aerospace, automotive, and medical devices.
