Robots are no longer a vision of the future. Today, industrial robots assemble cars, warehouse robots sort parcels, and surgical robots assist doctors in operating rooms. Behind every reliable robot stands a set of precisely manufactured components that determine its accuracy, speed, and service life. Among all manufacturing methods, CNC machining has become the core technology for producing robot parts. It gives robotic components the dimensional accuracy, repeatability, and material flexibility they demand. This article explains, in plain language, why CNC machining matters for robot parts, what components are typically produced, which materials and tolerances are recommended, how the process works, and how to choose a reliable machining partner.
CNC stands for Computer Numerical Control. In simple terms, CNC machining is a manufacturing method in which computer-controlled machines cut metal or plastic into precisely shaped parts. The machine follows a pre-programmed path to remove material step by step, turning a block of raw material into a finished component. Think of it as an extremely careful craftsman who never gets tired and makes the same cut at the same position every single time.
Robots are machines that move. A typical industrial robot contains dozens or even hundreds of moving parts: joints, shafts, gears, housings, and mounting plates. All these parts must fit together perfectly. If a joint shaft is too thick, the robot arm cannot rotate smoothly. If a mounting surface is too thin, the arm may vibrate. This is why robot parts demand the accuracy that only CNC machining can consistently deliver.
Another key reason is cumulative error. A robot arm is built from several segments connected by joints. When the arm reaches forward, small deviations in every joint are added together. For example, if six joints each have a deviation of 0.05 mm, the end of the arm may drift by far more than 0.3 mm, which can be the difference between a screw hole lining up and missing it completely. High-precision robot parts keep this chain of error under control.

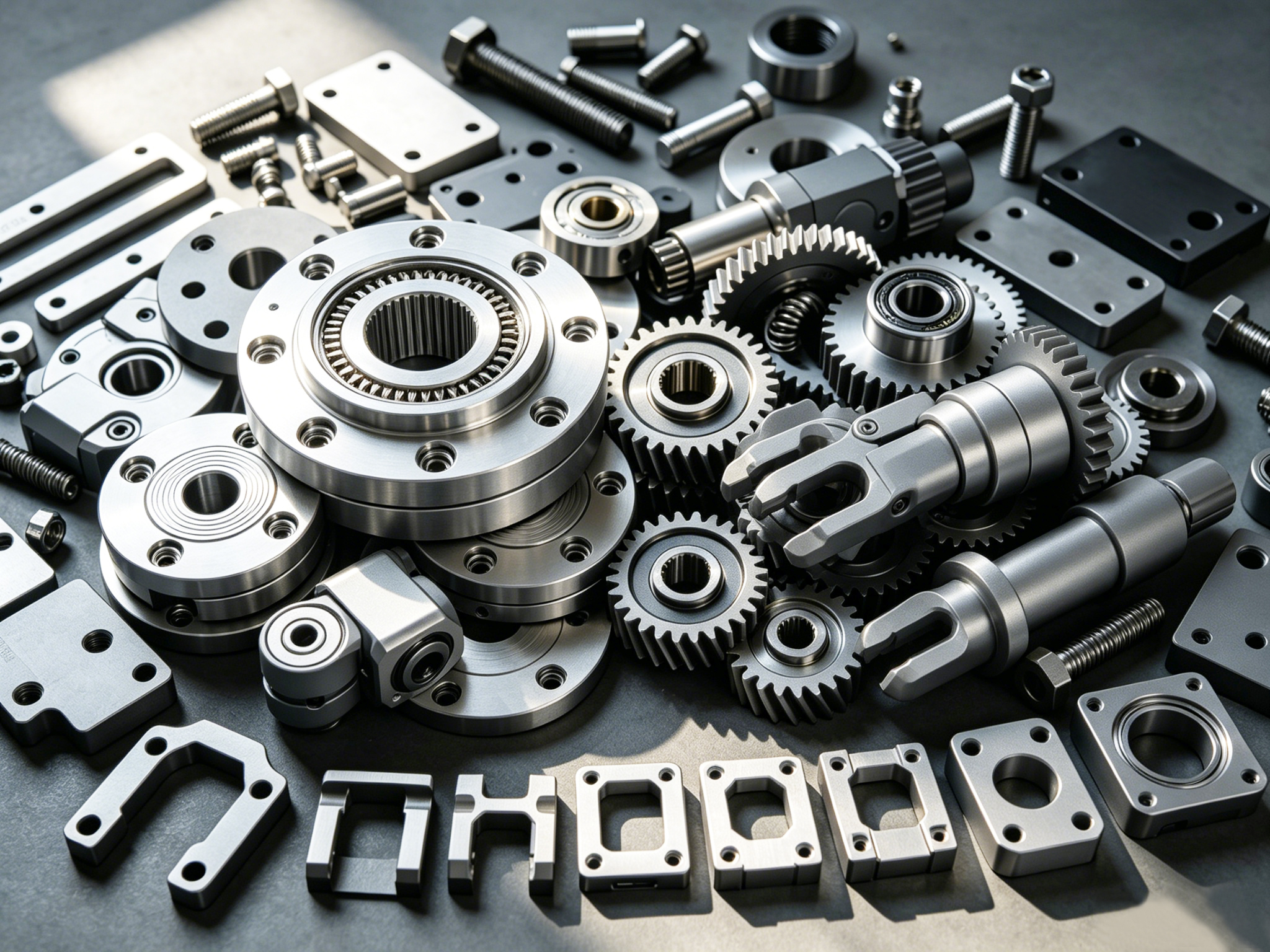

A wide variety of robotic components are manufactured through precision CNC machining:

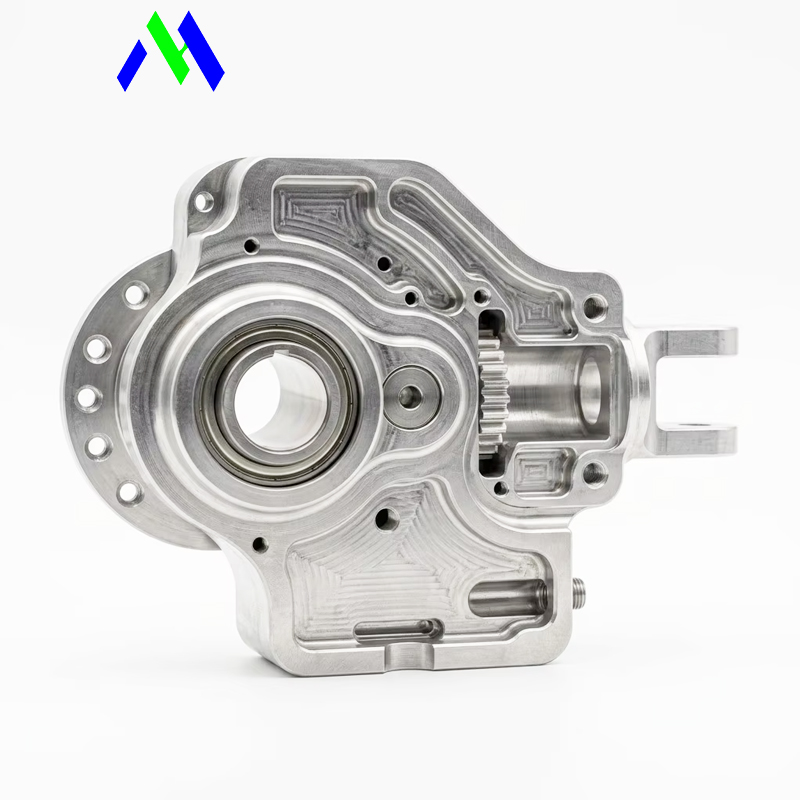

Robot arm segments and joint housings — the structural skeleton that supports movement and carries loads.
Gearboxes, gear shafts, and reducer parts — components that slow down motor speed and increase torque.
End-effector components such as grippers, flanges, and vacuum mounts — the "hands" that grab, lift, and assemble objects.
Base plates, brackets, and mounting frames — the foundation that keeps the robot stable and aligned.
Sensor housings and camera brackets — protective shells that hold sensors in exact positions.
Couplings, shafts, and bearing seats — parts that transmit power and keep rotation smooth.
Each of these machined robot parts supports a specific function in motion control, load bearing, or sensing, and all of them benefit from the accuracy of this process.
Material selection directly affects the weight, strength, and durability of robotic components. The table below summarizes common materials used in robot parts manufacturing:
Material | Key Properties | Typical Applications in Robot Parts |
|---|---|---|
Aluminum 6061 | Lightweight, strong, easy to machine, low cost | Arm segments, base plates, brackets |
Aluminum 7075 | High strength, fatigue resistant | Load-bearing joints, end effectors |
Stainless steel 304/316 | Strong, corrosion resistant, food-safe | Shafts, fasteners, grippers |
Titanium alloy | Best strength-to-weight ratio, high cost | High-performance robotic arms |
POM and PEEK | Lightweight, self-lubricating plastics | Gears, bearing cages, insulating parts |
Why does material matter so much? A lighter arm moves faster and consumes less energy, which is why aluminum is the most common choice. A heavier load-bearing joint needs a stronger alloy such as 7075 or stainless steel. Parts that slide against each other benefit from self-lubricating plastics like POM, which reduce friction without additional oil. Choosing the right material together with a machining partner is one of the most important decisions in robot parts production.
Tolerance means the allowed amount of deviation in a dimension. No part can be made perfectly; the question is how much error is acceptable. A useful comparison is a door and its frame: if the gap is too small, the door sticks; if the gap is too large, the door rattles. The same logic applies to robot parts. A precision tolerance of ±0.01 mm is roughly one seventh of the thickness of a human hair. That is how fine modern CNC machining can go.
Tolerance Level | Typical Value | Application |
|---|---|---|
Precision | ±0.01 mm or tighter | Mating surfaces, shafts, sealing areas |
Standard | ±0.05 mm | Structural parts, brackets |
General | ±0.1 mm | Non-critical housings, covers |
Surface finish describes how smooth a surface is. It is measured by a value called Ra: the lower the Ra, the smoother the surface. You can imagine it like sandpaper — fine sandpaper has a low roughness, while coarse sandpaper has a high roughness. For robot parts, surface finish is usually Ra 0.8 μm to Ra 3.2 μm, with Ra 0.4 μm or better for sealing and sliding surfaces. A qualified machining service always documents these values for every batch.
Producing reliable robot parts follows a structured process:
Design and programming — engineers convert the 3D model into CAM programs and simulate the tool paths to avoid collisions before any metal is cut.
Material preparation — the correct raw material is selected, inspected, and cut to size.
Setup and fixturing — the workpiece is clamped precisely; improper clamping is a common cause of distortion.
Machining operations — turning, milling, drilling, and tapping remove material step by step to reach the required shape.
Quality inspection — coordinate measuring machines verify critical dimensions and tolerances against the drawing.
Surface treatment and finishing — anodizing, sandblasting, or coating improves durability, wear resistance, and appearance.
Every step is recorded so that the final machined robot parts are traceable and consistent across all batches.
Selecting the right supplier is as important as the design itself. Consider the following points when evaluating a machining partner:
Confirm the equipment — five-axis CNC machines and CMM inspection tools indicate production capability.
Check quality management — certifications such as ISO 9001 show a systematic quality system.
Ask for design feedback — a professional team should review your drawing and suggest improvements before production begins.
Request sample parts — machining a sample before volume production lets you verify quality with your own eyes.
Evaluate communication — a responsive engineering team saves time during the entire project.
At Minghao, we are dedicated to precision CNC machining for robotic components. Our engineers combine advanced CNC equipment, strict quality control, and years of industry experience to deliver reliable robot parts for automation projects around the world. If you are developing a new robot or upgrading an existing machine, contact us and let our team support your success.
The information provided in this article is for general reference only. Material properties, tolerance values, and process details may vary depending on specific applications, equipment, and standards. Always consult qualified engineers before making production or procurement decisions. Minghao shall not be held liable for any loss or damage resulting from the use of the information contained in this article.
