CNC turning plays a crucial role in modern manufacturing, especially for industries that demand precision. But just how accurate is CNC turning? From aerospace to medical devices, accuracy is paramount. In this post, we’ll explore how CNC turning achieves exceptional precision and what factors influence its accuracy.

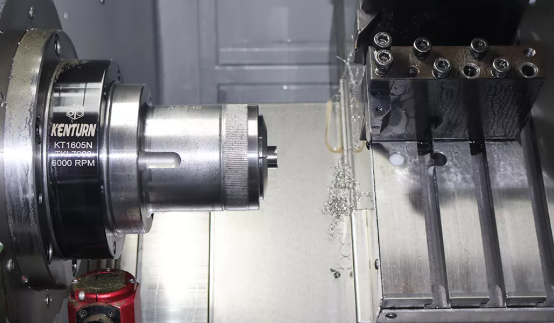

CNC turning is a manufacturing process used to shape materials into cylindrical parts. The material is secured in a machine, typically a lathe, which rotates it while a cutting tool removes material to create the desired shape. This method is widely used to produce precise parts like shafts, bushings, and fittings.
Unlike other processes like milling, where the workpiece stays still, CNC turning involves rotating the material. This rotation allows for high accuracy, especially for cylindrical parts. In milling, the cutting tool moves around the stationary part, creating more complex shapes like slots or holes.
Equipment | Description |
Lathes | The main machine used in CNC turning, rotating the workpiece. |
Cutting Tools | Sharp tools that remove material from the rotating workpiece to shape it. |
Workpieces | Raw materials, often in cylindrical form, held in place by the lathe chuck. |
CNC, or Computer Numerical Control, directs the machine with high precision. The machine follows a set of programmed instructions, ensuring each cut is exact. This eliminates human error, increasing repeatability and overall accuracy. CNC turning systems can work with minimal deviation, ensuring that each part meets the required specifications.
Accuracy is critical in CNC turning because it ensures that parts meet specific requirements, especially in industries like aerospace, automotive, and medical devices. Without precise measurements, even small errors can lead to part failure or improper fit, which can be costly.
Precision refers to the consistency of a part’s measurements. If you make several parts, precision ensures they are identical.
Accuracy refers to how close a part’s measurements are to the desired specification. A part can be precise (consistent) but not accurate (correct size), or accurate but not precise.
Dimensional tolerance is the allowable deviation from the target measurement. It defines the limits within which a part’s dimensions can vary while still being acceptable. In CNC turning, tighter tolerances mean higher accuracy. For example, tolerances might range from ±0.01 mm to ±0.0001 mm, depending on the part and its use.
Tolerances define the acceptable range of variation in a part’s dimensions. In CNC turning, these are the limits within which a part can differ from its intended size while still being usable. Tolerances are crucial because they ensure that parts fit together correctly and function as designed. Small changes in size can have significant effects on performance.
There are different tolerance levels based on the complexity and purpose of the part. Tolerances can range from general to high precision, depending on the application.
General Tolerances: Typically range from ±0.01 mm to ±0.05 mm. These are common in everyday parts where tight accuracy is not as critical.
High-Precision Tolerances: Can range from ±0.002 mm to ±0.005 mm. These are necessary for critical applications where even small deviations can cause failure.
Different industries require varying tolerance standards:
Aerospace: Parts like engine shafts and bushings often require tolerances as tight as ±0.002 mm to ±0.005 mm.
Automotive: Parts like pistons or gears may have tolerances around ±0.01 mm to ±0.02 mm.
Medical Devices: Surgical tools and implants usually require very tight tolerances, often within ±0.001 inches, due to their critical function.
Tolerances help ensure that parts are manufactured to the exact specifications needed for each application.
CNC turning can achieve extremely high precision, depending on the machine and process. In most cases, CNC turning can deliver tolerances as tight as ±0.005 mm, ensuring a perfect fit for many industrial applications.
Standard CNC Turning: Tolerances can range from ±0.01 mm to ±0.05 mm for general applications.
High-Precision CNC Turning: High-end machines can achieve tolerances as tight as ±0.002 mm, or even tighter, such as ±0.00008 inch (±0.002 mm).
The accuracy of CNC turning is influenced by several factors:
Machine Quality: The type of CNC lathe plays a significant role in achieving tight tolerances. Higher-end machines provide better results.
Tool Condition: Well-maintained tools ensure cleaner, more accurate cuts. Dull tools can lead to deviations in part dimensions.
Material Type: Different materials behave differently during machining. Harder materials may require slower cutting speeds to maintain accuracy.
Cutting Speeds: Faster cutting speeds may affect precision, especially with tougher materials. Slower speeds can ensure better accuracy.
By managing these factors carefully, CNC turning can achieve remarkable accuracy for critical components.
Achieving high precision in CNC turning is not just about the machine itself—it’s also about the environment and the tools used. Several factors influence how accurate the final product will be.
The quality of the CNC lathe significantly impacts its ability to achieve tight tolerances. High-end machines are designed to minimize errors and vibrations, ensuring more consistent cuts. Cheaper machines may have mechanical issues that affect the precision of each part.
Sharp, well-maintained cutting tools are crucial for achieving accurate dimensions. Dull or worn-out tools can cause deviations, leading to errors in part dimensions. Regular tool maintenance ensures cleaner cuts and better precision.
Different materials react differently during machining. Metals like steel may require slower cutting speeds for precision, while softer materials like plastics are easier to cut but may require more careful handling to avoid surface imperfections. The material’s hardness and machinability affect how smoothly the CNC machine operates.
Temperature fluctuations during machining can cause parts to expand or contract, affecting accuracy. Even slight changes in temperature can lead to dimensional errors. Maintaining a consistent temperature in the workshop or using cooling systems can help minimize this issue.
Proper setup and calibration are essential for achieving the desired accuracy. If the machine is not properly aligned, or if the tool is not set correctly, the resulting part may be outside of tolerance. Regular machine checks and calibration are critical for ensuring consistent results.
CNC turning must meet specific precision standards depending on the industry. These standards ensure that parts are made to exact specifications and function as intended.
Different industries have varying precision requirements based on the critical nature of the parts being produced.
Aerospace: Parts like engine components, turbine blades, and structural elements require extremely tight tolerances. Precision is typically within ±0.002 mm or tighter.
Medical Devices: Surgical tools, implants, and other medical components often need tolerances as tight as ±0.001 inches to ensure patient safety.
Automotive: While slightly less stringent, automotive parts such as gears and pistons still require tight tolerances, usually within ±0.01 mm.
International Organization for Standardization (ISO) has established tolerance classes to define the accuracy levels of machining:
IT6: Suitable for general mechanical components requiring moderate precision.
IT7: For parts where normal accuracy is sufficient, typically used in mass production.
IT8: Lower tolerance, used for rougher parts where high precision is not necessary.
For aerospace and other high-precision applications, tolerances like IT5 or tighter are common, ensuring the best possible fit and function.
CNC turning accuracy is measured using several key factors. Engineers rely on precise measurements to ensure parts meet exact specifications.
Dimensional accuracy refers to how closely a part matches its intended dimensions. Engineers specify allowable deviations, known as tolerances, to ensure the part fits its purpose. For example, a tolerance of ±0.01 mm means the part’s actual size can differ by up to 0.01 mm from the intended measurement but still be acceptable.
Surface roughness, or finish, describes the texture of a part’s surface. It is measured using Ra (Roughness Average), which indicates the average height of surface peaks and valleys. CNC turning can achieve extremely smooth surfaces, with Ra values as low as 0.04 μm, ensuring that parts function well and have an attractive finish.
For rotating parts, maintaining roundness and concentricity is critical. Roundness ensures the part is perfectly circular, while concentricity means the center of the part remains consistent. CNC turning excels in both, ensuring tight tolerances and smooth operation in parts like shafts and bearings.
Repeatability is the ability of CNC machines to produce identical parts over multiple production runs. CNC systems are designed to ensure consistent results, maintaining accuracy from the first to the last part. Feedback systems and real-time adjustments help minimize deviations, making CNC turning ideal for high-volume manufacturing.
Maximizing accuracy in CNC turning requires attention to several key factors. Implementing best practices can ensure parts meet exact specifications.
Routine maintenance and calibration are essential for maintaining precision. Keeping the machine in good working order prevents mechanical issues and ensures consistent performance. Regular checks and adjustments help minimize errors caused by wear and tear.
Choosing the right tools for each job is critical for accuracy. High-quality, sharp tools produce smoother cuts and more precise parts. Regular tool inspection and maintenance also prevent tool wear, which can lead to dimensional inaccuracies.
Temperature and humidity fluctuations can impact CNC turning accuracy. To maintain stable conditions, ensure the workshop is climate-controlled. Even small temperature changes can cause material expansion or contraction, affecting precision.
Advanced CNC software programs the machine with high precision. Modern software can calculate the best cutting paths and adjust in real-time to reduce errors. By using software to control the cutting process, you can improve overall accuracy and efficiency.
By following these practices, you can enhance CNC turning accuracy and achieve high-quality, consistent results.
1. What is the typical accuracy of CNC turning?
CNC turning typically achieves tolerances of ±0.01 mm to ±0.05 mm, with high-precision machines reaching tolerances as tight as ±0.002 mm or ±0.00008 inches.
2. How does CNC turning compare to manual turning in accuracy?
CNC turning outperforms manual turning by eliminating human error, providing repeatable and consistent results with higher precision.
3. What factors affect the accuracy of CNC turning?
Factors such as machine quality, tool condition, material properties, thermal expansion, and proper calibration play a crucial role in accuracy.
4. Can CNC turning achieve mirror-like surface finishes?
Yes, CNC turning can achieve surface roughness as low as Ra 0.04 μm, providing smooth, high-quality finishes.
5. What are dimensional tolerances in CNC turning?
Dimensional tolerances define the allowable deviation from the target dimensions, ensuring parts fit within specified ranges of precision.
CNC turning plays a crucial role in modern manufacturing by offering high precision. Accuracy is influenced by factors like machine quality, tooling, and material properties. With continuous advancements in CNC technology, even tighter tolerances are achievable. For industries requiring high-precision components, CNC turning is an ideal choice.Discover the precision and efficiency of CNC turning – visit our website to learn how we can help you create high-quality, accurate components for your industry.
