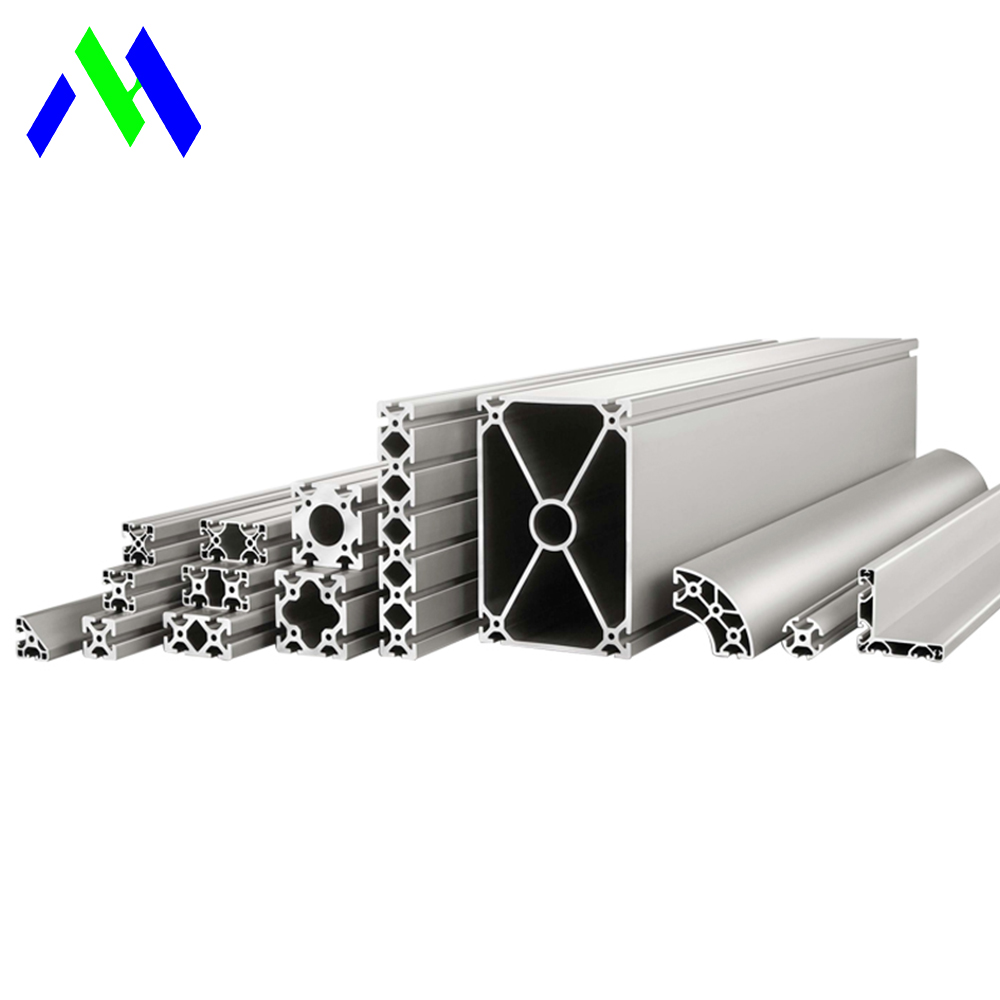

Our 6063 T5 Aluminum Extrusion Folding Frame Profiles are engineered to deliver a perfect balance of strength, versatility, and cost-effectiveness for modern structural Applications. Crafted from 6063-T5 aluminum alloy—a heat-treated material renowned for its medium strength, exceptional formability, and excellent weldability—these profiles address the critical need for lightweight yet durable solutions in dynamic industries. The innovative folding design integrates precision-engineered hinges and locking mechanisms, ensuring tool-free assembly and disassembly in under 10 minutes for most configurations. This modularity makes them ideal for temporary structures, exhibition booths, and adjustable industrial frameworks. With a naturally smooth surface finish (Ra ≤0.8 μm) and inherent corrosion resistance, they outperform traditional steel frames in outdoor and high-moisture environments while reducing transportation costs by 30% due to their lightweight nature.
Lightweight & High Strength
The 6063-T5 alloy achieves a tensile strength of 160 MPa and a yield strength of 110 MPa, with a density of just 2.7 g/cm³—30% lighter than carbon steel alternatives. This strength-to-weight ratio enables Applications like portable staging and modular shelving that require both durability and mobility .
Superior Formability
Unlike the fully heat-treated T6 temper, T5’s air-cooled aging process retains 8% minimum elongation, allowing for complex bending (minimum radius 2× material thickness) and punching without cracking. This formability supports custom cross-sectional designs, from standard rectangles to specialized asymmetrical profiles .
Enhanced Corrosion Resistance
A natural oxide layer is further reinforced through optional anodizing (12–15 μm thickness) or powder coating, achieving 96-hour salt spray resistance. This makes the profiles suitable for outdoor Applications like garden structures and construction scaffolding components .
Customizable Surface Finishes
Beyond functional treatments, we offer decorative options including fluorocarbon spraying (for UV resistance), electrophoretic coating (for uniform color), and wood grain transfer printing—all compliant with GB/T 3190 standards for adhesion and weatherability .
Modular & Cost-Efficient Design
The folding mechanism reduces on-site installation time by 40% compared to welded frames. Interchangeable components support reconfiguration, extending product lifespan and reducing waste—ideal for rental equipment and seasonal displays .
Architecture: Curtain wall subframes, sunshade systems, and removable partition walls.
Automotive: Lightweight cargo racks, trailer body frameworks, and electric vehicle charging station structures.
Industrial: Adjustable workstations, machine guards, and material handling racks.
Consumer Goods: Foldable camping furniture, trade show displays, and home storage systems.
Property | Value |
Alloy | 6063-T5 |
Tensile Strength | ≥160 MPa |
Yield Strength | ≥110 MPa |
Hardness (HW) | 8–15 |
Surface Treatment | Anodizing, Powder Coating |
Bend Radius | 2–3× material thickness |
Standard Length | 6–12 meters |
Can these profiles be welded?
Yes, 6063-T5 aluminum is compatible with TIG and MIG welding. Note that welding may reduce local strength by 15–20%, so post-weld heat treatment is recommended for load-bearing components .
What’s the maximum load capacity?
For standard 40×40 mm square profiles with 2 mm wall thickness, the vertical load capacity ranges from 500 kg (cantilevered) to 2,000 kg (supported at both ends). Custom cross-sections can be engineered for higher loads .
Are custom lengths available?
Yes, we provide precision cutting with ±0.2 mm tolerance for lengths between 0.5–12 meters, with no minimum order quantity for standard profiles.
How long does the anodized finish last?
The 12–15 μm anodized layer provides 10–15 years of outdoor protection in moderate climates, verified through accelerated aging tests simulating 1,500 hours of sunlight exposure .
Are these profiles environmentally friendly?
6063 aluminum is 100% recyclable with minimal energy loss during recycling, and our anodizing process uses non-toxic electrolytes compliant with RoHS standards.
