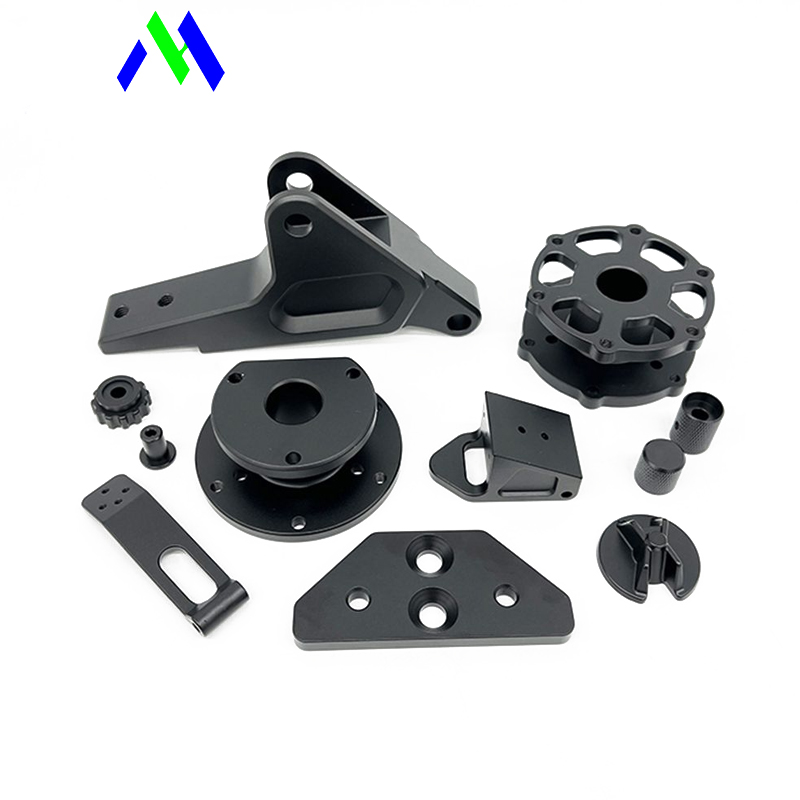

In modern precision component manufacturing, black anodizing stands as a high-performance electrochemical surface treatment for CNC machined aluminum substrates. Many mechanical engineers and process technicians frequently confuse black anodic coating with ferrous black oxide conversion coating; nevertheless, the two surface modification techniques possess disparate reaction mechanisms, and black oxide finish cannot be implemented on aluminum alloy substrates at all.
Conventional Type II anodizing already elevates the abrasion resistance and galvanic corrosion resistance of aluminum blanks. After professional black anodizing treatment, CNC machined aluminum components acquire two exclusive functional merits: high optical absorptivity and superior thermal emissivity. This all-in-one technical guide elaborates every core module of hard black anodizing, including standardized definition, electrochemical reaction principle, three mainstream pigment impregnation processes, performance merits, inherent process constraints, industrial application scenarios and complete standardized operation workflow for aluminum substrates.
Black anodizing is a derivative electrochemical coloring process built on conventional anodic oxidation technology for aluminum matrix. The whole procedure is split into two core phases: porous film formation and black pigment impregnation. It is necessary to strictly differentiate black anodic coating from ferrous black oxide conversion coating to avoid process misselection in component manufacturing.
Phase 1: Electrochemical anodization on aluminum workpieces to generate a semi-microporous Al₂O₃ ceramic substrate film;
Phase 2: Micropore filling via organic staining, inorganic pigment deposition or metal ion electrolytic coloring to form uniform black decorative & functional film.
Parameter Comparison | Black Anodizing (Aluminum Exclusive) | Black Oxide Coating (Ferrous Exclusive) |
|---|---|---|
Base Substrate | 5/6/7xxx Aluminum, Mg, Ti Alloy | Carbon Steel, Alloy Steel |
Film Thickness | 8–30 μm controllable anodic ceramic layer | 0.5–1 μm thin conversion film |
Adhesion Strength | Metallurgical bonding with substrate | Weak physical adsorption |
Core Performance | Wear resistance, heat radiation, light absorption | Mild anti-rust only, no abrasion resistance |
UV Stability | Dependent on dye classification | No color fading limitation |
Manufacturing facilities deploy black anodizing to realize dual-value upgrading for aluminum components, covering aesthetic standardization and mechanical property optimization simultaneously:
Aesthetic Requirement: Form uniform matte or glossy black anodic finish on aluminum enclosures, structural frames and architectural decorative extrusions;
Functional Requirement: Improve native anti-corrosion and scratch resistance of aluminum matrix, and add proprietary optical absorption & thermal emission properties unique to black anodic coating.
Three categories of lightweight structural alloys support stable black anodizing electrochemical coloring, among which wrought aluminum alloy serves as the mainstream substrate for mass component production:
Wrought Aluminum Alloys (Most Widely Applied)
Only 5xxx, 6xxx, 7xxx series wrought aluminum are eligible for homogeneous black anodic film formation. High-Cu, high-Si cast aluminum will trigger mottled color defects after staining. 6061, 6063 6-series aluminum are standard blanks for mass production of black anodized parts.
Magnesium Alloy
Specialized low-concentration anodizing electrolyte is required to complete magnesium black anodic finish, limited to lightweight aerospace secondary components.
Titanium Alloy
High-voltage hard anodizing equipment is adopted for titanium black film, mainly used for medical precision hardware.
Combining all inherent merits of standard anodizing and exclusive black film functional characteristics, black anodized aluminum is extensively adopted in high-end precision manufacturing sectors with stringent functional thresholds:
Aerospace & Satellite Thermal Control Components: The high-emissivity black anodic coating accelerates radiative heat dissipation into vacuum outer space;
Precision Optical Instrument Housings: Matte black anodic surface absorbs stray reflected light, eliminating optical crosstalk for lens holders and sensor casings;
Outdoor Architectural Extrusions: UV-stable black anodic finish delivers long-term color fastness and high abrasion resistance for building decorative profiles;
3C Thermal Management Hardware: Black anodizing elevates thermal radiation efficiency of heat sinks, power adapter shells and communication equipment enclosures.
Two mainstream base anodizing technologies are available for pre-treatment: decorative Type II sulfuric anodizing and wear-resistant Type III hard anodizing. Process engineers specify a minimum film thickness of 25 μm to guarantee long-term color retention of black anodic coating. Micropores generated on ceramic oxide film act as storage channels for black colorants; three mature industrial dyeing technologies are listed below with detailed process features:
• Organic Pigment Staining
Water-soluble organic black colorants are prepared into constant-temperature staining tanks. Aluminum workpieces are immersed for pigment permeation into semi-microporous anodic film. Black pigment requires longer impregnation duration than silver or grey light-color dyes.
Process Defect Risk: Organic dyed black anodized components suffer severe photobleaching under UV irradiation, prohibited for outdoor long-term service conditions.
• Inorganic Pigment Deposition
Cobalt sulfide inorganic pigments are water-insoluble and deposited inside film micropores, forming anodic finish with superior light fastness. This cost-effective process is widely applied for outdoor architectural black anodized extrusions.
• Metal Salt Electrolytic Coloring (High-Grade Proprietary Process)
After primary anodization, workpieces are transferred to secondary electrolytic tanks loaded with heavy metal salt electrolyte. The anodic ceramic film functions as cathode, matched with stainless steel inert electrodes. Nickel, cobalt, tin metal cations precipitate at micropore bottoms to form stable black inorganic layers.
This proprietary black anodizing technology achieves the highest UV resistance among three dyeing routes, standardized for aerospace and precision optical structural parts.
Unsealed micropores cause pigment leaching, so sealing treatment is a compulsory station for qualified black anodizing production lines. Two mainstream sealing methodologies:
Hydration Sealing: Micropores react with hot deionized water to generate Al₂O₃·H₂O hydrate to block pores completely; hydrate layer exhibits lower abrasion resistance than native Al₂O₃ ceramic film;
Chemical Sealing: Nickel acetate or dichromate sealing solution is utilized for rapid mass production of black anodized aluminum components.
Black anodizing inherits all mechanical merits of conventional anodic oxidation, and possesses three irreplaceable exclusive performance strengths unavailable for other aluminum surface finishing:
Elevated Thermal Emissivity
The compact black ceramic film drastically improves the thermal radiation coefficient of aluminum matrix, widely deployed for thermal control parts, new energy equipment housings and high-power heat sinks.
Zero Outgassing Performance Under Vacuum
Fully sealed black anodized blanks release negligible volatile organic compounds in vacuum environments, avoiding contamination of ultra-precise space instruments and vacuum optical testing fixtures.
Ultra-Long UV Color Fastness
Components colored via inorganic pigment or metal salt electrolytic black anodizing resist photobleaching for decades, suitable for outdoor communication hardware and long-life industrial structural parts.
Despite widespread industrial applicability, black anodizing has three unavoidable process constraints that mechanical designers must evaluate before mass production validation:
Thermal Cycling Microcracking Risk
The thermal expansion mismatch between aluminum substrate and rigid anodic ceramic film triggers surface microcracks under repeated high-low temperature cycling, gradually degrading the substrate’s galvanic corrosion resistance.
Restricted Compatible Aluminum Grades
Only 5xxx, 6xxx, 7xxx wrought aluminum alloys support homogeneous black anodic coating formation; high-impurity cast aluminum results in mottled black surface defects.
Photobleaching Risk of Organic Dye Film
Components processed with low-cost organic staining black anodizing will gradually fade under prolonged ultraviolet exposure.
Type II sulfuric anodizing remains the dominant base process for mass production of black anodized aluminum components. The standardized full production workflow is as follows:
Heavy Degreasing: Submerge aluminum blanks in alkaline degreaser to completely remove cutting fluid, oil contaminants and surface particulate impurities;
Primary DI Water Rinse: Eliminate residual alkaline cleaning agents on workpiece surface;
Alkaline Chemical Etching: Strip native thin natural oxide film on aluminum matrix;
Secondary DI Water Rinse: Remove etching residues to prevent uneven anodic film growth;

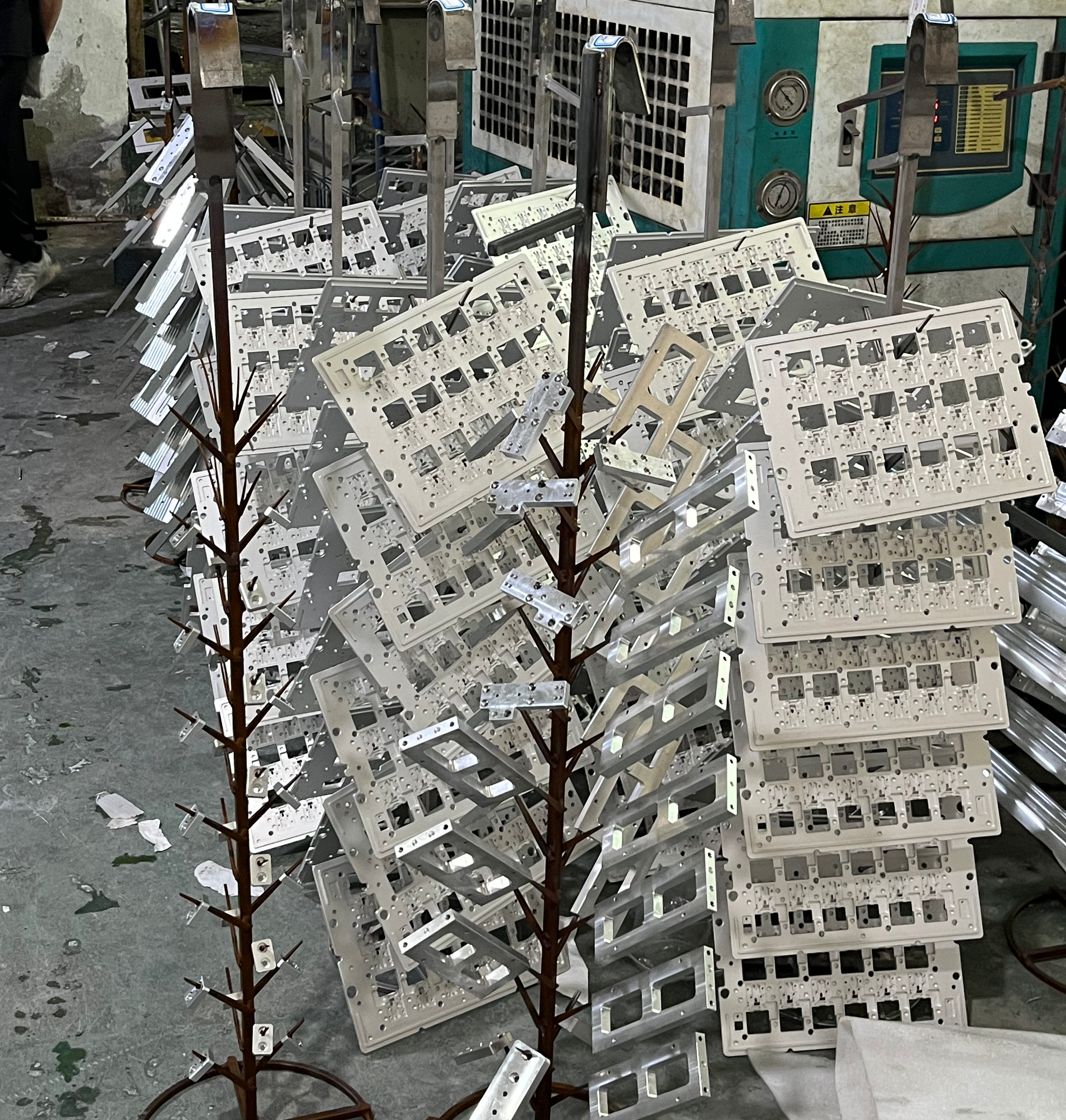

Sulfuric Acid Anodization: Mount workpieces on conductive fixtures, apply constant DC current to generate semi-microporous Al₂O₃ ceramic film;

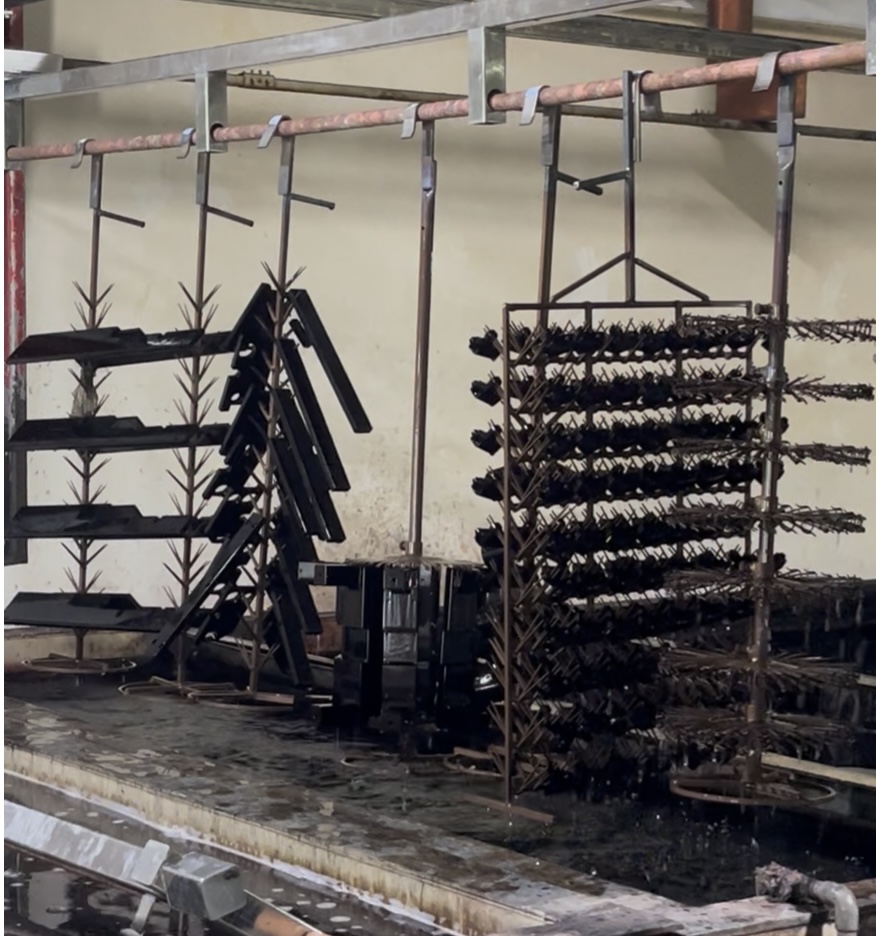

Post-Anodization Rinse & Black Dyeing: Clean anodized substrates then transfer to staining tanks. Metal salt electrolytic coloring is prioritized if clients require ultra-high UV stability of black anodic finish.
Complete production facilities and chemical consumables required for qualified black anodizing manufacturing lines:
Sulfuric acid electrolyte for primary anodic oxidation reaction
Acid-resistant polypropylene process tanks to hold corrosive electrolyte
Stainless steel inert cathode plates for electrolytic reaction
Regulatable DC power supply to control current density of anodization
Conductive fixture wires & customized clamping jigs for aluminum workpieces
Industrial alkaline degreaser for pre-treatment station
Specialized staining tanks matched with organic / inorganic / electrolytic black anodizing coloring routes
The service cycle of black anodic coating ranges from 10 to 20 years, determined by three core technical indicators: anodic film thickness, post-dye sealing integrity, and component service environmental conditions.
Dyeing Technology | Long-Term Color Stability | Typical Service Lifespan |
|---|---|---|
Metal Salt Electrolytic Black Anodizing | Zero photobleaching | 15–20 years |
Inorganic Pigment Deposition | Minor color change after 10 years outdoor exposure | 10–15 years |
Organic Pigment Staining | Obvious fading under long-term UV irradiation | 3–6 years (indoor only) |
Total manufacturing cycle of black anodizing is determined by target film thickness, selected coloring process and post-sealing technology:
Basic anodization growth rate: 2.5 μm film generated per 5 minutes of electrolysis. To reach the recommended minimum 25 μm film thickness for stable black anodic coating, the anodization station alone consumes approximately 60 minutes;
Dyeing station cycle: Maximum 20 minutes for full micropore pigment penetration;
Additional production duration must be reserved for multi-stage DI water rinsing and post-dye sealing stations in mass production.
Metallurgically, black anodized aluminum cannot generate rust. The definition of rust refers to flaky, destructive ferric oxide layers formed only on ferrous alloys.
The compact ceramic black anodic coating forms metallurgical bonding with aluminum matrix, isolating oxygen and moisture to block galvanic oxidation reactions of the substrate fundamentally.
This technical guide systematically interprets all core parameters of black anodizing, covering standardized definition, electrochemical reaction mechanism, three classified coloring technologies, industrial application scenarios, performance advantages, inherent process limitations and standardized mass production workflow. When mechanical designers select black anodic finish as the surface modification scheme for CNC machined aluminum substrates, they need to comprehensively evaluate alloy grade, UV exposure intensity, thermal cycling conditions and service environment to select the optimal dyeing route.
