We highly regard CNC (Computer Numerical Control) machine tools, which leverage automation technology to significantly simplify traditionally tedious and labor-intensive manufacturing processes such as cutting, drilling, and turning. CNC machining is precisely controlled by computers throughout the entire process, boasting machining accuracy far superior to manual operations and enabling the production of higher-quality industrial components. Currently, the mainstream CNC machine tools on the market are mainly divided into 3-axis and 5-axis types. This article will conduct a detailed comparison of their core differences, advantages and disadvantages, as well as respective application scenarios, to provide a reference for production and processing selection.
CNC (Computer Numerical Control) is a technology that realizes automated machining by controlling the movement trajectory of processing equipment through computer programming instructions. Most CNC machine tools can perform all operations of traditional manual processing equipment, with the tool path driven entirely by programming, which greatly improves precision. The quality of processed parts is far better than that of traditional equipment such as manual drill presses and lathes, making it a core processing method in modern manufacturing.
The cutting tools (milling cutters, drill bits, etc.) of 3-axis CNC machine tools (common types include CNC lathes, CNC milling machines, and CNC machining centers) can perform linear movements along the X-axis (left and right), Y-axis (front and back), and Z-axis (up and down), enabling precise positional movement in the horizontal direction (X-Y axis) and control of cutting depth in the vertical direction (Z-axis).
According to the characteristics of tool types and processing materials, such machine tools can complete processing procedures such as cutting and planing at specific depths. However, limited by their movement range and inability to automatically rotate workpieces, they are more suitable for processing parts with simple structures, regular shapes and low detail requirements, focusing on 2D and 2.5D part processing, and also applicable to small-batch production scenarios. With an affordable price point, they are an ideal choice for start-ups and small and medium-sized manufacturing enterprises.
Standard 3-axis CNC machine tools can perform a variety of basic processing procedures such as cutting, drilling and milling, and there are also specialized equipment such as 3-axis CNC lathes derived. However, limited by the 3-axis movement mode, they have obvious shortcomings in the complexity of part processing, and are core-adapted to workpieces with simple geometric structures and low design detail requirements. Although they can process 3D parts with clear structures and simple shapes, they cannot complete the processing of complex 3D structures and fine details.
CNC lathes
CNC milling machines
CNC machining centers
Such equipment is widely used in various industries such as automotive, aerospace, electronics and hardware, and is the main equipment for basic industrial processing.
Outstanding cost performance: The procurement cost of the equipment is much lower than that of 5-axis CNC machine tools, with a low initial investment cost;
Low operation threshold: The programming logic is simple, the training cost for operators is low, and it is easy to get started, highly adapting to the employment needs of small and medium-sized enterprises;
Low maintenance cost: The equipment has fewer moving parts, the daily maintenance operation is simple, the equipment wear and tear is smaller, and the later operation and maintenance investment is low;
Stable and reliable precision: It can meet the precision processing requirements of most industrial application scenarios and is fully compatible with the processing standards of basic components.
Limited machining capacity: Without the function of automatically rotating workpieces, it can only cut from a fixed angle, and is only suitable for parts with simple geometric structures, unable to process workpieces with complex undercuts and multi-surface features;
Relatively low machining efficiency: Processing complex parts requires multiple clamping and repositioning of workpieces, with tedious procedures and machining efficiency far lower than that of 5-axis machine tools.

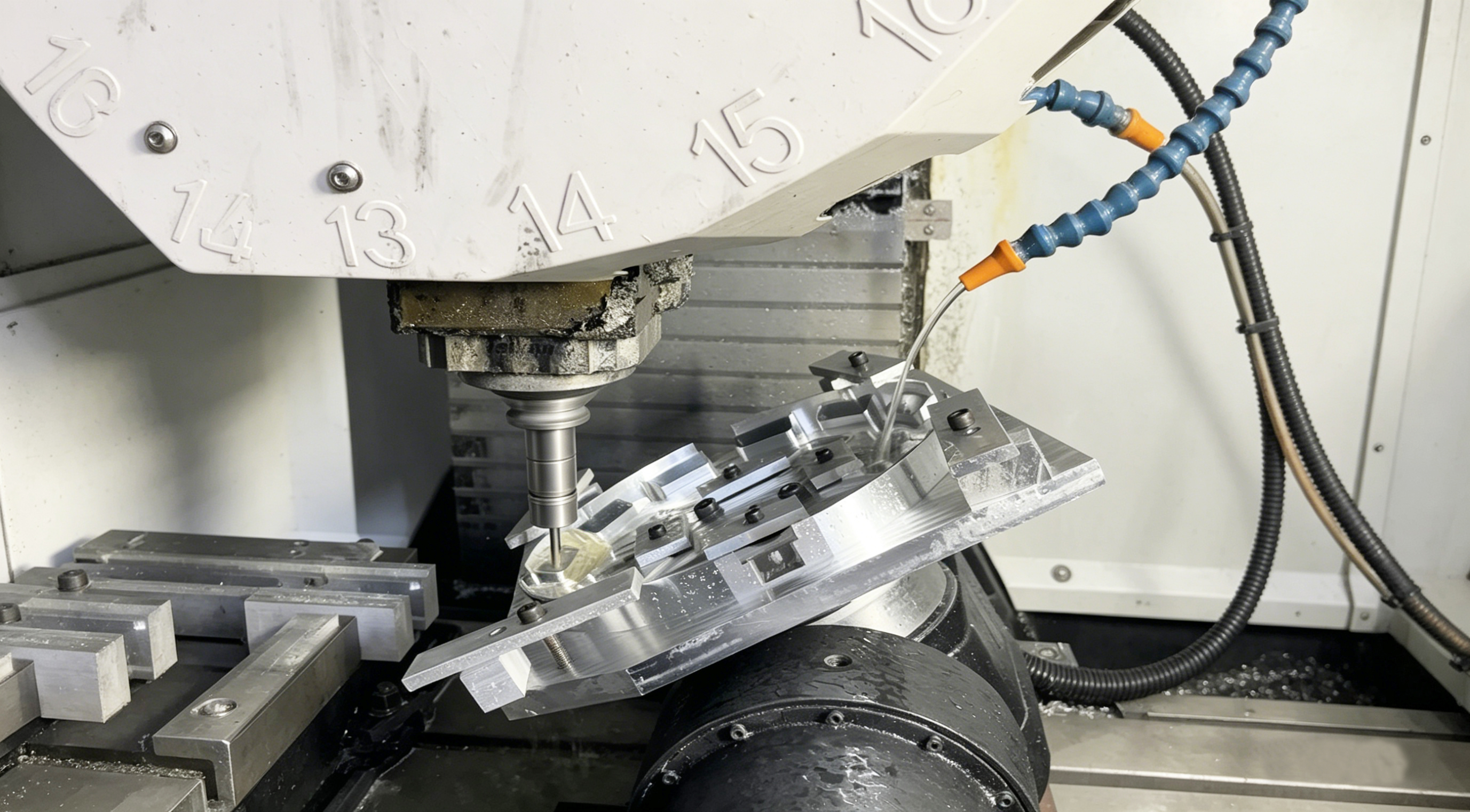

On the basis of the linear movements of the X, Y and Z axes, 5-axis CNC machine tools add two rotary axis movements of the A-axis and B-axis. The cutting tools can realize multi-angle rotary machining around the rotary axes, and some high-end models can also achieve 5-axis simultaneous control.
Relying on full-dimensional movement capabilities, 5-axis CNC machine tools can precisely process complex and precision components from any angle, easily realizing the processing of smooth curved surfaces, bevels and complex contours; at the same time, they support continuous milling processes, which greatly save processing time, and can automatically rotate workpieces without manual intervention throughout the process. Such high-end CNC milling equipment is the core equipment for the processing of precision and complex components.
5-Axis CNC can process workpieces with complex geometric structures requiring multi-angle and multi-curved surfaces. The 5-axis simultaneous machining of cutting tools can make the workpiece surface smoother and the dimensional accuracy higher; the continuous milling process can make the cutting tools closely fit the material curvature for processing, effectively reducing tool marks and step lines and improving the workpiece surface quality. Its processing range covers all types of complex and precision components, and it is the core support for high-end manufacturing.
Continuous 5-axis CNC machine tools
5-axis CNC milling machines
5-axis CNC engraving machines
Higher machining efficiency: It supports one-time forming processing of complex shapes, and the continuous milling process greatly improves production speed and reduces processing procedures;
Superior machining precision: 5-axis simultaneous control greatly improves the surface quality and dimensional accuracy of workpieces, meeting the requirements of high-end precision manufacturing;
Minimal manual intervention: Continuous milling eliminates the need for frequent tool changes and workpiece clamping, reducing manual operation costs and saving production working hours;
Strong versatility: It can be adapted to the processing of parts of various sizes and complex shapes, with a wide coverage of processing scenarios.
High equipment cost: The procurement price of machine tools is much higher than that of 3-axis equipment, ranging from tens of thousands of US dollars for basic models to more than 500,000 US dollars for high-end models, which is difficult for small and medium-sized enterprises to afford;
High professional requirements: The equipment has a complex structure, and operators and programmers need to receive professional and systematic training and have rich technical experience, resulting in high labor costs;
High maintenance requirements: The equipment has more moving parts and requires regular professional maintenance to ensure stable operation and avoid failures, leading to high later operation and maintenance costs;
Objective processing limitations: Although it can achieve almost arbitrary angle milling, the cutting tool length, processing material characteristics and machine tool stroke range will affect the actual processing angle and size; in addition, the more extreme the cutting angle, the worse the tool stability, which may affect the machining precision.
The core difference between the two types of machine tools lies in the number of tool movement axes, and this essential difference leads to significant differences in machining effect, efficiency, cost and other aspects. The specific comparison is as follows:
Comparison Dimension | 3-Axis CNC | 5-Axis CNC |
|---|---|---|
Tool Movement | Linear movement along X, Y and Z axes | Simultaneous movement along X, Y, Z axes plus A and B rotary axes |
Machining Efficiency | Good, suitable for batch processing of simple parts | Excellent, one-time forming of complex parts with higher speed |
Tool Change and Clamping | Multiple clamping and repositioning required for complex parts | Few tool changes, multi-angle processing achievable without repositioning |
Machining Capacity | Limited, unable to process complex shapes, undercuts and multi-surface features | Full-dimensional deep cutting available for complex shapes, undercuts and precision curved surfaces |
Machining Precision | Good, meeting basic precision processing requirements | Excellent, adapting to the precision standards of high-end precision manufacturing |
Operation Difficulty | Simple training, accessible with basic CNC programming skills | Requires professional training and mastery of advanced CAD/CAM programming technology |
Equipment Price | $25,000 - $50,000 | $80,000 - more than $500,000 |
Operation and Maintenance Cost | Low, with fewer moving parts and less wear | Relatively high, requiring regular professional maintenance and prone to wear |
Unit Cost | Lower, with high cost performance for basic part processing | Higher, but the unit cost can be diluted by high production efficiency for complex parts |
Application Scenarios | Simple parts (housings, panels, flat parts) in automotive, aerospace and electronics industries | High-end precision parts such as aero-engine components, medical implants and prosthetics, molds, impellers |
Motion control difference: This is the most essential difference between the two. The 3-axis only supports linear movement of the X, Y and Z axes with a fixed tool angle; the 5-axis can realize simultaneous movement of the X, Y, Z, A and B axes, and the tool and workpiece can be adjusted at multiple angles, greatly improving the machining flexibility;
Full-dimensional cost difference: The full-process costs of 3-axis machine tools such as procurement, programming, operation and maintenance, and labor are much lower than those of 5-axis machine tools, and the processing cost of a single basic part is also lower; although the comprehensive cost of 5-axis is high, the unit cost of complex parts can be diluted by improving efficiency;
Difference in complex shape machining capacity: 5-axis can directly perform full-dimensional deep cutting on workpieces without manual clamping adjustment, greatly improving the production efficiency of complex parts; while 3-axis requires repeated clamping and positioning of workpieces when processing complex structures, with tedious procedures and prone to precision errors.

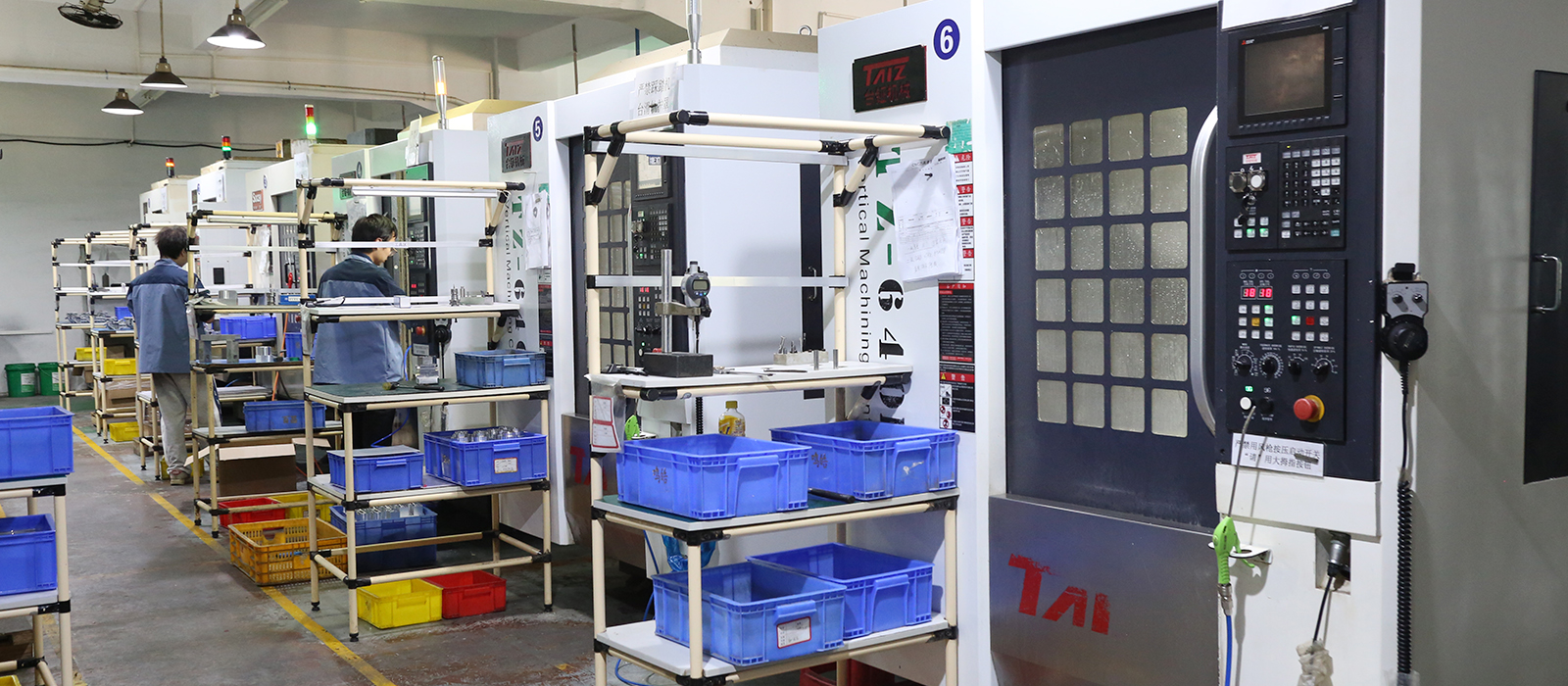

Deeply rooted in the manufacturing field, Minghao provides customers with a full range of manufacturing and processing services, covering CNC machining (3-axis/5-axis), 3D printing, injection molding, laser cutting and sheet metal processing and other categories, which can adapt to the processing needs and cost budgets of different customers. We welcome you to submit your part design drawings to us, and we will provide you with a detailed and accurate processing quotation as soon as possible after receiving your email, escorting your production and manufacturing.
