In high-precision manufacturing fields, especially in industries requiring tolerances of ±0.01mm, CNC precision machining has become an indispensable core process. From turbine blades in aerospace engines to medical implants in the healthcare sector, CNC technology is driving innovation across multiple industries. For example, in the aerospace sector, CNC precision machining enables manufacturers to precisely process complex turbine casings, which require high accuracy and surface quality. In medical devices, CNC technology ensures that implants fit perfectly, thereby improving patient health and quality of life.
Understanding the different types of CNC precision machining processes is crucial for industries aiming to maintain a competitive edge. By exploring the various techniques and methodologies, manufacturers can enhance product quality and operational efficiency. This article delves into the types, applications, and future trends of CNC machining.
CNC precision machining refers to the automated control of machining tools via a computer. The process starts with a solid block of material and removes sections to form the desired part, achieving unparalleled precision and consistency. CNC machining leverages computer technology to perform complex operations with high repeatability, which is critical in industries where even small deviations can lead to significant performance issues.
The machinery interprets designs from Computer-Aided Design (CAD) or Computer-Aided Manufacturing (CAM) files and translates them into precise movements. This precision is essential for producing components where even minute deviations could impact functionality.

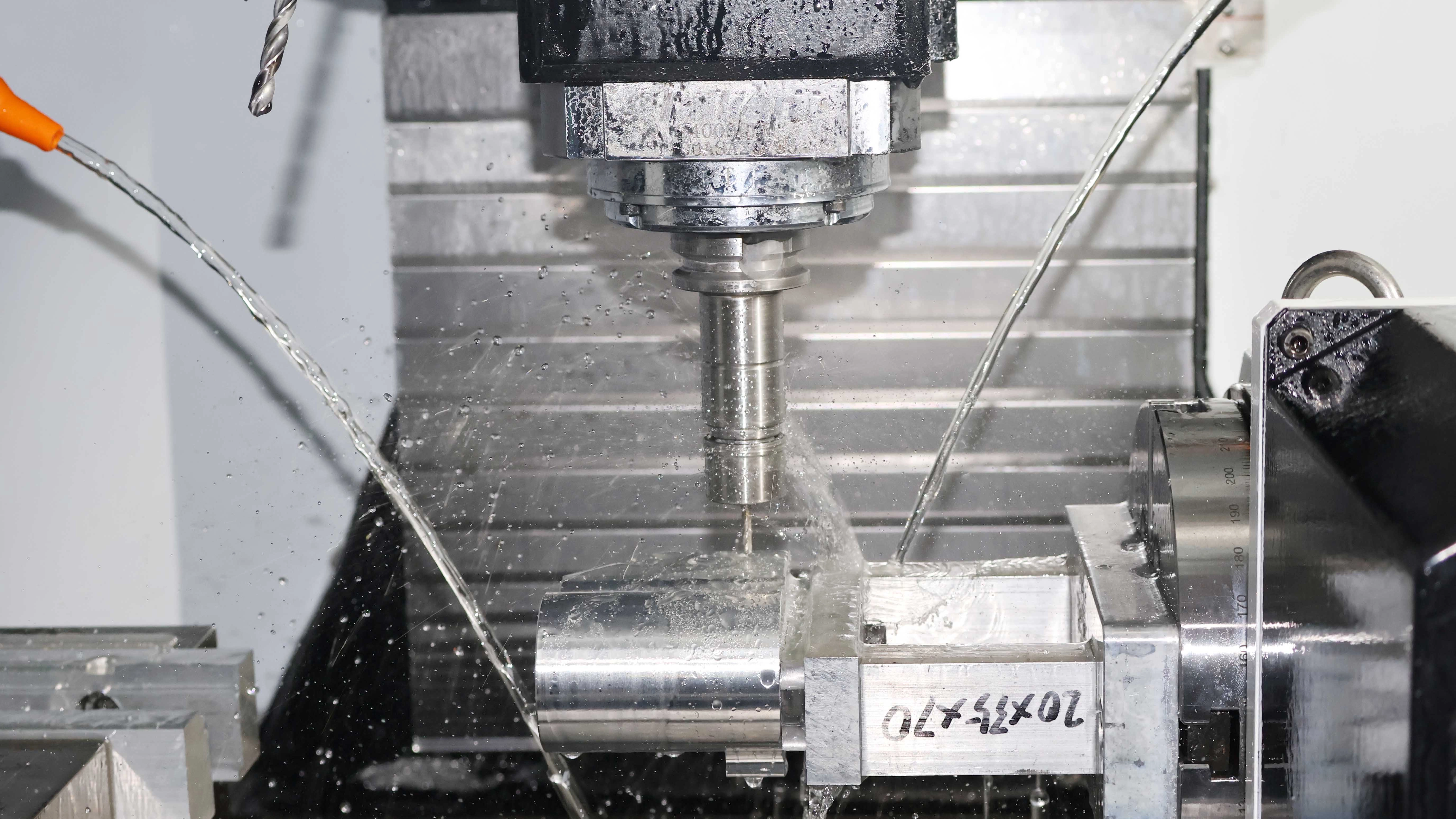

CNC milling uses rotating cutting tools to remove material from a workpiece, allowing for the creation of complex shapes and geometries. In the aerospace industry, for example, turbine casings often require 5-axis milling, enabling complex surface cutting in a single setup, improving both speed and precision.
CNC milling’s advantages include high precision, flexible design, and the ability to process parts with intricate geometries. Industries such as aerospace, automotive, and electronics heavily rely on CNC milling for producing critical components. Advanced 5-axis milling allows for the machining of parts in a single setup, reducing production time and improving accuracy.
CNC turning is a machining process in which the workpiece rotates while a cutting tool is applied to remove material. It is ideal for producing parts with rotational symmetry, such as shafts, bolts, and nuts. CNC lathes are commonly used for turning operations, offering high precision and repeatability.
The benefits of CNC turning include the ability to produce smooth surfaces and intricate details on cylindrical parts. The process is essential in industries like medical devices, where precision components are crucial for device functionality.
Multi-axis machining allows for the movement of tools or the workpiece along multiple axes to achieve complex geometries. While traditional CNC machines operate along three axes (X, Y, and Z), multi-axis machines can move along four or more axes, including rotational movements around the X and Y axes.
For example, 4-axis machining is ideal for operations like drilling on cylindrical surfaces (e.g., flange plates), while 5-axis machining allows for simultaneous cutting of tilted surfaces, such as those on impeller blades. This technology significantly improves machining efficiency, especially for components with intricate shapes, which is particularly beneficial in industries such as aerospace and automotive.
| Machining Type | Suitable Part Features | Typical Tolerance | Main Equipment |
|---|---|---|---|
| CNC Milling | Complex 3D Profiles | ±0.01mm | Vertical/Horizontal Machining Centers |
| CNC Turning | Rotational Parts | ±0.005mm | CNC Lathes |
| Multi-Axis Machining | Complex Geometries (e.g., impeller blades) | ±0.01mm | 4-Axis/5-Axis CNC Machines |
CNC machining is versatile in terms of material handling. Common materials include metals such as aluminum, steel, titanium, and brass, each offering varying properties like strength, weight, and corrosion resistance, making them suitable for different applications. Plastics such as ABS, polycarbonate, and nylon are also commonly machined, appreciated for their lightweight properties and resistance to chemicals and impact.
Advanced composites and high-performance polymers are increasingly used in CNC machining, opening up new applications across various industries.
The high precision and efficiency offered by CNC machining make it indispensable across various industries. In aerospace, CNC-machined parts, such as turbine blades and engine components, must meet stringent safety and performance standards. The automotive industry uses CNC machining to produce engine parts, transmission components, and intricate interior components.
The medical field relies on CNC machining for devices like implants, surgical instruments, and diagnostic equipment, where precision is critical to functionality. Electronics and telecommunications also benefit from CNC machining in the production of components like enclosures, connectors, and heat sinks, which require high precision and small tolerances.
CNC precision machining offers several key advantages, including high precision and repeatability. Once a design is programmed, CNC machines can produce identical parts consistently, reducing variability and waste. Efficiency is another significant benefit, as CNC machines can operate continuously with minimal supervision, increasing production rates.
Flexibility in design changes is also a major advantage, allowing for easy modifications to programming. This adaptability is crucial in industries requiring rapid prototyping and iterative development.
Despite its many advantages, CNC precision machining faces challenges, such as the high initial investment costs for machinery and software. Additionally, skilled personnel are required to program and maintain the equipment.
Manufacturers can mitigate these challenges by partnering with experienced CNC machining service providers. Companies like Dong Guan Ming Hao Precision Molding Technology Co., Ltd. specialize in delivering high-quality machining services, offering expertise and advanced technology to meet complex manufacturing needs.
Technological advancements, such as the integration of artificial intelligence (AI) and machine learning, are further enhancing CNC machining capabilities. Predictive maintenance and real-time monitoring are improving efficiency and reducing downtime.
Selecting the right CNC machining partner is crucial to ensuring product quality and meeting production deadlines. Key factors to consider include technological capabilities, quality assurance processes, and customer service.
Dong Guan Ming Hao Precision Molding Technology Co., Ltd. exemplifies excellence in CNC precision machining. With a professional technical team, advanced equipment, and stringent quality control systems, they offer comprehensive solutions from design to delivery.
Their commitment to customer satisfaction is demonstrated through dedicated sales personnel, providing timely technical support and after-sales service. By leveraging their expertise, manufacturers can achieve high-quality products while optimizing costs and efficiency.
CNC precision machining is a vital technology in modern manufacturing, enabling the production of complex, high-precision components across multiple industries. Understanding the different types of CNC machining processes is key to leveraging their benefits and overcoming associated challenges.
As technology continues to evolve, CNC machining capabilities and applications will expand. Collaborating with experienced partners, like Dong Guan Ming Hao Precision Molding Technology Co., Ltd., provides access to cutting-edge technology and expertise in CNC precision machining, driving innovation and success in manufacturing endeavors.
